Ultra-wide 4:1 input voltage range
High efficiency up to 90%
No-load power consumption as low as 0.15W
I/O isolation test voltage1.5k VDC
Input under-voltage protection, output short-circuit, over-voltage, over-current protection
Operating ambient temperature range: -40 to +85
CISPR32/EN55032 CLASS A EMI compliant without external components
Six-sided metal shielded package
Input reverse polarity protection available with Chassis (A2S) or 35mm DIN-Rail mounting (A4S) version
IEC60950, UL60950, EN60950 approved
Meets EN50155 railway standard

I/p Voltage range:9-36V
Nominal voltage:24V
O/p voltage:12V
O/p current:1667/0mA
wattage:20W
Isolation:1.5kvdc
Package: DIP

1 x URB2412LD-20WR3 Mornsun 24V to 12V DC-DC Converter 20W Power Supply Module - Horizontal DIP Package


Brand/Manufacturer	Mornsun
Country Of Origin	China
Packer / Importer Address	Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP	Rs. 1827.82 (Inclusive of all Taxes)

* Product Images are shown for illustrative purposes only and may differ from actual product.

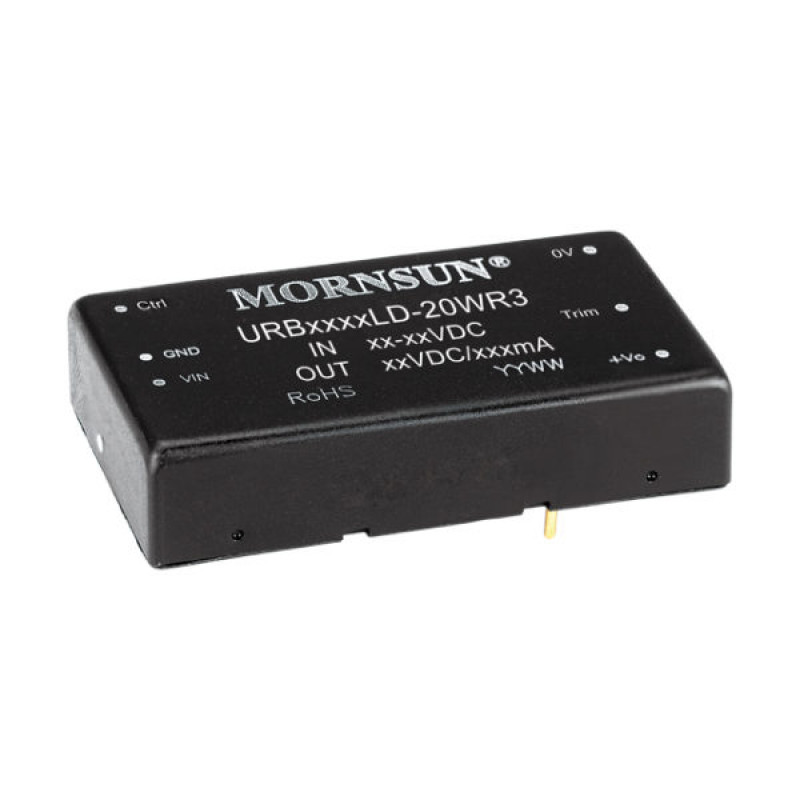

URB2412LD-20WR3 Mornsun 24V to 12V DC-DC Converter 20W Power Supply Module - Horizontal DIP Package
