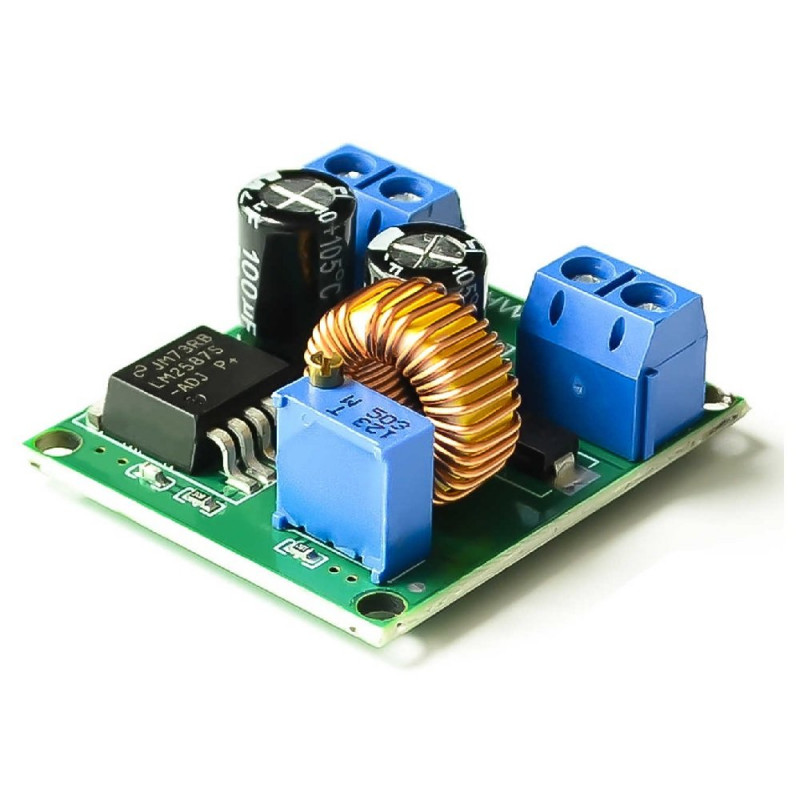

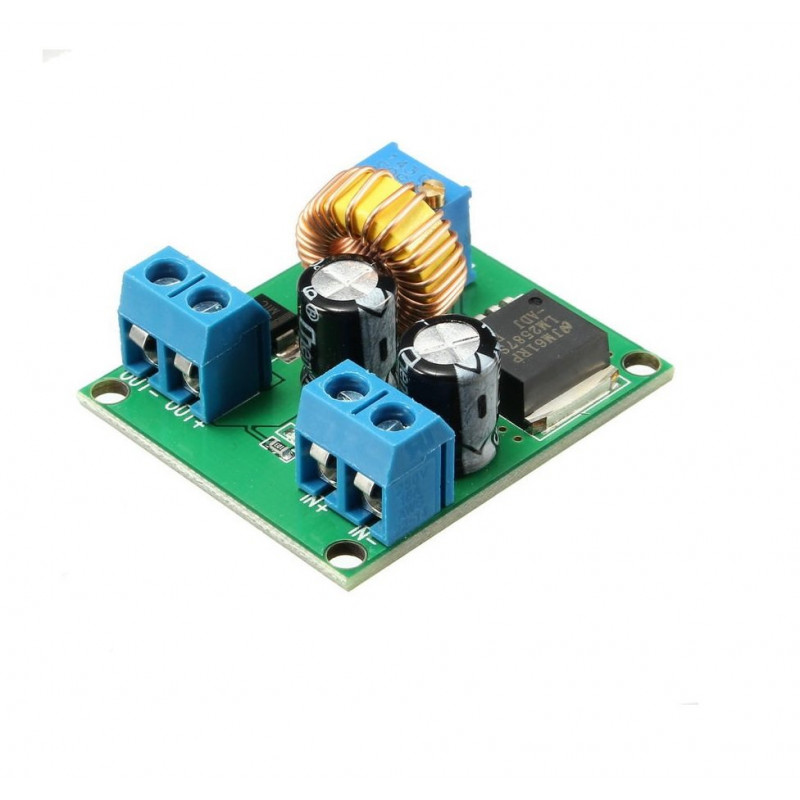

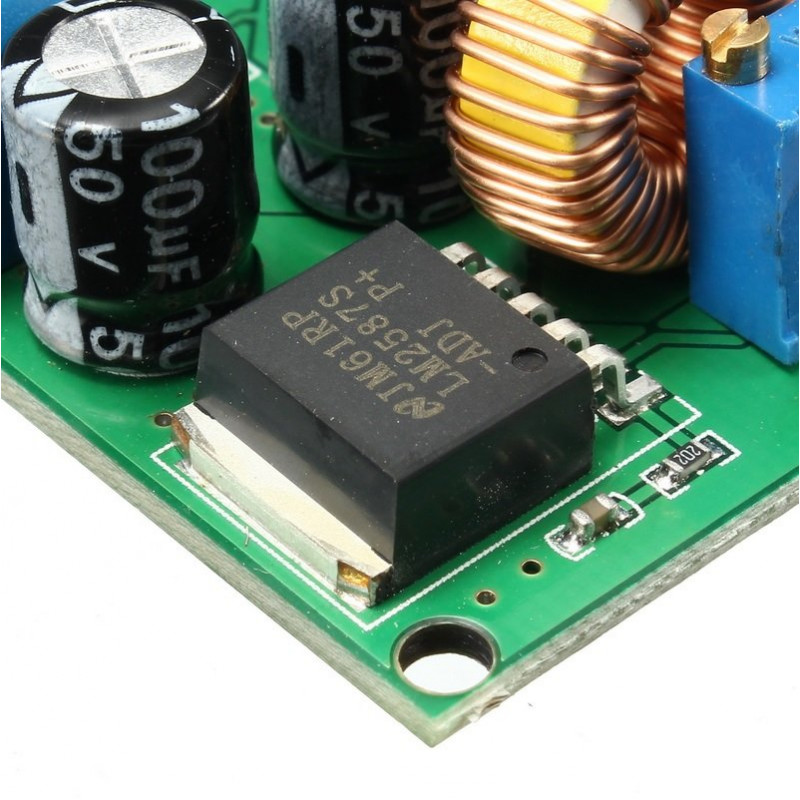

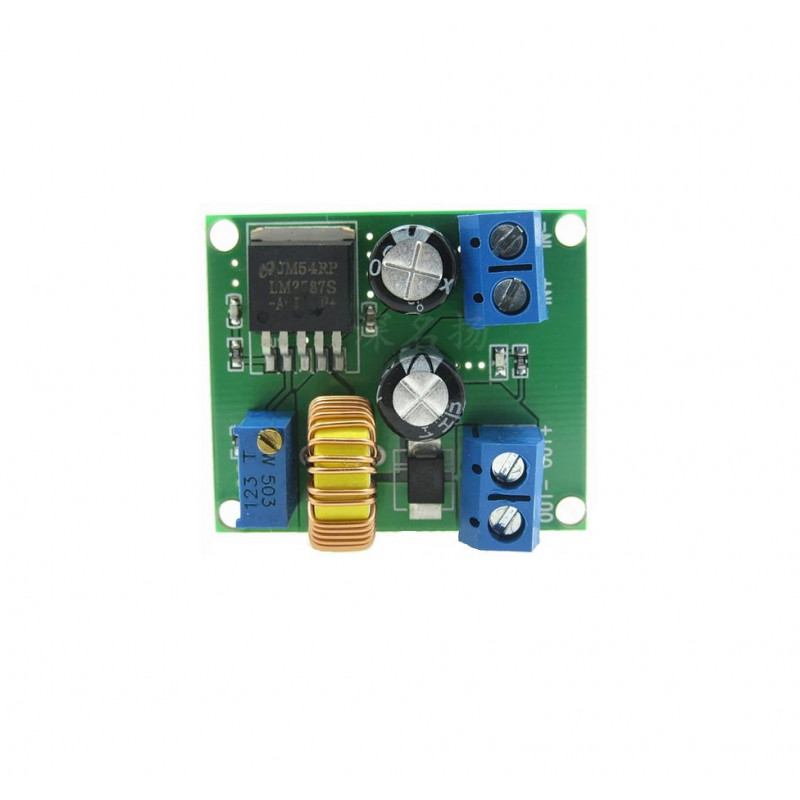

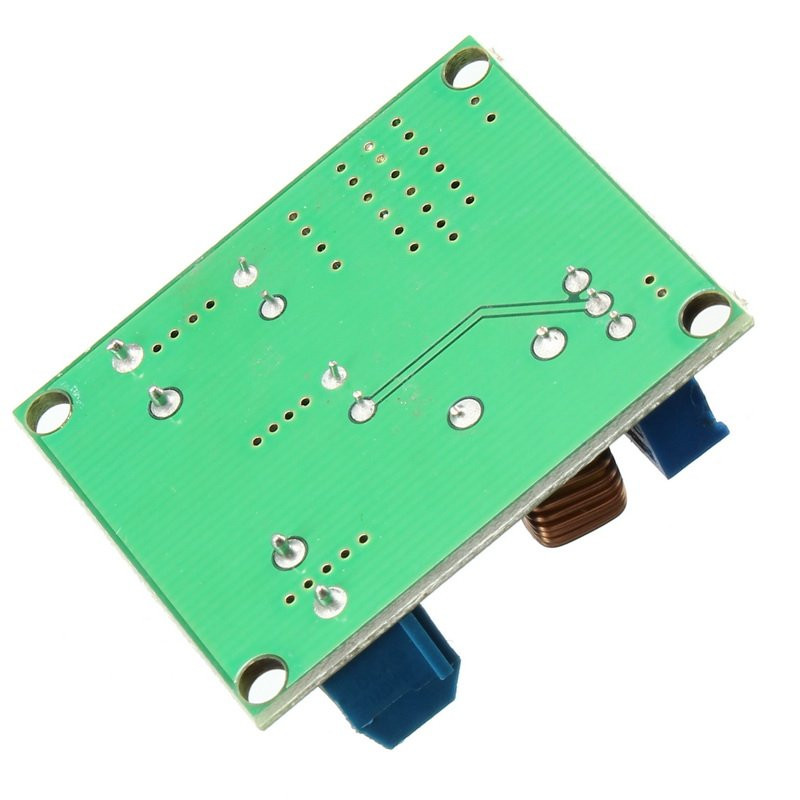

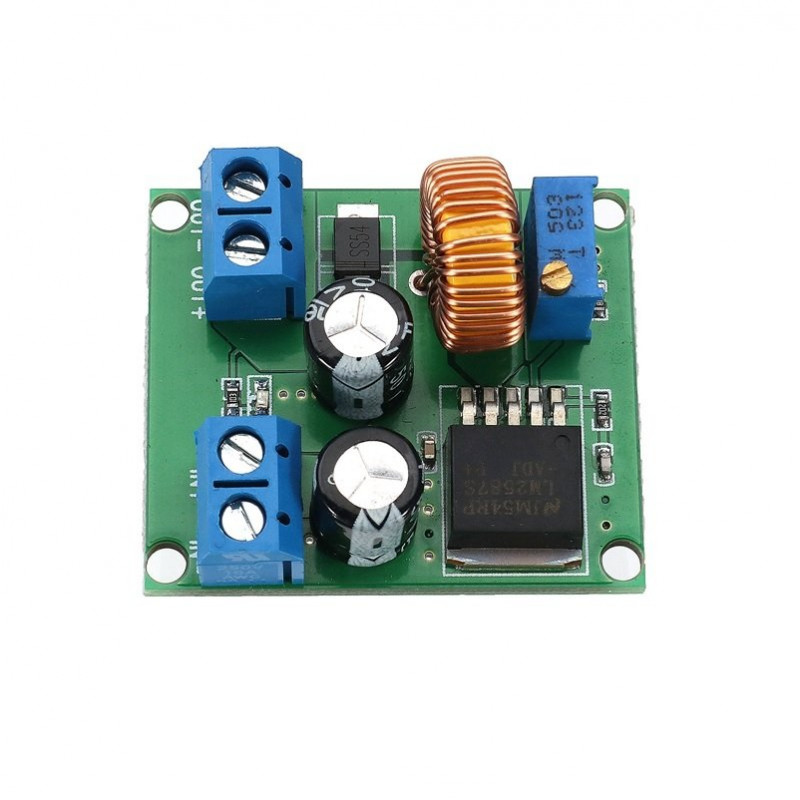

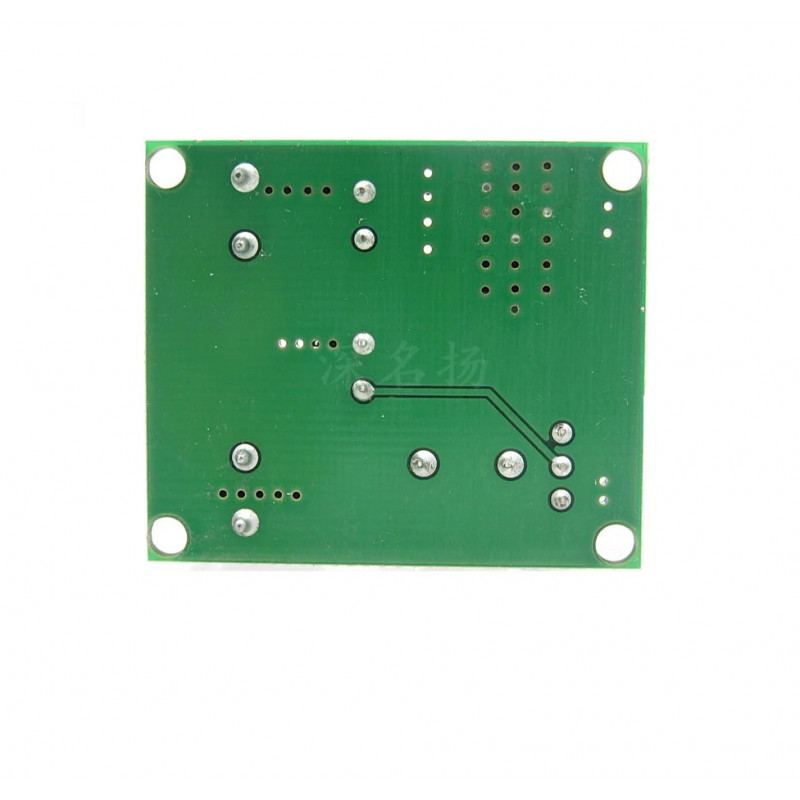

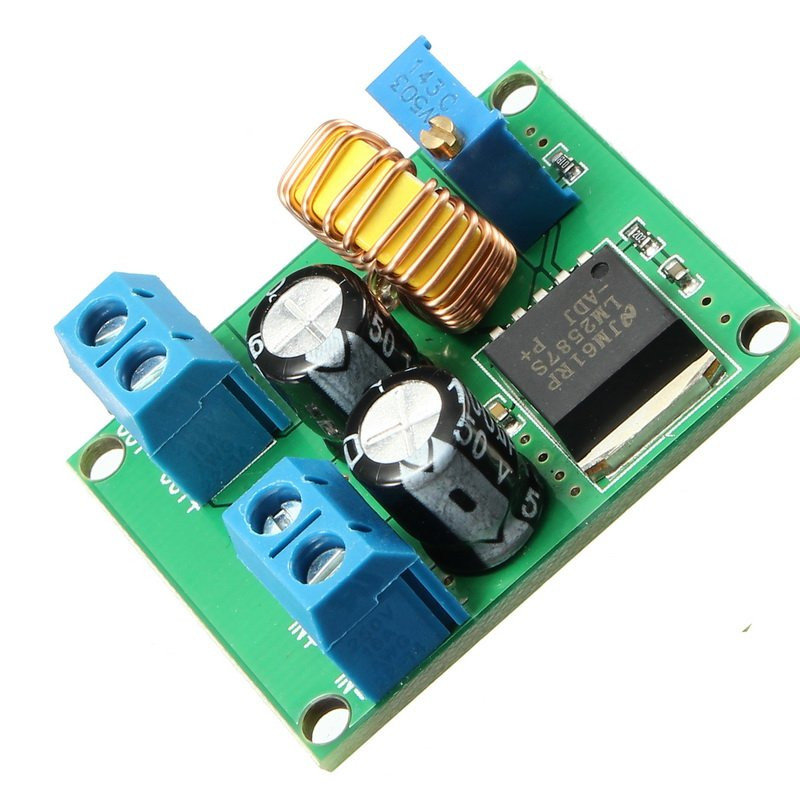

This is dc voltage regulator boost module, high-power, low ripple with input voltage range 3-35V and output Voltage from 4V-40V. The output current range 0-12A, conversion efficiency up to 95%, it very suitable for 24V car power laptop power supply.
Features:
- Mode of connection: Wiring terminals are free of soldering, IN is input, OUT is output.
- Suitable for 24V car or laptop power supply.
- Low ripples.
- High power.
Package Includes:
1 x DC-DC 3V-35V To 4V-40V Adjustable Step Up Power Module High Power Boost Converter
Specifications:
| Input Voltage Range | 3V 35V |
| Output Voltage(V) | 4 ~ 40 |
| Max. Output Current (A) | 0 12 |
| Efficiency | 95% |
| Load (W) | 80 |
| Operating Temperature Range(°C) | -40 to 85 |
| Length (mm) | 38 |
| Width (mm) | 32 |
| Height (mm) | 17 |
| Weight (gm) | 17 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 197.06 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
DC-DC 3V-35V To 4V-40V Adjustable Step Up Power Module High Power Boost Converter
- Product Code: EC-6681
- Availability: Out Of Stock
-
Rs.167.00
- (Excluding 18% GST)
