URB2403YMD-6WR3 series are isolated 6W DC-DC converter products with 4:1 input voltage range. They feature efficiencies up to 88%, 1500VDC input to output isolation and the converter safely operate ambient temperature of -40℃to +85℃, input under-voltage protection, output short-circuit, over-current, over-voltage protection. They meet CLASS A of CISPR32/EN55032 EMI standards without external components, optional packages are offered for chassis or DIN-rail mounting (A2S, A4S), adding additional input reverse polarity protection, which make them widely applied in medical care, industrial control, electric power, instruments and communication and railway fields.

Features:-

• Ultra-wide 4:1 input voltage range
• High efficiency up to 88%
• No-load power consumption as low as 0.12W
• I/O isolation test voltage1.5K VDC
• Input under-voltage protection, output short circuit, over-current, over-voltage protection
• Operating ambient temperature range: -40℃ to +85℃
• Meets CISPR32/EN55032 CLASS A, without extra components
• Input reverse polarity protection available with Chassis (A2S) or 35mm DIN-Rail mounting (A4S) version
• IEC60950, UL60950, EN62368 approved
• Meets EN50155 railway standard
• Industry standard pin-out

Specifications:-

• I/p Voltage range:9-36V
• Nominal voltage:24V
• O/p voltage:3.3V
• O/p current:2400/0mA
• wattage:6W
• Isolation: 1.5kvdc
• Package: Dip

Package Includes:-

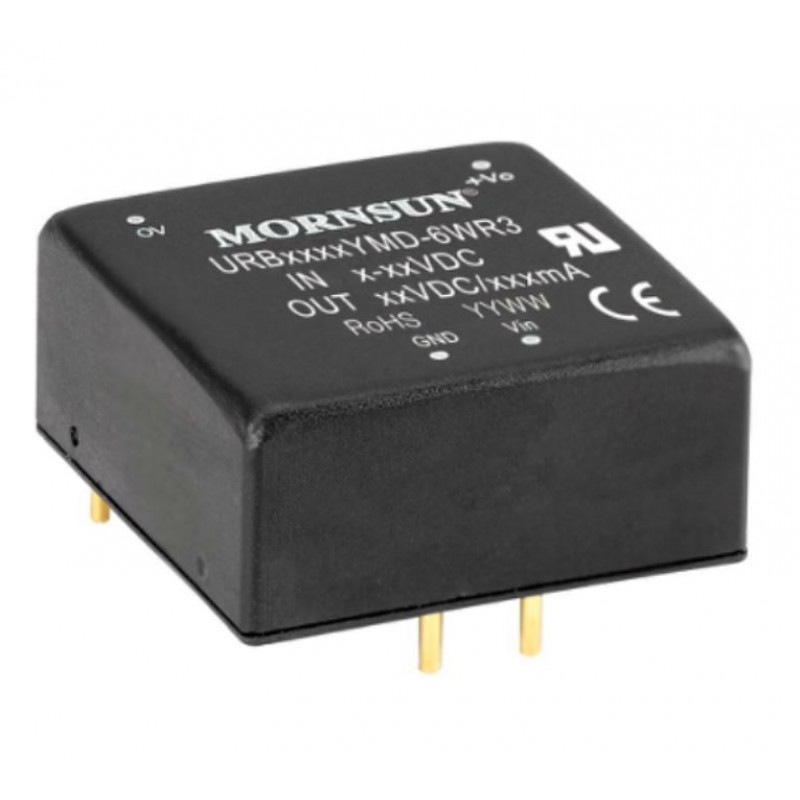

1 x URB2403YMD-6WR3 Mornsun 24V to 3.3V DC-DC Converter 6W Power Supply Module - DIP Package
