FEATURES :
- Ultra compact SIP package
- Wide input voltage range (2:1)
- Operating temperature range: -40 to +85
- Isolation voltage: 1.5K VDC
- Low ripple & noise
- Short circuit protection (self-recovery)
- Remote On/Off
- EN60950 approval
Specifications :-
DC-DC Converter
I/p Voltage range:18-36V
Nominal voltage:24V
O/p voltage:5V
O/p current:200/10mA
wattage:1W
Isolation:1.5kvdc
Package: SIP
Download DATASHEET :
Download
Package Includes:
1 x WRB2405S-1WR2 Mornsun 24V to 5V DC-DC Converter 1W Power Supply Module - Compact SIP Package| Brand/Manufacturer | Mornsun |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 706.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

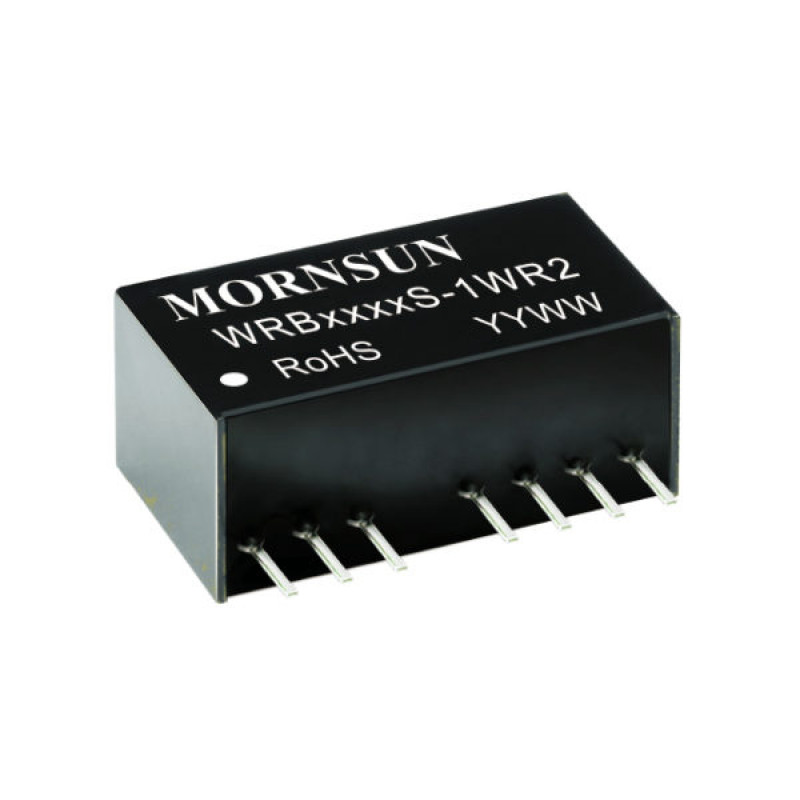

WRB2405S-1WR2 Mornsun 24V to 5V DC-DC Converter 1W Power Supply Module - Compact SIP Package
- Product Code: EC-9487
- Availability: Out Of Stock
-
Rs.649.00
- (Excluding 18% GST)
