  • AXICOM 9V 2A DC V23105-A5006-A201 8 Pin DPDT PCB Mount Telecom Relay

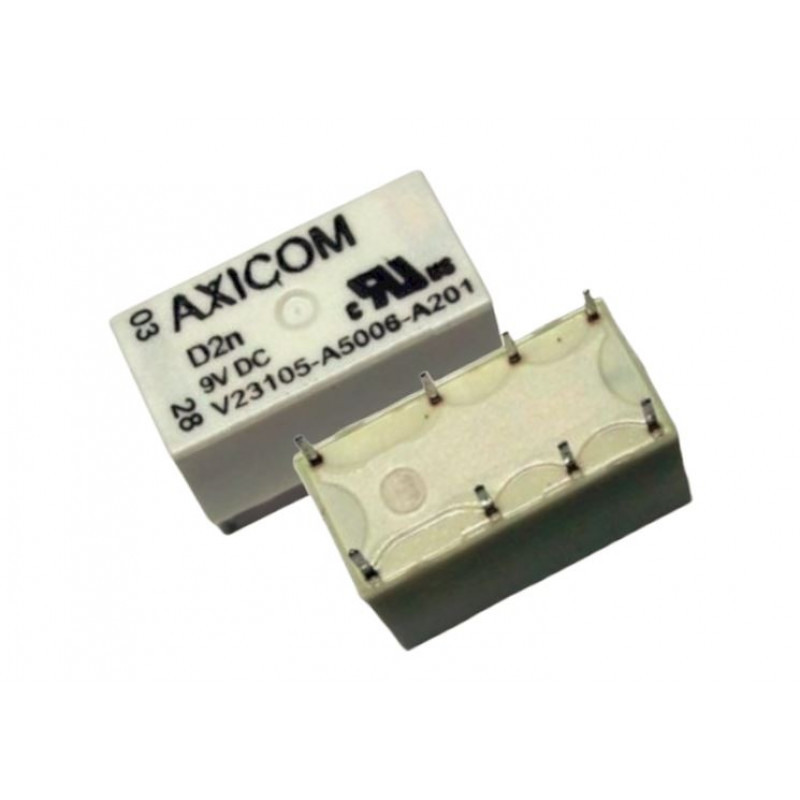

AXICOM 9V 2A DC V23105-A5006-A201 8 Pin DPDT PCB Mount Telecom Relay


Features:-

  • Universal print relay.
  • Monostable.
  • 1 winding with 2 changeover contacts.
  • For installation in printed circuits.
  • Plastic housing, waterproof.
  • High-voltage resistant according to FCC Part 68: 1.5kV (10/160μs)
  • Switching capacity from small signals to 2A.
  • Response/release/bounce time: 5ms/4ms/3ms.
  • Standard Pinning.
  • Areas of application: Communication Technology, Consumer Electronics, telecommunications.


Specifications:

  • Type : V23105-A5303-A201
  • Nominal coil voltage : 9VDC
  • Response voltage (min.) : 8.4V /DC
  • Response voltage (max.) : 24.3VDC
  • Control type : monostable, 1 coil
  • Resistance (coil) : 720Ω
  • Contact type : 2 changers
  • Contact material : AgNi + Au
  • Switching voltage (max.) : 220VDC to  250V /AC
  • Switching current (max.) : 2 A
  • Max. switching capacity : 60W to 125VA
  • Connection : Solder pins
  • Minimum temperature : -25 ℃
  • Max Temperature : +85 °C
  • Dimension (L x W x H) : 20.3 x 10.1 x 11.45 mm
  • RoHS Compliant : Yes
  • Product Type : Print relay


Package Includes:

1 x AXICOM 9V 2A DC V23105-A5006-A201 8 Pin DPDT PCB Mount Telecom Relay

Brand/Manufacturer
Country Of Origin
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 76.7 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

AXICOM 9V 2A DC V23105-A5006-A201 8 Pin DPDT PCB Mount Telecom Relay

  • Product Code: EC-10125
  • Availability: 82
  • Rs.65.00
  • (Excluding 18% GST)
