  • Hongfa 12V 16A DC HF158F/12-H3T 6-Pin SPST Power Relay

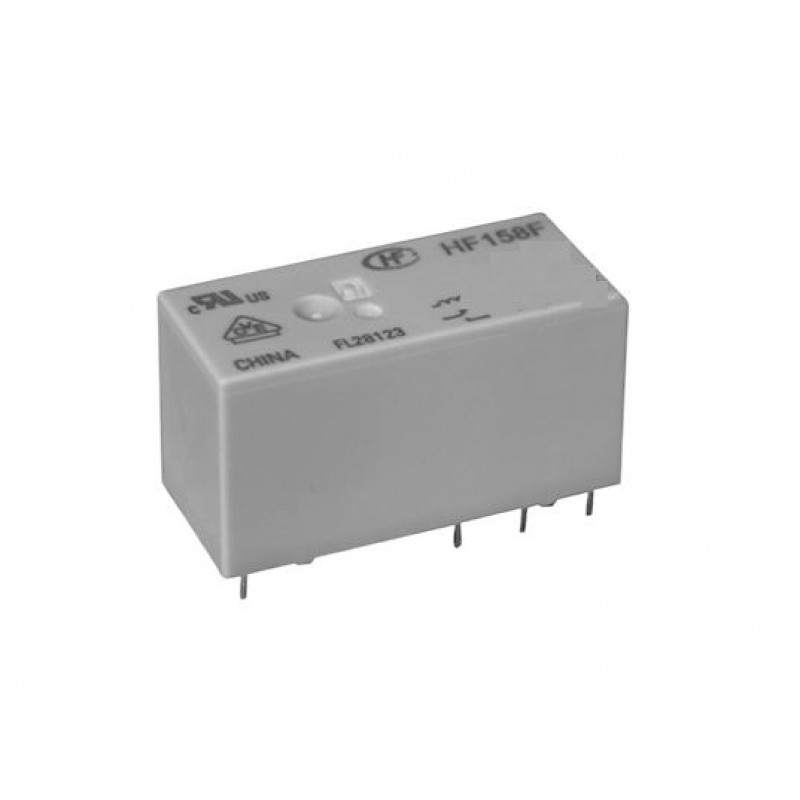

Hongfa 12V 16A DC HF158F/12-H3T 6-Pin SPST Power Relay


Features:

  • 16A switching capability
  • Low height: 15.7 mm
  • 5kV dielectric strength (between coil and contacts)
  • Creepage distance: 10mm, meet reinforce insulation
  • UL insulation system: Class F
  • Product in accordance to IEC 60335-1 available
  • Sockets available
  • Plastic sealed and flux proofed types available


Specifications:

  • Type : HF158F/12-H3T
  • Switching Current (A,Res.load) : 16A
  • Contact arrangement : 1 Form A
  • Coil version : single contact
  • Terminal Type : PCB
  • Mounting : PCB-THT
  • Construction : Flux proofed
  • Terminals : 3
  • Contact material : AgSnO2
  • Sort : Standard
  • Coil voltage : 12
  • Coil power: Approx 0.4W
  • Insulation standard : Class F
  • Coil voltage form : DC
  • Rated voltage(V) : 250VAC
  • Volume(mm³) : 29.0×12.7×15.7 (mm)


Package Includes:

1 x Hongfa 12V 16A DC HF158F/12-H3T 6-Pin SPST Power Relay
