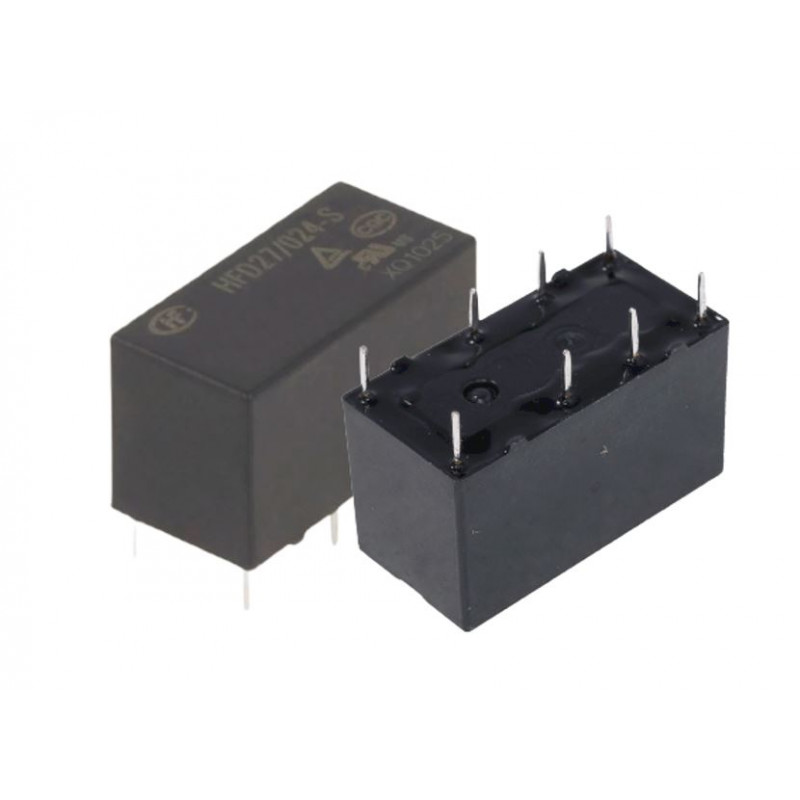

  • Hongfa 24V 2A DC HFD27/024-S 8 Pin DPDT PCB Mount Telecom Relay

Subminiature signal relay offers switching capacity up to 125VA/60W, bifurcated contacts and environmentally friendly product (RoHS compliant) and Epoxy sealed for automatic-wave soldering and cleaning.


Features and Specifications:

  • Manufacturer: HONGFA RELAY
  • Type of relay: Electromagnetic
  • Contacts configuration: DPDT
  • Rated coil voltage: 24V DC
  • AC contacts rating @R:  1A / 125V AC

                                       (at resistive load)

  • DC contacts rating @R: 2A / 30V DC

                                       (at resistive load)

  • Contact current max : 2A
  • Switched voltage : max. 120V DC to max. 240V AC
  • Relay variant : Subminiature
  • Mounting : PCB
  • Coil resistance : 2.88kΩ
  • Coil voltage min : 18V DC
  • Coil voltage max : 48V DC
  • Operate time : 7ms
  • Body dimensions : 20.2x10x11.5mm
  • Release time : 4ms
  • Coil power consumption : 200mW
  • Operating temperature : -40...85°C
  • Contact resistance : 100mΩ
  • Contact material : AgNi + Au
  • Terminal pitch : 5.08mm


Package Includes:

1 x Hongfa 24V 2A DC HFD27/024-S 8 Pin DPDT PCB Mount Telecom Relay
