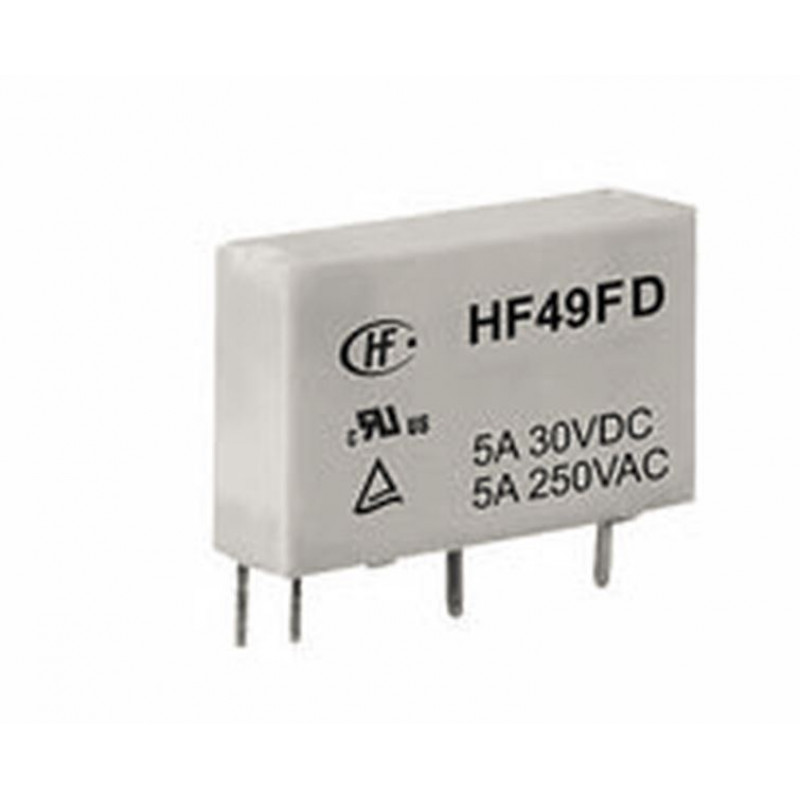

  • Hongfa 24V 5A DC HF49FD/024-1H12TFL 4 Pin SPST Miniature Power Relay

Hongfa 24V 5A DC HF49FD/024-1H12TFL 4 Pin SPST Miniature Power Relay offers Slim size (width 5mm, height 12.5mm), 5A switching capability, 3kV dielectric strength (between coil and contacts) and environmentally friendly product (RoHS compliant) and meets IEC61131-2 reinforce insulation.


Features and Specifications:

  • Brand : Hongfa
  • Coil Voltage (DC) : 24 V
  • Contact Arrangement : 1 Form A
  • Contact Current Rating : 5 A
  • Construction : Plastic sealed
  • Insulation standard : Class A
  • Rated voltage : 250V.a.c
  • Contact plating : Without plating
  • Contact capacity : AgNi
  • Coil power : 0.12
  • Creepage Distance : 4.2mm
  • Electrical Distance : 3.5mm
  • Insulation resistance : 1000MOhm
  • Release time : < 5ms
  • Operate time : < 10ms
  • Dielectric strength (between coil & contacts) : 3000VAC 1min
  • Mechanical endurance : 20000000
  • Max Switching Voltage (VDC) : 30VDC
  • Weight : 3gm
  • Max Switching Current (AC) : 5A
  • Electrical endurance : 50000
  • Ambient temperature : -40~85C
  • Max Switching Voltage (VAC) : 250VAC
  • Size : 20x5x12.5mm


Package Includes:

1 x Hongfa 24V 5A DC HF49FD/024-1H12TFL 4 Pin SPST Miniature Power Relay


Brand/Manufacturer
Country Of Origin
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 100.3 (Inclusive of all Taxes)
