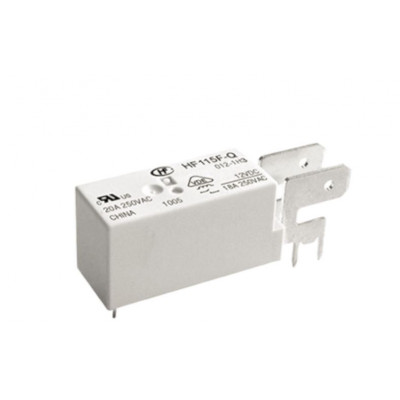

Hongfa 5V 16A DC HF115F-Q/005-1H3 6-Pin SPST Power Relay with Metal Holder Attached
Features:
- Ambient temperature up to 125 ℃
- 5kV dielectric strength (between coil and contacts)
- Low height: 15.7mm
- Creepage distance >8mm
- Meeting VDE 0700, 0631 reinforce insulation
- UL94, V-0 flammability class
- Product in accordance to IEC 60335-1 available
- UL insulation system: Class F
Specifications:
- Type : HF115F-Q/005-1H3
- Switching Current (A,Res.load) : 16A
- Contact arrangement : 1 Form A
- Coil version : single contact
- Terminal Type : Quick connect terminals
- Mounting : PCB-THT
- Construction : Flux proofed
- Terminals : Quick connect terminals horizontal
- Contact material : AgNi
- Sort : Standard
- Coil voltage : 5V
- Coil power: Approx 0.4W
- Insulation standard : Class F
- Coil voltage form : DC
- Rated voltage(V) : 250VAC
- Volume（mm³) : 45.0×12.7×15.7 (mm)
Package Includes:
1 x Hongfa 5V 16A DC HF115F-Q/005-1H3 6-Pin SPST Power Relay with Metal Holder Attached
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 105.02 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Hongfa 5V 16A DC HF115F-Q/005-1H3 6-Pin SPST Power Relay with Metal Holder Attached
- Product Code: EC-10377
- Availability: 261
-
Rs.99.00
- (Excluding 18% GST)
