AS333 is a DC power distribution board , the purpose is to save power wiring. we often need to supply multiple channels power supply to different devices , we normally use terminal blocks to divide, which not only increased the wiring work , and also easy to wire wrong and difficult to find error.
Key Specifications
Input Current Rating | 20A |
Output Current Rating | 5A |
Series | AS |
Part Number | AS333 |
Voltage Rating | 100VDC / 230VAC |
Number of Channels | 12 |
Warranty | 1 Year |
Features
• Voltage Rating : 100VDC / 230VAC
• Current Rating Input : 10A max.
• Current Rating Output : 5A per channel
• Input side : 1 x 2 way Terminals
• Output side : 6 x 2 way Terminals
Detailed Specifications
Operating ambient | 0 - 55°C, 85% RH |
Storage ambient | -20°C to 85°C |
Input side terminations | Screw type, 2 way terminals for 2.5mm sq.wire |
Output side terminations | Screw type, 3 way DD terminals for 2.5mm sq.wire |
Mounting | 35 mm DIN rail |
Dimension(W x H x D) | 70 x 80 x 65 mm |
Weight | 130 gm |
Related Documents
Brand/Manufacturer | Generic |
Country Of Origin | China |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 470.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

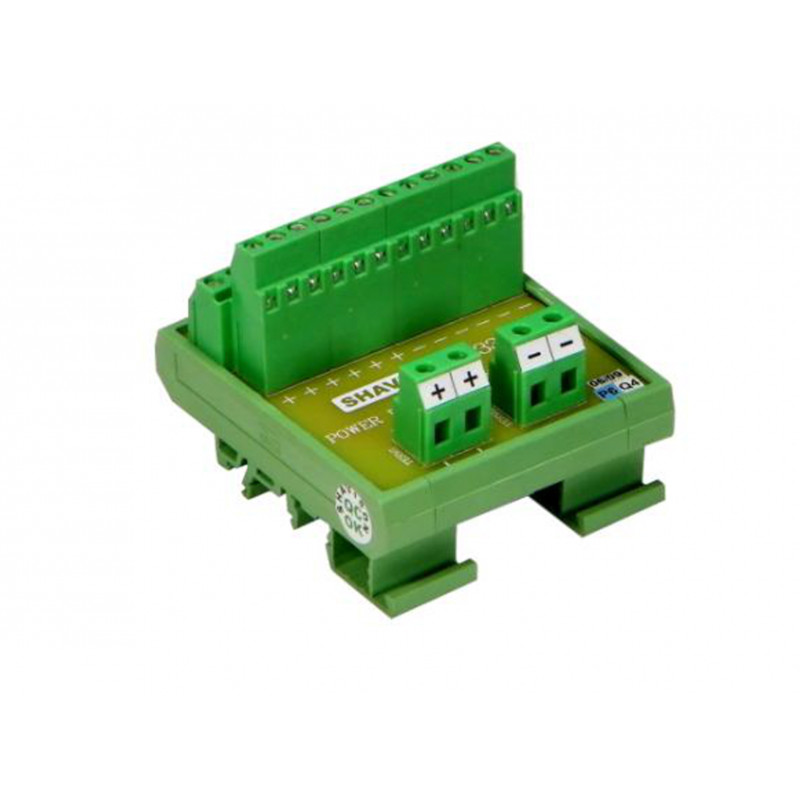

AS333 Shavison 20A Input 2x2 Way Terminal to 5A Output 12x2 Way Terminals Power Distribution Module
- Product Code: EC-4494
- Availability: Out Of Stock
-
Rs.399.00
- (Excluding 18% GST)
