AS348-113 is a open frame power supplies are designed to meet the delivering higher efficiency and improved no-load performance. Featuring industry standard footprints, the VOF's efficient design, make these power supplies the ideal solution for a range of consumer, industrial, and ITE applications.
Key Specifications
| Output Voltage | 12V |
| Output Current | 2A |
| Type | Open Frame SMPS |
| Wattage | 24W |
| Features | Standard |
| Series | AS348 |
| Part Number | AS348-113 |
| Mechanical Form | Open Frame |
| Warranty | 1 Year |
| IP Level | Non-Waterproof |
| Input Voltage | 180 - 270VAC ;200 - 360VDC |
Features
• Single Phase Input
• Built In Transient protector & EMI filter
• Protection against short circuit, overload ,overvoltage
• Low ripple & noise
• Cooling by free air convention
• Power OK indication, terminations, output set control & rating details on front
• 100% full load burn in tested
• Low cost
• High reliability
• Compact
Detailed Specifications
| Isolation | Input – Output : 1.5KVAC, 1minute Input – Earth : 1.5KVAC, 1 minute Output – Earth : 0.5KVAC, 1minute |
| Efficiency | 70 - 75% |
| Output voltage adjustment | +/- 10% of nominal output voltage |
| Overload protection | 105% - 130% of rated load |
| Line & load regulation | Better than 0.5% |
| Hold up time | > 20ms at rated input voltage and load |
| Operating ambient | 0 - 50°C, 95% RH |
| Inrush current | 32A @230VAC;23A @230VDC |
| Storage ambient | -20°C to 85°C |
| Safety standard | Design refers to EN60950-1 |
| EMC standard | Design refers to EN55022, EN55024 |
| Terminations | Screw type, for 2.5mm sq. wire |
| Mounting | Screw / Din rail Mounting |
| Ripple &noise | < 120mV |
| Overvoltage procetion | < 16V |
| Dimension (W X H X D ) | 40 x 55 x 100 mm |
| Weight | 158 gm |
Datasheet:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1167.02 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

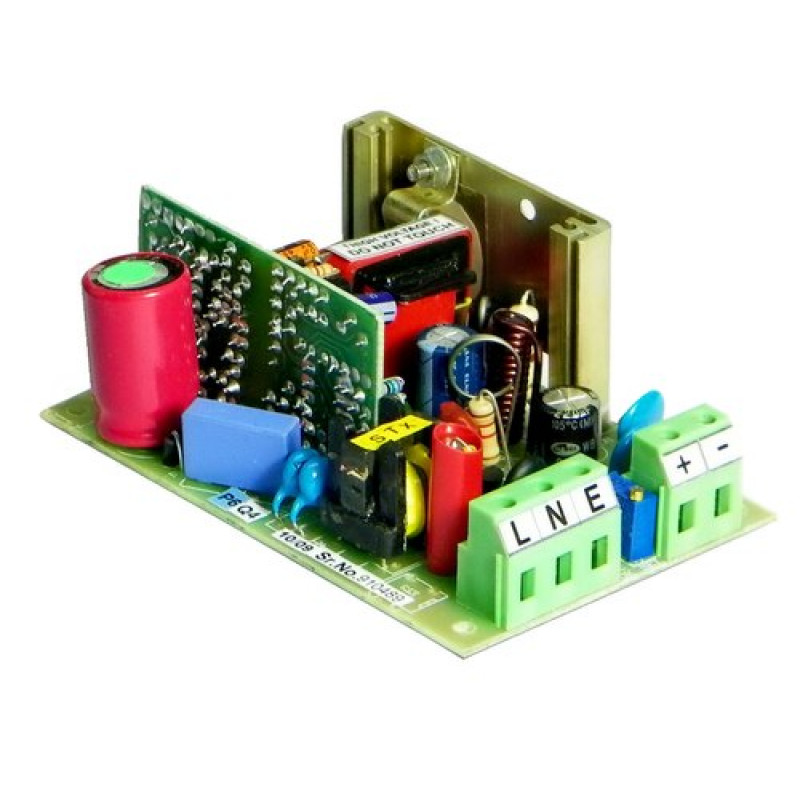

AS348-113 Shavison SMPS - 12V 2A - 24W Open Frame Power Supply
- Product Code: EC-4481
- Availability: 2
-
Rs.989.00
- (Excluding 18% GST)
