LI150-20B12PR2 is Mornsun’s AC-DC series featuring a cost-effective, energy efficient solution for standard DIN-rail mounting. The products offer a high level of stability and immunity to noise, compliant with international IEC62368 standards for EMC and safety specifications meet IEC/EN61000-4, CISPR32, EN55032, UL/EN/IEC62368, IEC/EN60335, IEC61558, UL61010. These light weight AC-DC converters also have an extremely compact design for space saving and are ideal for applications such as industrial control equipment machinery and all kinds of applications in a harsh environment.
Key Specifications
| Type | DIN Rail Single Output |
| Output Power | 135.6W |
| Series | LI150-20B |
| Part Number | LI150-20B12PR2 |
| Mount | DIN-Rail |
| IP Level | Non-Waterproof |
| Output Voltage | 12V |
| Output Current | 11.3A |
Features
- Universal 85-264VAC (277VAC available) or 120-370VDC (390VDC available) input voltage
- Withstand 300VAC surge input for 5s
- Operating ambient temperature range: -30℃to+70℃(can be start-up at -40℃)
- High I/O isolation test voltage up to 4000VAC(Input -output)
- Over-voltage class III (Designed to meet EN61558standards)
- Low standby power consumption, low ripple & noise High efficiency, high reliability
- Output short circuit, over-current, over-voltage over-temperature protection
- DIN rail TS35X7.5/ TS35X15 mountable
- Ultra-thin design： width 105mm(6SU)
Download DATASHEET :
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.

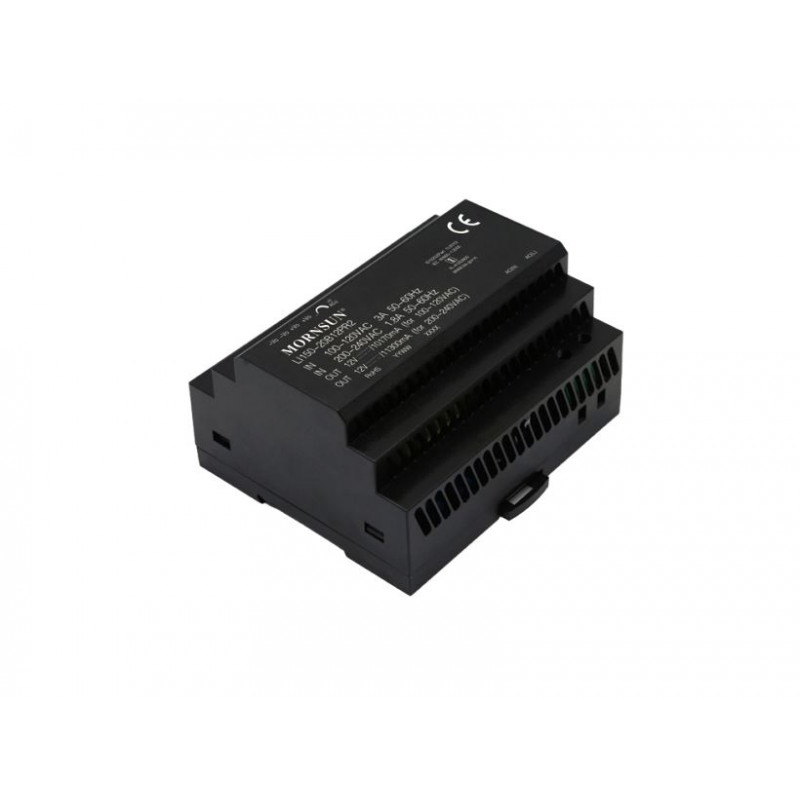

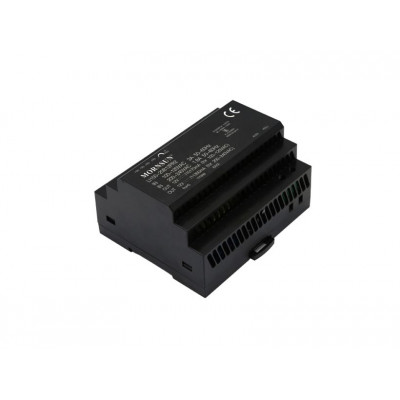

LI150-20B12PR2 Mornsun SMPS - 12V 11.3A 135.6W AC/DC DIN Rail Power Supply
- Product Code: EC-10629
- Availability: Out Of Stock
-
Rs.3007.82
