  • 12-0-12 12V 500mA Center Tapped Step Down Transformer

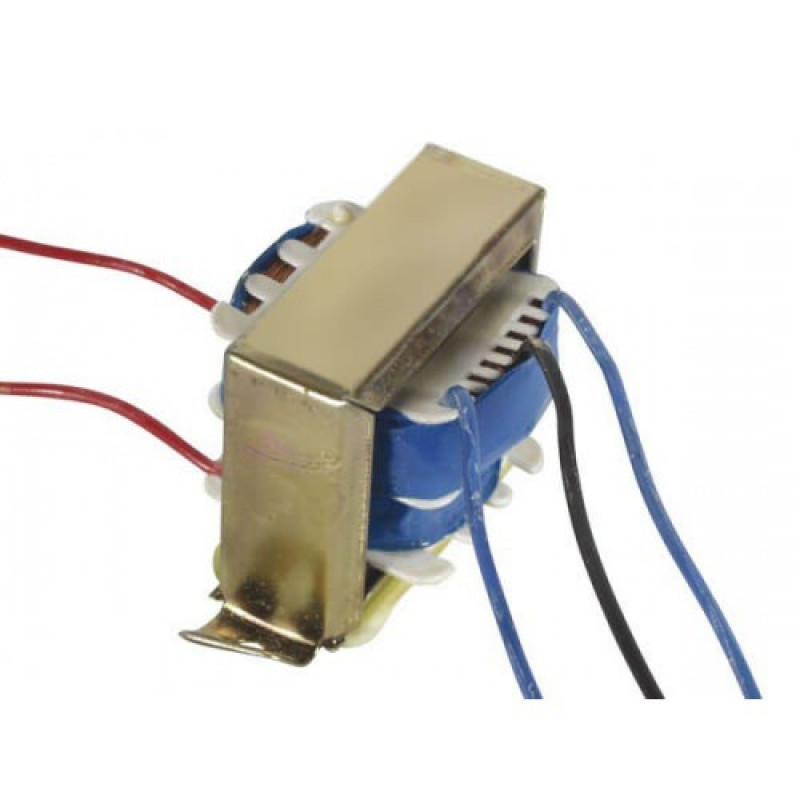

12-0-12 500mA Center Tapped Step Down Transformer is a general purpose chassis mounting mains transformer. Transformer has 230V primary winding and center tapped secondary winding. The transformer has flying colored insulated connecting leads ( Approx 100 mm long ). The Transformer act as step down transformer reducing AC - 230V to AC - 12V.

The Transformer gives outputs of 12V, 12V and 0V. The Transformer's construction is written below with details of Solid Core and Winding.

The transformer is a static electrical device that transfers energy by inductive coupling between its winding circuits. A varying current in the primary winding creates a varying magnetic flux in the transformer's core and thus a varying magnetic flux through the secondary winding. This varying magnetic flux induces a varying electromotive force (E.M.F) or voltage in the secondary winding. The transformer has cores made of high permeability silicon steel. The steel has a permeability many times that of free space and the core thus serves to greatly reduce the magnetizing current and confine the flux to a path which closely couples the winding.


Specifications of 12-0-12 500mA Center Tapped Transformer:-

  • Input Voltage:          230V AC
  • Output Voltage:         12V, 12V or 0V
  • Output Current:         500mA
  • Mounting:                 Vertical mount type


Features of 12-0-12 500mA Center Tapped Transformer:-

  • Soft Iron Core.
  • 500mA Current Drain.


Applications of 12-0-12 500mA Center Tapped Transformer:-

  • DIY projects Requiring In-Application High current drain.
  • On chassis AC/AC converter.
  • Designing a battery Charger.
Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 88.5 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

12-0-12 12V 500mA Center Tapped Step Down Transformer

  • Product Code: EC-0331
  • Availability: 41
  • Rs.99.00
  • (Excluding 18% GST)

  • Wholesale Pricing
    Select Quantity Discount Price per piece
    1 - 9 0% 99.0000
    10 - 24 4% Rs.95.00
    25 - 49 9% Rs.90.00
    50 - 99 14% Rs.85.00
    100+ 19% Rs.80.00
