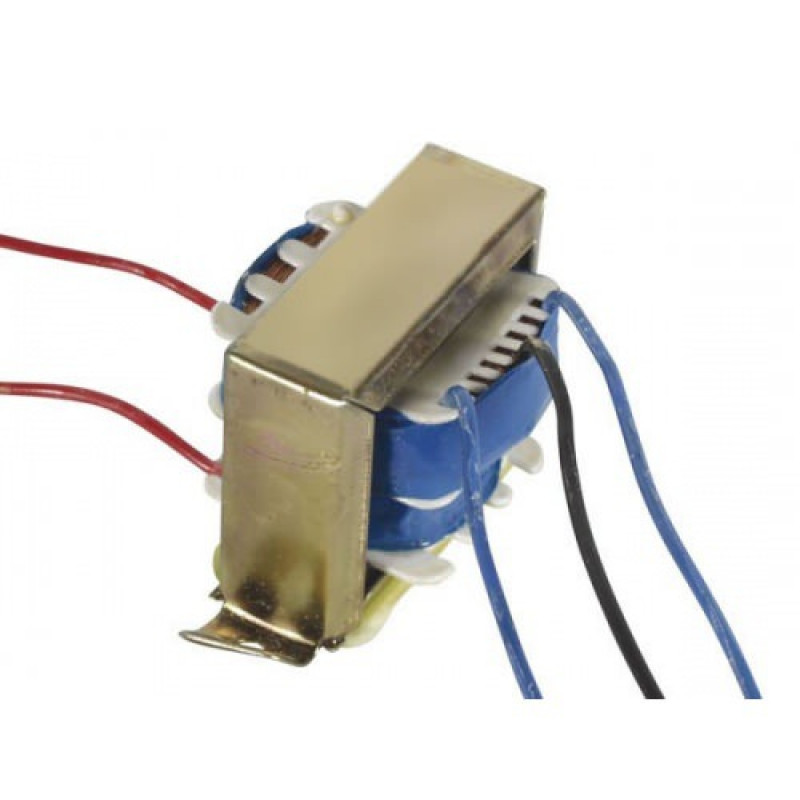

24-0-24 1A Center Tapped Step Down Transformer is a general purpose chassis mounting mains transformer. Transformer has 230V primary winding and center tapped secondary winding. The transformer has flying colored insulated connecting leads ( Approx 100 mm long ). The Transformer act as step down transformer reducing AC - 230V to AC - 24V.
The Transformer gives outputs of 24V, 24V and 0V. The Transformer's construction is written below with details of Solid Core and Winding.
The transformer is a static electrical device that transfers energy by inductive coupling between its winding circuits. A varying current in the primary winding creates a varying magnetic flux in the transformer's core and thus a varying magnetic flux through the secondary winding. This varying magnetic flux induces a varying electromotive force (E.M.F) or voltage in the secondary winding. The transformer has cores made of high permeability silicon steel. The steel has a permeability many times that of free space and the core thus serves to greatly reduce the magnetizing current and confine the flux to a path which closely couples the winding.
Specifications of 24-0-24 1 Ampere Center Tapped Transformer:-
- Input Voltage: 230V AC
- Output Voltage: 24V, 24V or 0V
- Output Current: 1 Amp
- Mounting: Vertical mount type
Features of 24-0-24 1 Ampere Center Tapped Transformer:-
- Soft Iron Core.
- 1 Amp Current Drain.
Applications of 24-0-24 1 Ampere Center Tapped Transformer:-
- DIY projects Requiring In-Application High current drain.
- On chassis AC/AC converter.
- Designing a battery Charger.
|Country Of Origin||China|
|Packer / Importer Address||Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.|
|MRP||Rs. 265.5 (Inclusive of all Taxes)|
* Product Images are shown for illustrative purposes only and may differ from actual product.
24-0-24 24V 1A Center Tapped Step Down Transformer
- Product Code: EC-0910
- Availability: 210
- (Excluding 18% GST)
