FEATURES :

Ultra-wide 4:1 input voltage range
High efficiency up to 91%
I/O isolation test voltage 1.5k VDC
Input under-voltage protection, output short circuit, over-current, overvoltage protection
Operating ambient temperature range -40 to+105
CISPR32/EN55032 CLASS A EMI compliant without external components
Input reverse polarity protection available with chassis(A2S) or 35mm DIN-rail mounting(A4S) version
Industry standard pin-out
IEC62368, UL62368, EN62368 Approved

I/p Voltage range:18-75V

Nominal voltage:48V

O/p voltage:24V

O/p current:625/0mA

wattage:15W

Isolation:1.5kvdc

Package:Horizontal (Dip)

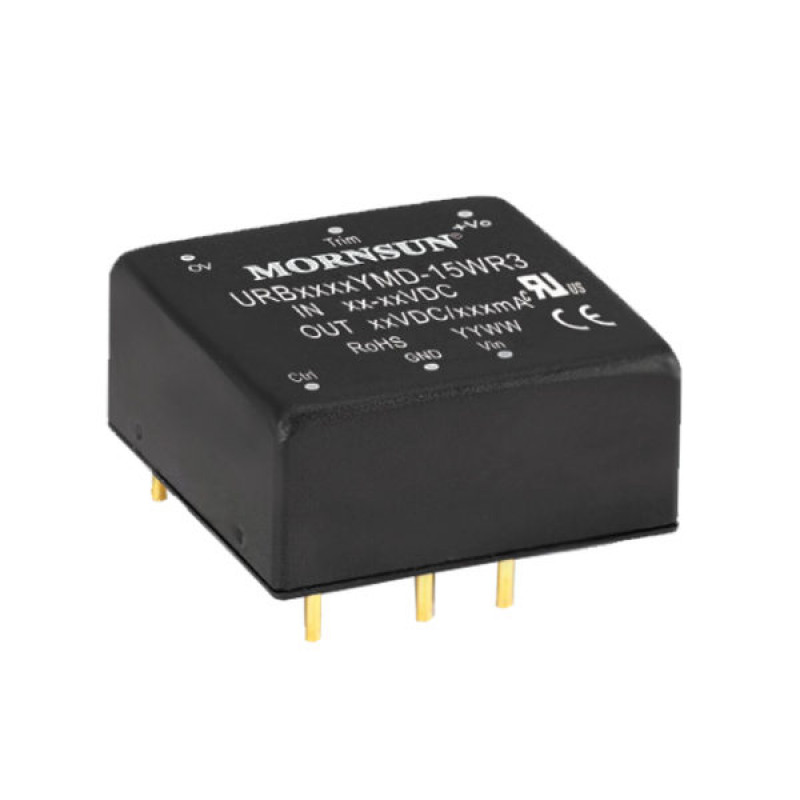

1 x URB4824YMD-15WR3 Mornsun 48V to 24V DC-DC Converter 15W Power Supply Module - Horizontal DIP Package


Brand/Manufacturer	Mornsun
Country Of Origin	China
Packer / Importer Address	Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP	Rs. 1886.82 (Inclusive of all Taxes)

* Product Images are shown for illustrative purposes only and may differ from actual product.

URB4824YMD-15WR3 Mornsun 48V to 24V DC-DC Converter 15W Power Supply Module - Horizontal DIP Package
