URF2412LP-20WR3 series are isolated 20W DC-DC converter products with a 4:1 input voltage range. They feature efficiencies of up to 89%,3000VDC input to output isolation, operating ambient temperature of -40℃ to +85℃, input under-voltage protection, output short circuit, over-voltage and over-current protection. The products meet CLASS A of CISPR32/EN55032 EMI standards, optional packages are offered for chassis or DIN-rail mounting (A2S, A4S), adding additional input reverse polarity protection. They are widely used in applications of requiring ultra-wide input voltage and high isolation, such as electrical power industry, data transmission, battery powered devices, telecommunication, distributed power systems, hybrid module system, remote control systems, industrial robotics, etc

Features:-

• Ultra-wide 4:1 input voltage range
• High efficiency up to 89%
• No-load power consumption as low as 0.12W
• I/O isolation test voltage 3K VDC
• Operating ambient temperature range: -40℃ to +85℃
• Input under-voltage protection, output short-circuit, over-voltage, over-current protection
• CISPR32/EN55032 CLASS A EMI compliant without external components
• Industry standard pin-out
• Input reverse polarity protection available with chassis (A2S) or 35mm DIN-Rail mounting (A4S) version
• IEC60950, UL60950, EN60950 Approved

Specifications:-

• I/p Voltage range:9-36V
• Nominal voltage:24 V
• O/p voltage:12v
• O/p current:1667 mA
• wattage:20W
• Isolation:3 kvdc
• Package: DIP

Package Includes:-

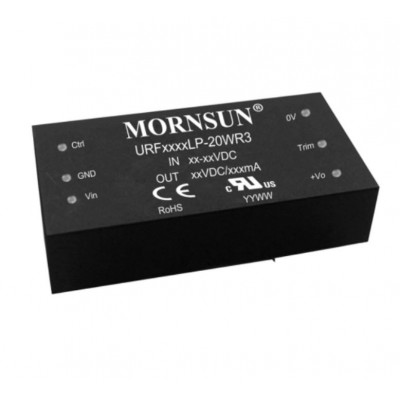

1 x URF2412LP-20WR3 Mornsun 24V to 12V DC-DC Converter 20W Power Supply Module - DIP Package

Download DATASHEET :

Download
