  • Push Button Switch - 12mm - 4 pin - Tactile/Micro Switch

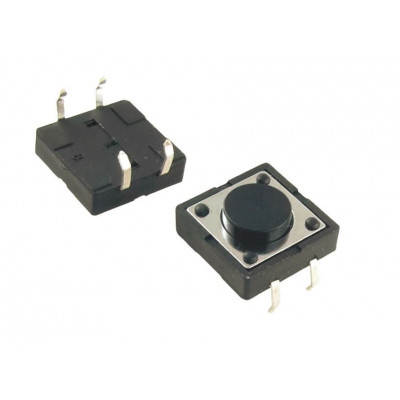

Push Button Switch - 12mm - 4 pin - Tactile/Micro Switch.

An electronic switch is an electronic component or device that can switch an electrical circuit, interrupting the current or diverting it from one conductor to another.Tactile Push Button Switch is widely used as a standard input “buttons” on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit.

Features and Specifications:-

  • Body Material : Plastic
  • Operating Voltage : 12V
  • Operating Current : 50mA
  • Pin Count : 4-pin
  • Switch Type : Push Button
  • Tactile/Microswitch
  • Through-hole design
  • Shaft Shape : Round
  • High operating force (3.0N or 3.6N) suited to automotive equipment requirements
  • The long life of 300,000 cycles realized despite the high operating force
  • Contact Material : Brass
  • Contact Resistance : 50mΩ
  • Insulation Resistance : 100MΩ
  • Operating Temperature Range : -20°C to +70°C
  • Operation Force : 3-5N
  • Length: 12mm
  • Width: 12mm
  • Height: 5mm
  • Weight: 1gm

Package Includes:-

1 x Push Button Switch - 12mm - 4 pin - Tactile/Micro Switch

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 9.44 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

Push Button Switch - 12mm - 4 pin - Tactile/Micro Switch

  • Product Code: EC-1140
  • Availability: 3800
  • Rs.8.00
  • (Excluding 18% GST)
