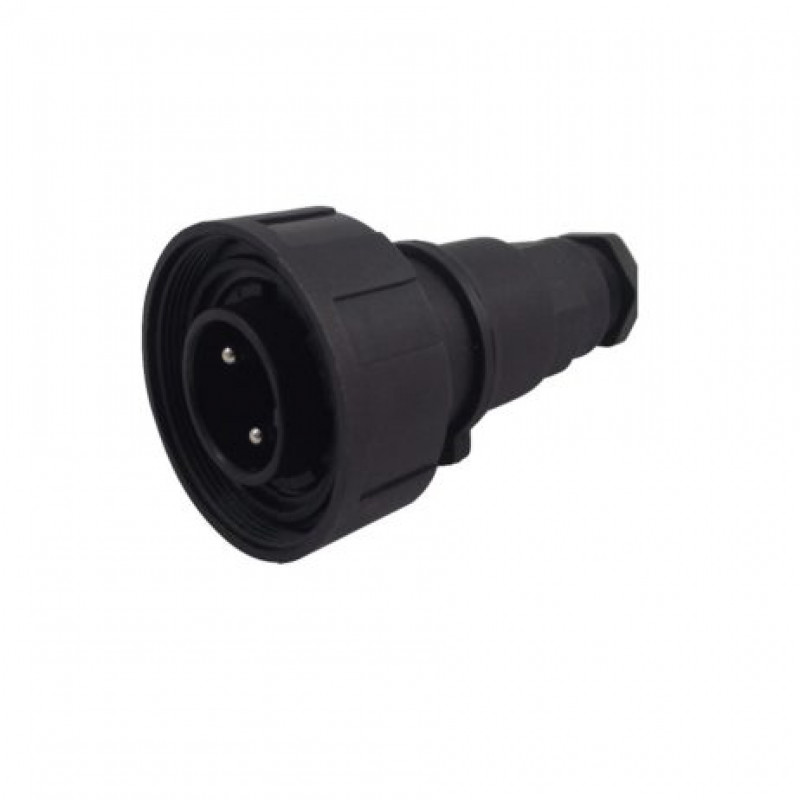

The PX0736/P from Bulgin is a standard Buccaneer, black colour circular flex cable plug connector with 2 pin contacts. This connector has compact design and easy assembly. No special tools are required for screw termination. It mates with in-line flex or panel mounting female connectors.
Note: For more technical details go through Datasheet in the attachment section
Features:
- Screw locking ring
- Standard cable acceptance from 6mm to 8mm
- IP68 and IP69K degree of protection
- Current rating of 12A
- Voltage rating of 277VAC / VDC
- UL, CSA, CCC, and VDEapproved
- Contact resistance is less than 10mohm
- Operating temperature range from -20C to 70C
- UL94 HB rated glass filled polyamide body molding
- Nickel-plated brass contacts
Specifications:
- Current rating: 12A
- Voltage rating: 277VAC / VDC
- UL, CSA, CCC, and VDEapproved
- Contact resistance is less than : 10 mohm
Package Includes:
1 x PX0736/P-CIRCULAR CONNECTOR, PLUG, 2 WA
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
PX0736/P-Circular Connector, Plug, 2 Way
- Product Code: EC-21653
- Availability: 1
-
Rs.1250.00
- (Excluding 18% GST)
