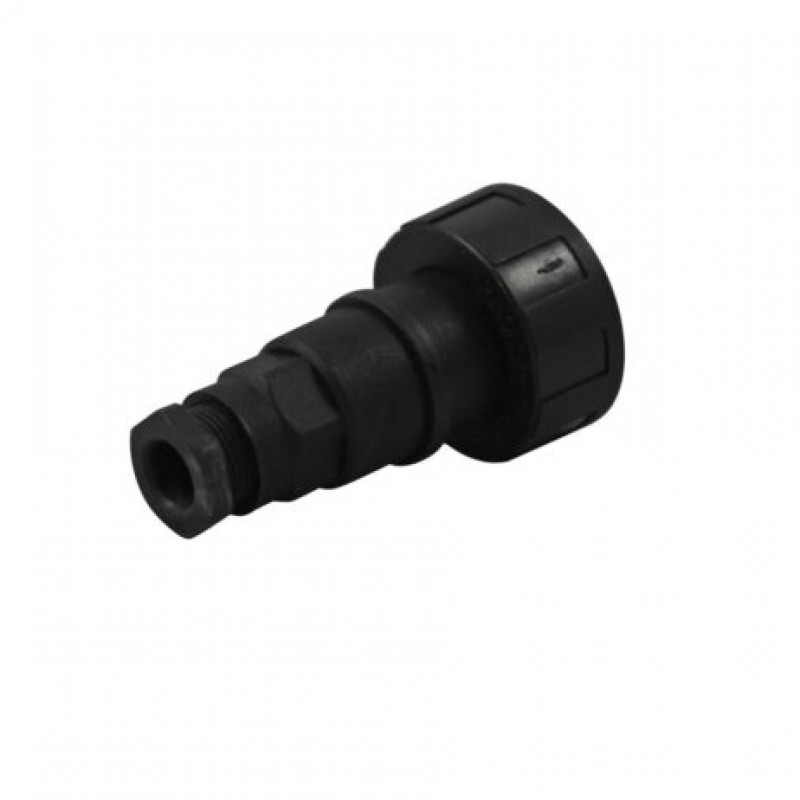

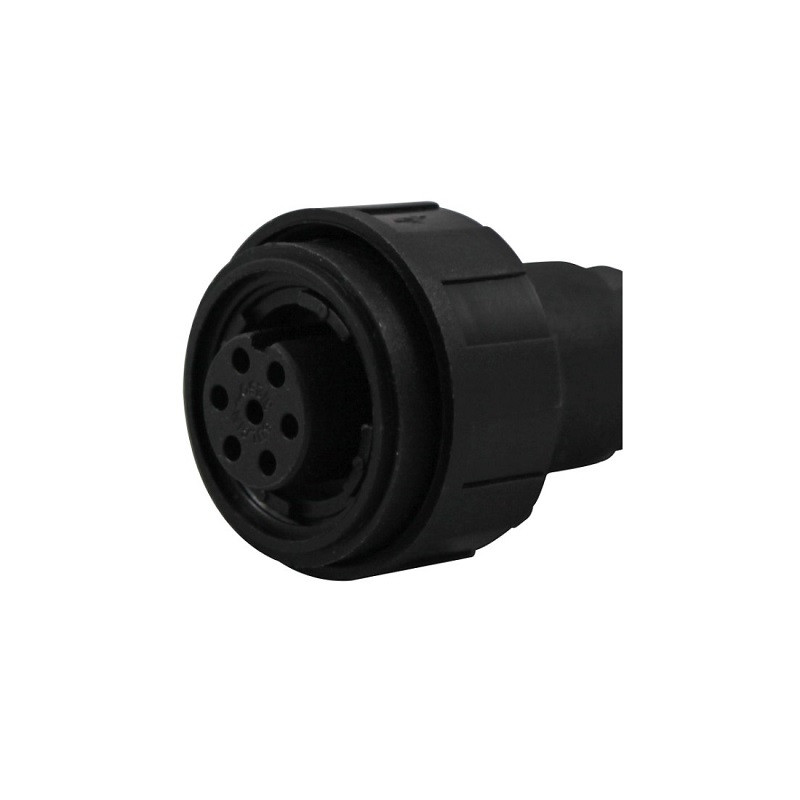

The PX0745/S is a 7-pole female Flex Cable Connector with socket-type nickel-plated brass contacts. It mates with in-line flex or panel mounting versions. The standard cable acceptance (2 to 9 pole) 6 to 8 and 3.5 to 9 mm with alternative glands.
Features:
- Screw locking ring
- Easy to assembly No special tools are required on screw terminal versions
- Waterproof and dustproof to IP68 when mated with a compatible connector
Specifications:
- Product Range: Buccaneer Standard Series
- Circular Connector Shell Style: Cable Mount Receptacle
- No. of Contacts: 7Contacts
- Circular Contact Type: Screw Socket
- Coupling Style: Threaded
- Connector Body Material: Nylon (Polyamide), Glass Filled Body
- Connector Body Plating
- Contact Material: Brass
- Contact Plating: Nickel
Package Includes:
1 x PX0745/S-SOCKET, FREE, 7 POLE
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
PX0745/S-SOCKET, FREE, 7 POLE
- Product Code: EC-21500
- Availability: Out Of Stock
-
Rs.1552.00
- (Excluding 18% GST)
