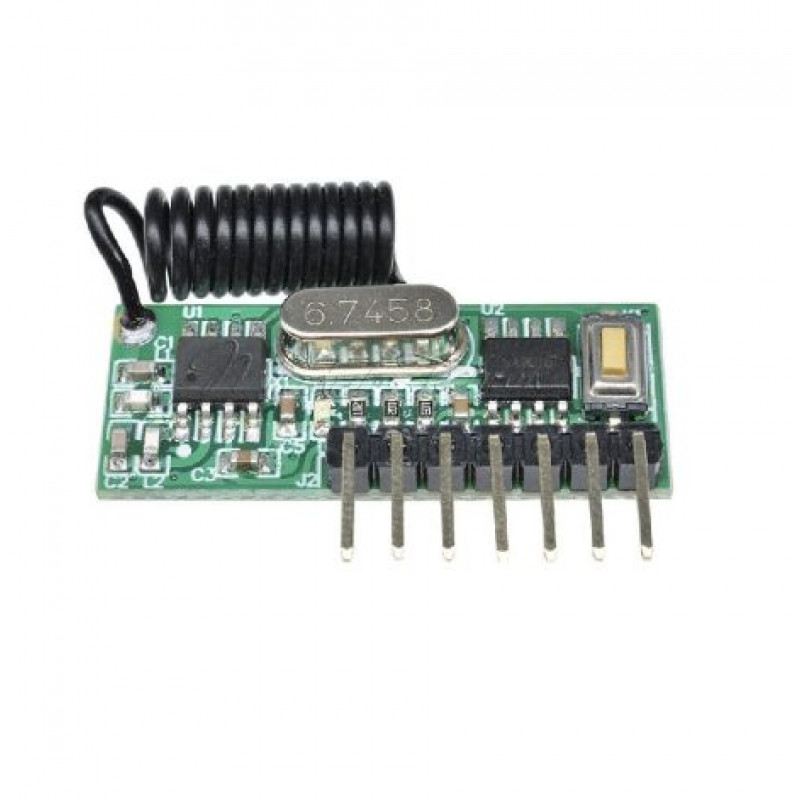

The R04B 315MHz Wireless Receiver Module is a compact RF module designed for wireless communication. Operating at 315MHz, it excels in receiving data wirelessly from compatible transmitters. With reliable reception capabilities, this module is suitable for various applications, including remote control systems and wireless data transmission in electronic projects. Its compact design makes it versatile for integration into diverse electronics setups requiring wireless connectivity.
Features:
- R04B 315MHz Wireless Receiver Module
- Compact RF module
- Operates at 315MHz frequency
- Designed for wireless data reception
Specifications:
- Product model: R04B
- Working voltage: DC3.3~5V
- Quiescent current: less than 5mA
- Operating frequency: 315mHz
- Receiving sensitivity: -108db
- Receiving distance: more than 45 meters
- Frequency band: 0.2mhz
- Operating temperature: -25 to 75C
- Working mode: inching, self-locking, interlocking
- Output: 4 channels CMOS level signal corresponds to ABCD 4 buttons on remote control pin command
- Length: 30mm
- Total Product Width: 19mm
- Height: 5mm
Package Includes:
1 x R04B 315mHz Wireless Receiver Module
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.
R04B 315mHz Wireless Receiver Module
- Product Code: EC-18394
- Availability: Out Of Stock
-
Rs.123.90
