The MCU integrates multiple series of software- and pin-compatible Arm-based 32-bit cores that share a common set of Renesas peripherals to facilitate design scalability. The MCU in this series incorporates an energy-efficient Arm Cortex-M23 32-bit core, that is particularly well suited for cost-sensitive and low-power applications, with the following features

Note: For More info refer to Datasheet

Features:

1. High-efficiency design
2. Low Power consumption
3. Total of six analog inputs
4. Minimum cycles per instruction design or Advance RISC
5. Programming lock feature for code security
6. Universal Serial Interface feature
7. Two pulse width modulation channels
8. Watchdog programmable Timer & Oscillator

Specifications:

1. Processor: Armv8-M architecture
2. Maximum operating frequency: 48 MHz
3. flash memory: Up to 256-KB code
4. Serial Communications Interface (SCI) 5
5. 12-bit A/D Converter (ADC12)
6. Operating Voltage: 1.6 to 5.5 V
7. Operating Temperature: -40 to +85
8. Tolerance: 5-V

Packages Includes:

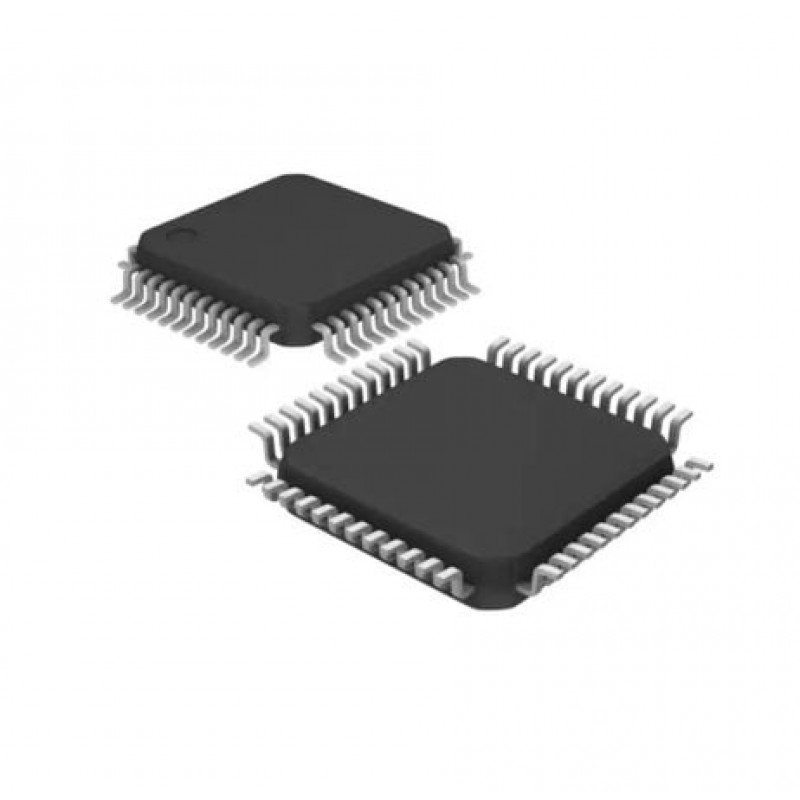

1 x R7FA2L1AB2DFL#AA0 Microcontrollers
