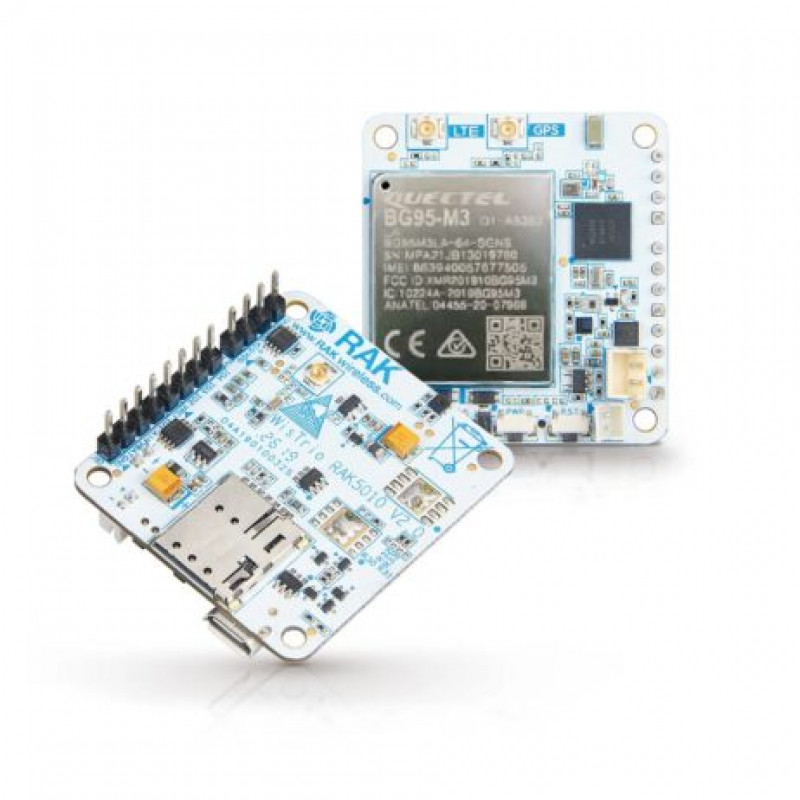

The RAKwireless WisTrio NB-IoT Tracker Pro RAK5010 is an advanced tracking solution designed for seamless integration into Internet of Things (IoT) applications. Utilizing the BG95-M3 NB-IoT module, this tracker provides reliable connectivity for various use cases, including asset tracking, smart logistics, and environmental monitoring.

With its compact design and robust features, the WisTrio NB-IoT Tracker Pro is tailored for applications that require low power consumption and long-range communication, making it an ideal choice for battery-operated devices.

Features:

1. Advanced NB-IoT Connectivity: Equipped with the BG95-M3 module, ensuring reliable and secure data transmission over narrowband IoT networks.
2. Compact and Lightweight: Designed for easy integration into various devices and applications without sacrificing performance.
3. Energy Efficient: Optimized for low power consumption, extending battery life for long-term deployment in remote locations.
4. Real-Time Tracking: Capable of providing accurate and timely location data, enhancing asset visibility and operational efficiency.
5. Wide Application Range: Suitable for use in diverse sectors such as logistics, agriculture, smart cities, and more.
6. Easy Integration: Supports straightforward programming and configuration, making it user-friendly for developers and engineers.

Specifications:

1. Quectel BG95-M3:
   1. Connectivity: LTE CAT M1, LTE NB2, GNSS
2. Nordic nRF52840:
   1. Bluetooth: BLE 5.0, long-range BLE
   2. Microcontroller: Ultra-low-power ARM Cortex-M4 (64 MHz)
3. Built-in Sensors (RAK5010-BG95 Model):
   1. Humidity and temperature sensor
   2. Pressure sensor
   3. 3-axis motion sensor
   4. Ambient light sensor
4. Built-in Sensors (RAK5010-M Model):
   1. Humidity and temperature sensor
   2. 3-axis motion sensor
5. Antenna Connectivity:
   1. iPEX connectors for LTE and GNSS antennas
   2. On-board ceramic antenna for BLE
6. SIM Options: nano-SIM and eSIM compatible
7. Power Supply:3.7V rechargeable battery ,5V solar panel port for battery recharging
8. Interface: I2C ,UART ,GPIO ,ADC

Package Includes:

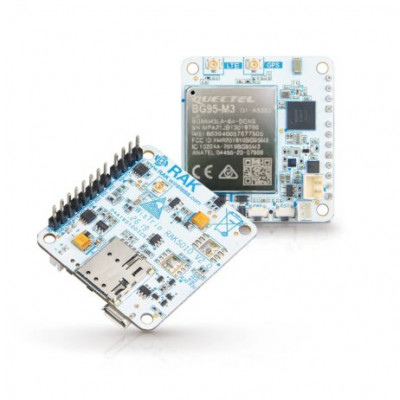

1 x Rakwireless Module Kit-WisTrio NB-IoT Tracker Pro/RAK5010/BG95-M3 WisTrio NB-IoT Tracker Pro RAK5010-M /BG95-M3
