Key Specifications:-

  • Output Voltage-Channel 1         5 VDC
  • Output Voltage-Channel 2         24 VDC
  • Output Current-Channel 1         2.2A
  • Output Current-Channel 2         1A
  • Number of Outputs                   2 Output
  • Output Power                           35 W
  • Type                                        Enclosed Type Dual Output
  • Features                                Standard
  • Series                                RD (Reliable)
  • Mechanical Form                Enclosed
  • Warranty                                3 Years Warranty
  • IP Level                                Non-Waterproof
  • Input Voltage                        88 VAC to 264 VAC, 125 VDC to 373 VDC


Features:-

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • All using 105°C long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 second
  • High operating temperature up to 70°C
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • 3 years warranty


Specifications:-

Manufacturer:         MEAN WELL

Output Voltage-Channel 1:          5 VDC

Output Voltage-Channel 2:         24 VDC

Number of Outputs:         2 Output

Output Power:         35 W

Open Frame/Enclosed: Enclosed

Input Voltage:         88 VAC to 264 VAC, 125 VDC to 373 VDC

Input Current         0.55A/230VAC

Output Current-Channel 1: 2.2 A

Output Current-Channel 2: 1 A

Operating Temperature: -30 TO +70 DEG CEL.

Voltage Adjustable Range:         4.75 ~ 5.5V

Frequency:         47 TO 63Hz

Protection:         Short circuit / Overload / Over voltage

Industry:                 Commercial

Mounting Style:         Chassis

Length:                 99 mm

Width:         82 mm

Height:                 36 mm

Approvals:         EN60950-1

Series:                 RD-35

Model:         RD-35B

Brand:         MEAN WELL

Compliance:         EN60950-1

Unit Weight:         300 g


Related Documents:-

 RD-35 Datasheet

 RD-35B Test Report

 CE Certificate (RD-35)

 UL Certificate (RD-35)

 CB Certificate (RD-35)

 TUV Certificate (RD-35)

 EMC Certificate(RD-35)


Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

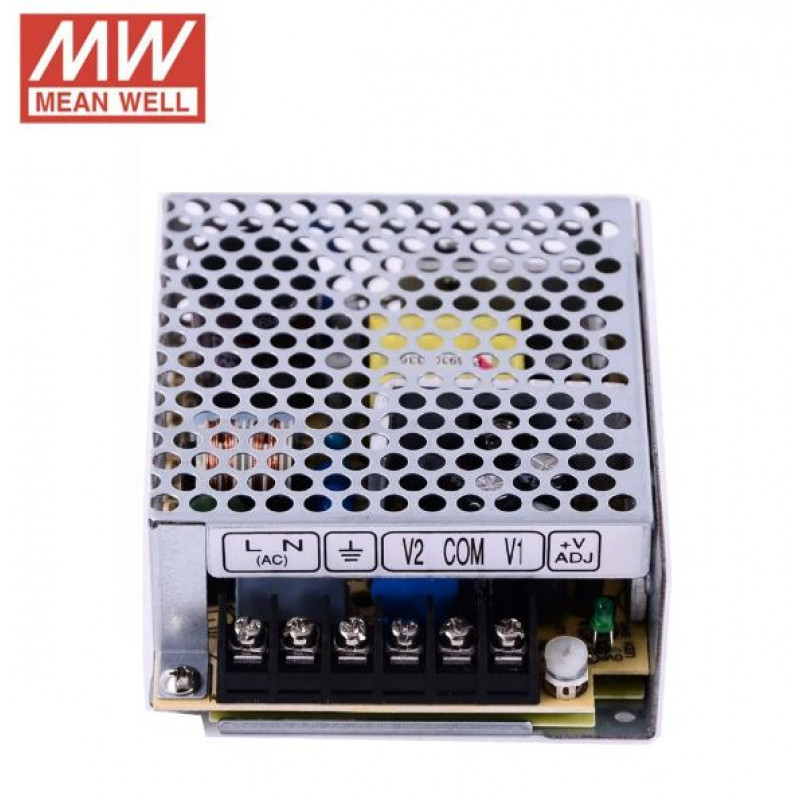

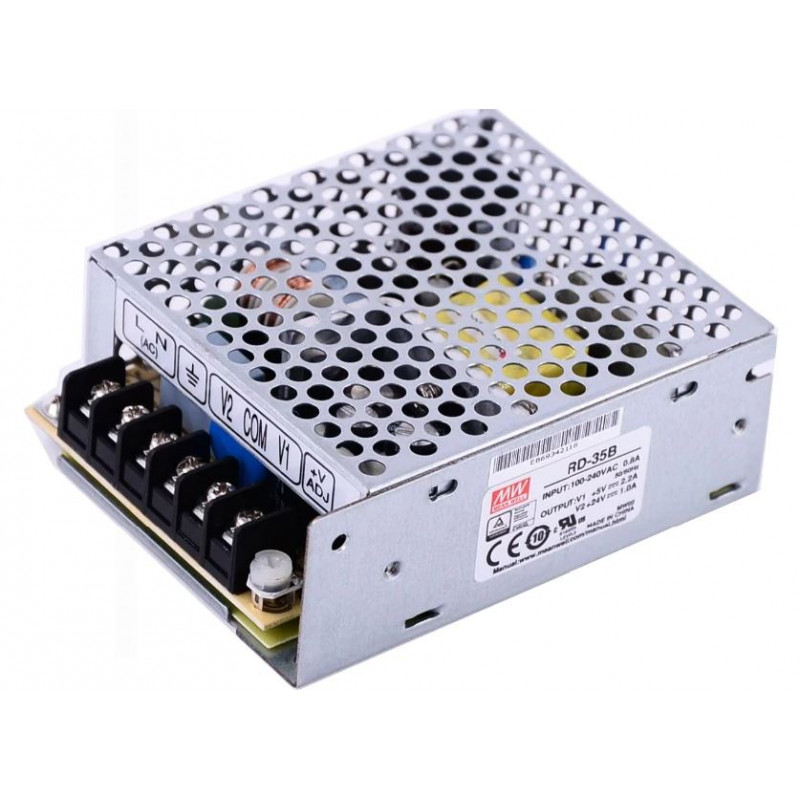

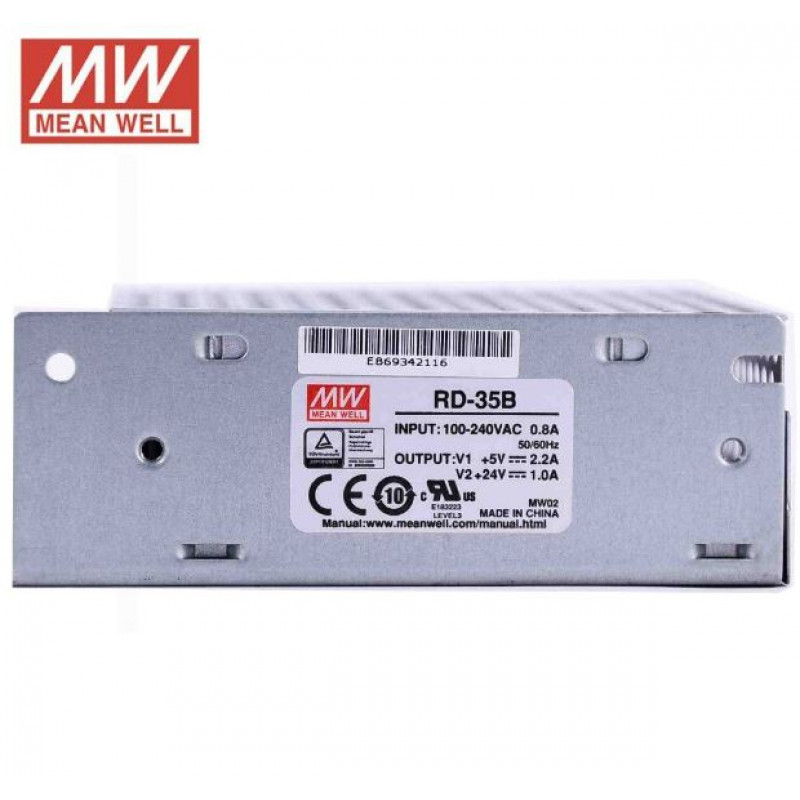

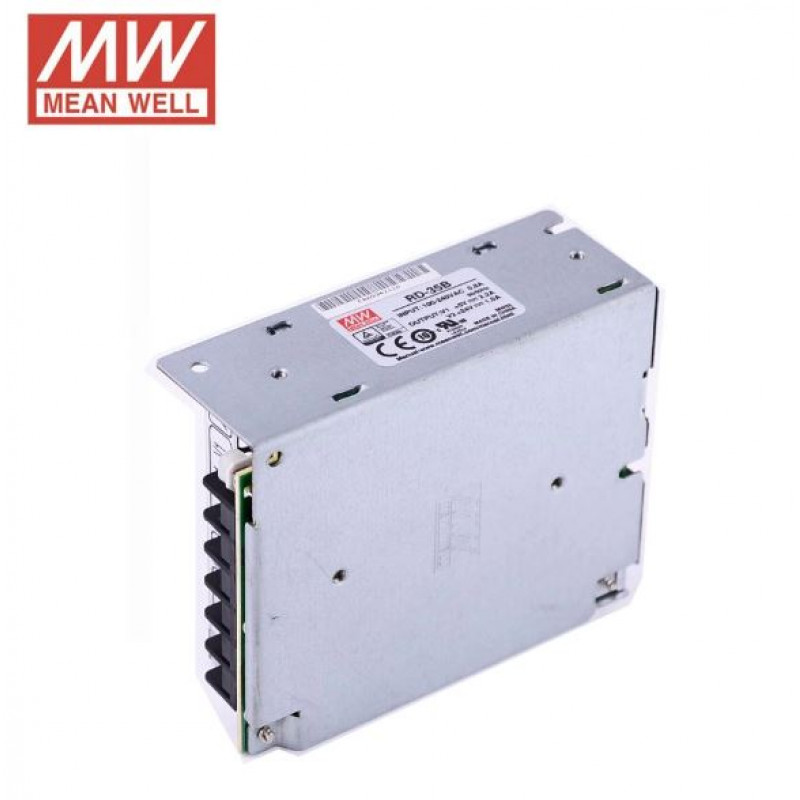

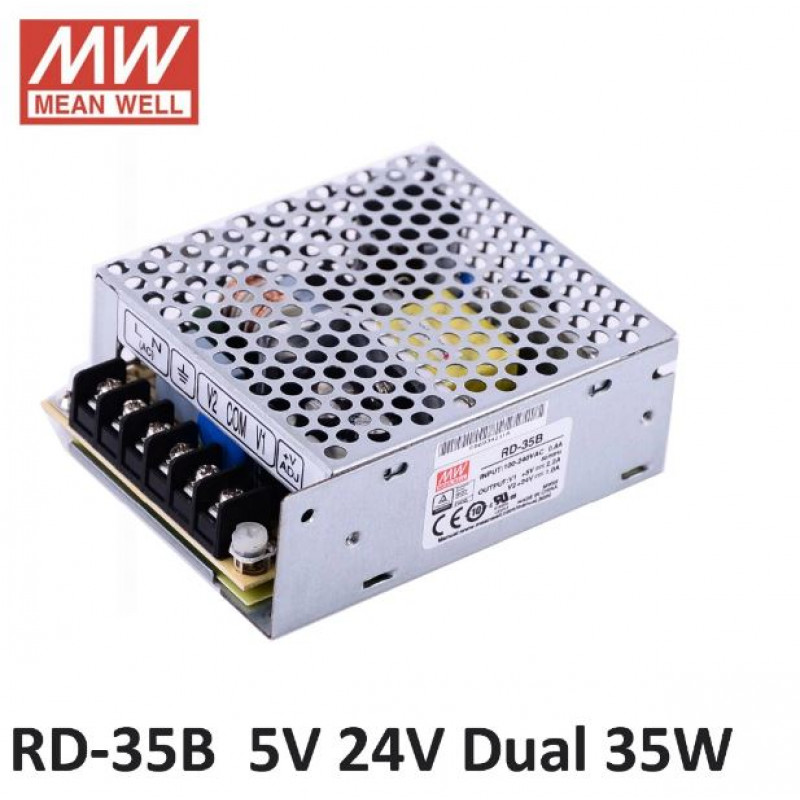

RD-35B Mean Well SMPS 5V 2.2A and 24V 1A - 35W Dual Output Metal Power Supply

  • Product Code: EC-3386
  • Availability: 422
  • Rs.1,125.00
