These connectors are designed to terminate to industry-standard 50 ohm and 75-ohm cables with longer life, perfect designs and durable industry-grade Standards and finish.

Appliance:

• Aerospace and Defense: Hand-held field Device and Instrumentation
• Medical: Instrumentation
• Commercial Vehicle: Bluetooth and GPS
• Telecommunications: Wireless Base Stations, Cellular Mobile System
• Data/Communications: Wifi, WiMAX
• Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

Features:

1. SMA Connector,50 Ohm, Male, Solder Type, Cable Connector, Straight/180
2. Excellent electrical performance up to 18GHz with low reflection;
3. Thread type coupling mechanism ensure small loss and high security in compact design;

Specifications:

Electrical Characteristics

1. Impedance 50 ohm
2. Frequency Range: 0~6 GHz
3. VSWR: Straight type 1.3max / R/A type 1.5max
4. Dielectric Withstanding Voltage:1000 V rmsmin for RG142, RG405
5. 750 V rms min. for RG316, RG402
6. 500v rms min. for RG178
7. Working Voltage: 500 V rms max. for RG142, RG405
8. 375 V rms max. for RG316, RG402
9. 170 V rms max. for RG178
10. Center Contact Resistance 6.0 m (Milliohms max.)
11. Outer Contact Resistance 2.0 m (Milliohms max.)
12. Insulation Resistance 5 x 10 m (Megohms min.)

Mechanical Characteristics

1. Coupling: 1/4-36 thread
2. Contact Retention: 15 in-lbs min.
3. Coupling nut torque: 30 in-lbs. min.
4. Durability(mating) 500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

1. Temperature Range: -55C ~ +155C
2. Vibration: MIL-STD-202 Meth.204
3. Corrosion resistance: MIL-STD-202 Meth. 101

Package Includes:

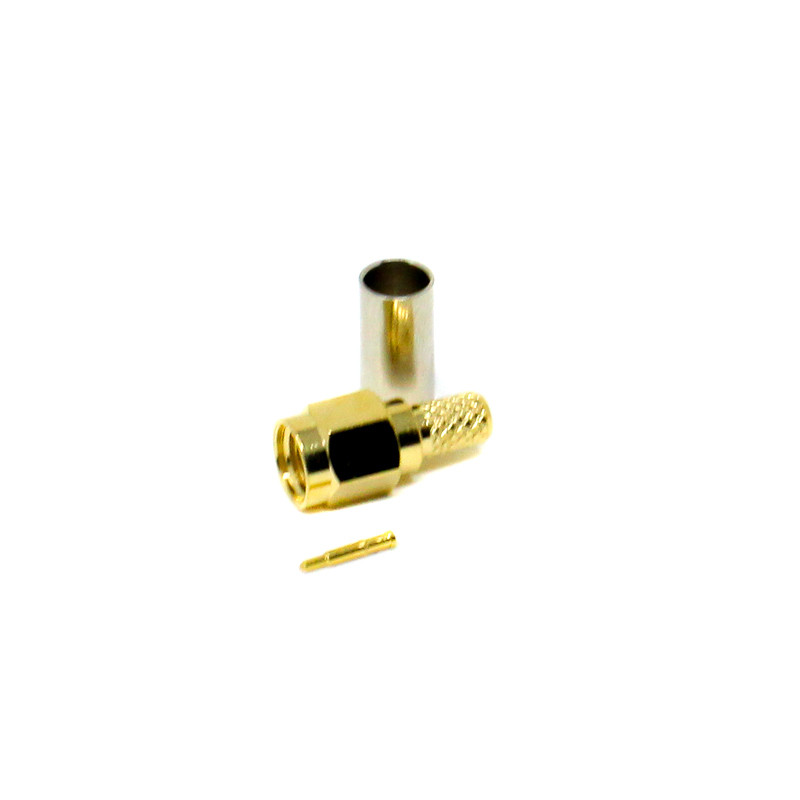

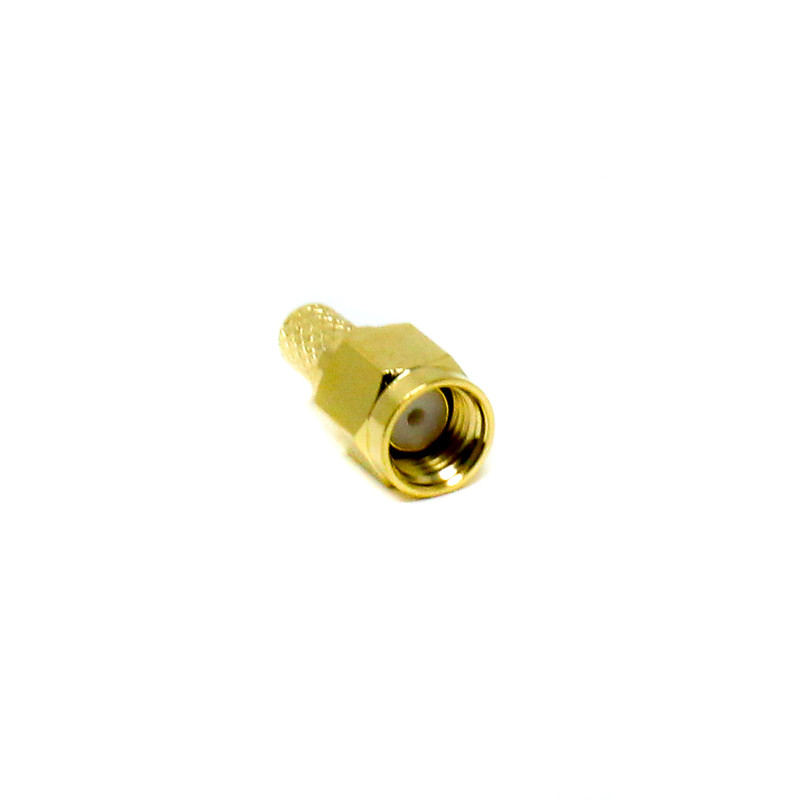

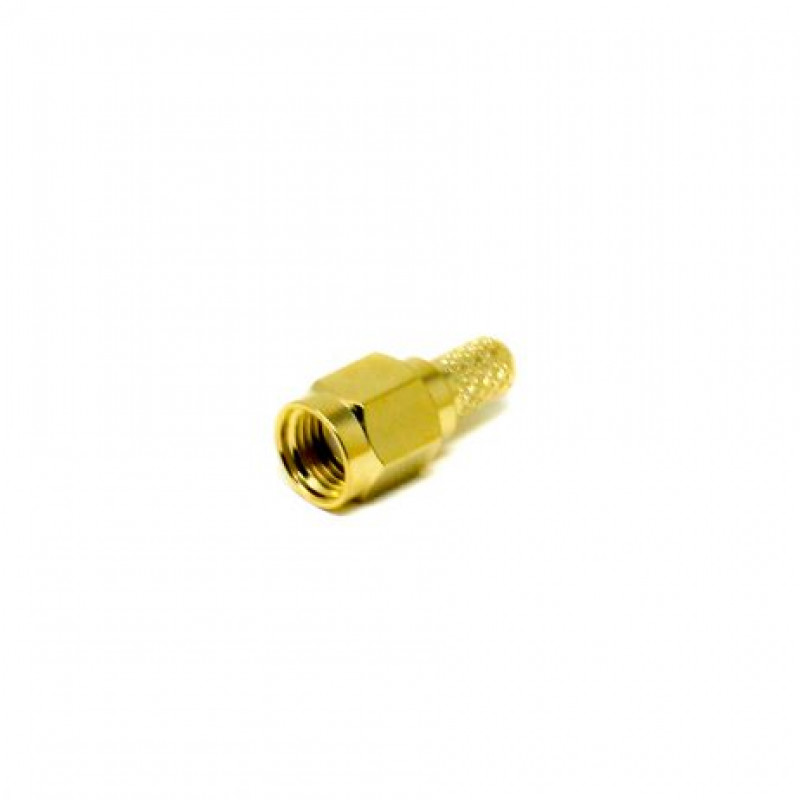

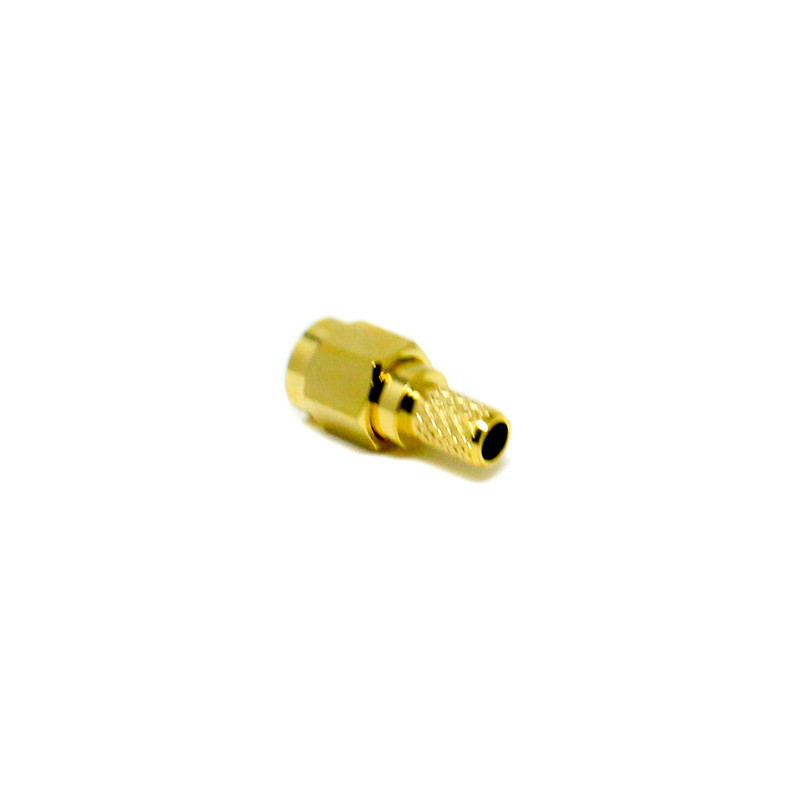

1 x Male SMA Solder Type Straight Nickel Plating Connector For Coaxial Cable

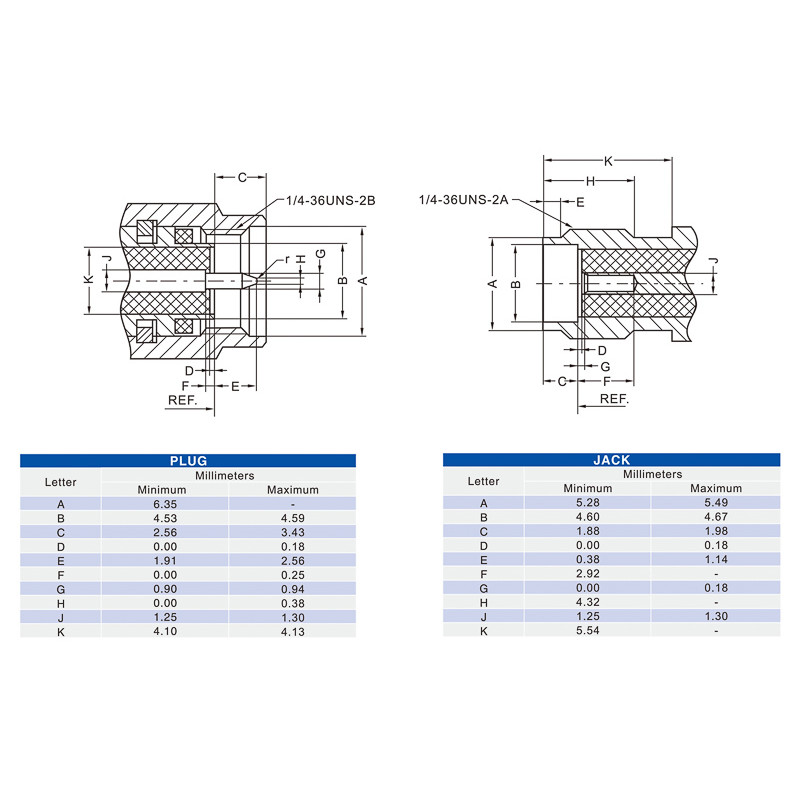

Specifications:
