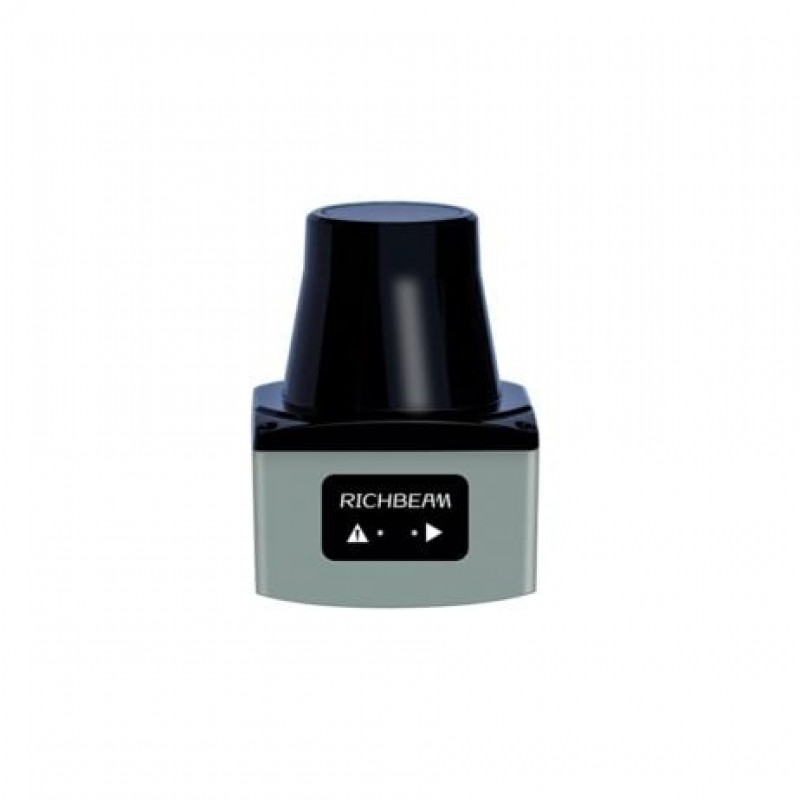

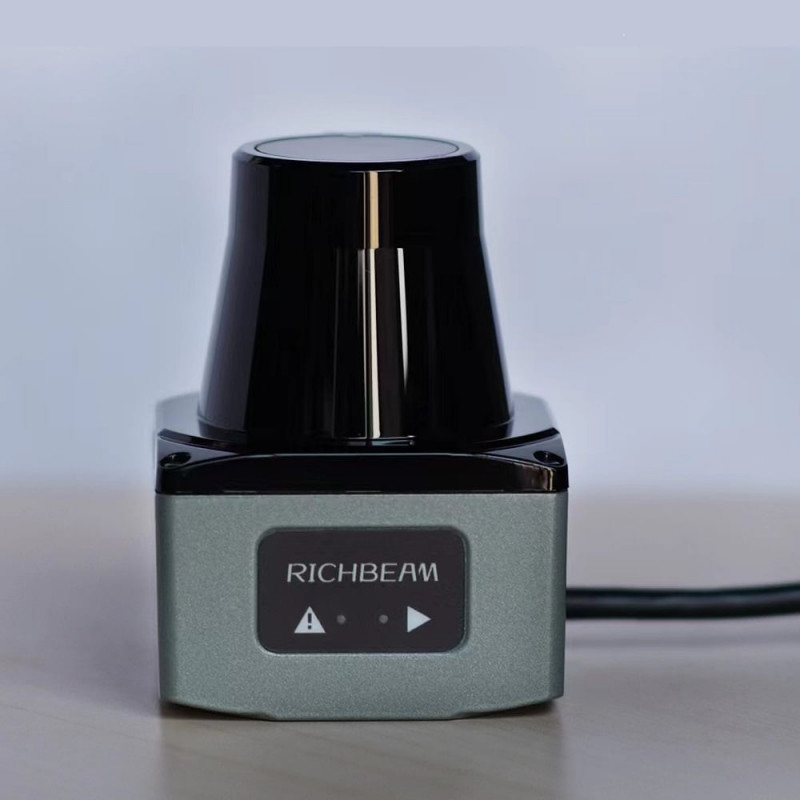

LakiBeam1 is a long-range single-line LiDAR developed by Richbeam for medium and low-speed scenes, which is designed based on the principle of pulsed time of flight (pToF). The product is composed of lasers, photodetectors, optical systems, timers, etc. The laser uses the invisible 940nm band and meets the Class 1 level specified by the IEC60825-1 standard to ensure the safety of the human eye when the product is working.

Its industrial-grade sophisticated design makes the product compact, small in size, stable in performance, supports ultra-high frequency sampling and optional angular resolution and
achieves zero blind spots within the detection range. The high-quality motor and lightweight scanning mirror design ensure that the product can work stably for a long time and create maximum value for users.

Applications: LakiBeam1 can be used in industrial automation, and port automation. It is widely used in AGV
obstacle avoidance as the main laser of indoor robots and the oblique laser of outdoor robots for mapping and obstacle avoidance.

Features:

1. Time-of-flight (TOF) technology: Uses laser pulses and measures the time it takes for the pulse to bounce back from an object to calculate the distance to the object.
2. 2D scanning: Can generate high-resolution 2D maps of the surrounding environment.
3. Range: Has a range of up to 40 meters.
4. Compact design: The sensor is small and lightweight, making it easy to install and integrate into various applications.
5. Ruggedized construction: The sensor is designed to withstand harsh industrial environments, with a protective housing that is IP65 rated for water and dust resistance.
6. Low reflectivity detection: Can detect objects with low reflectivities, such as dark or matte surfaces.
7. Easy to use: Can be easily configured and controlled via software
8. Wide field of view: The sensor has a wide field of view, allowing it to capture a large area in a single scan.

Package Includes:

1 x Richbeam Lakibeam1 Industrial TOF 2D LiDAR
