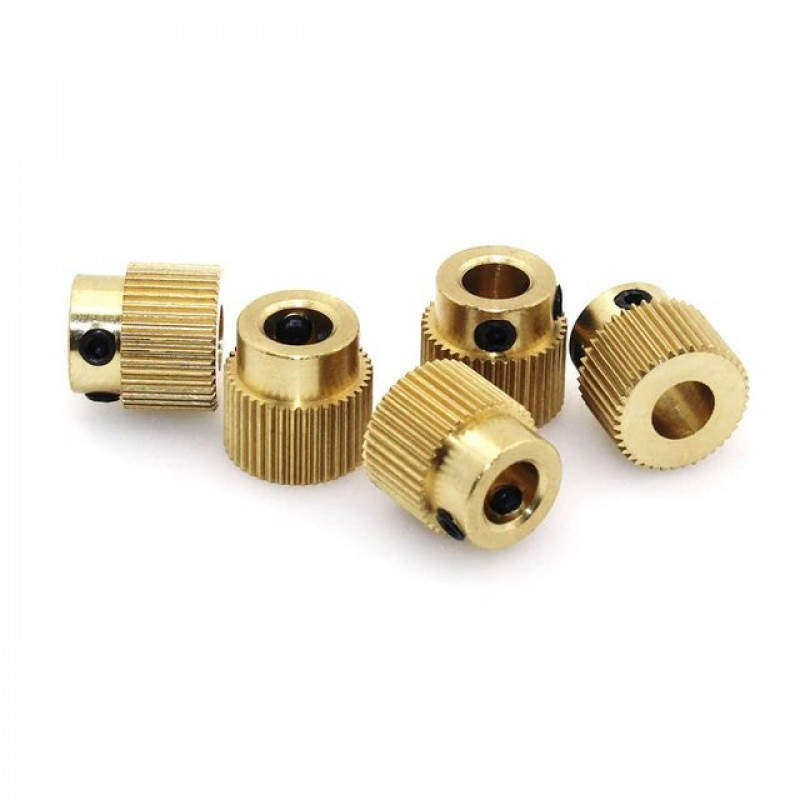

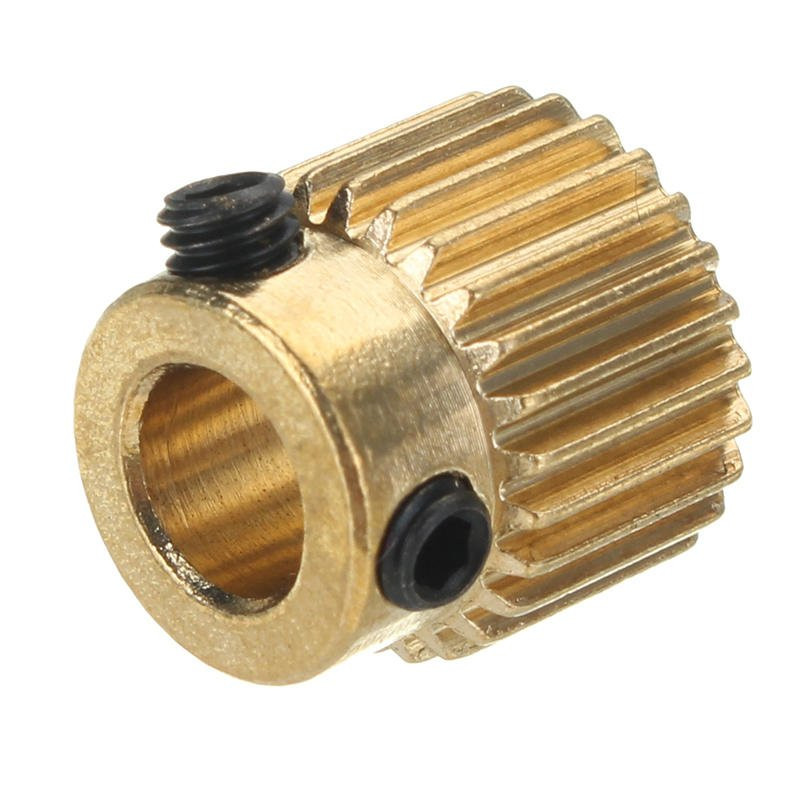

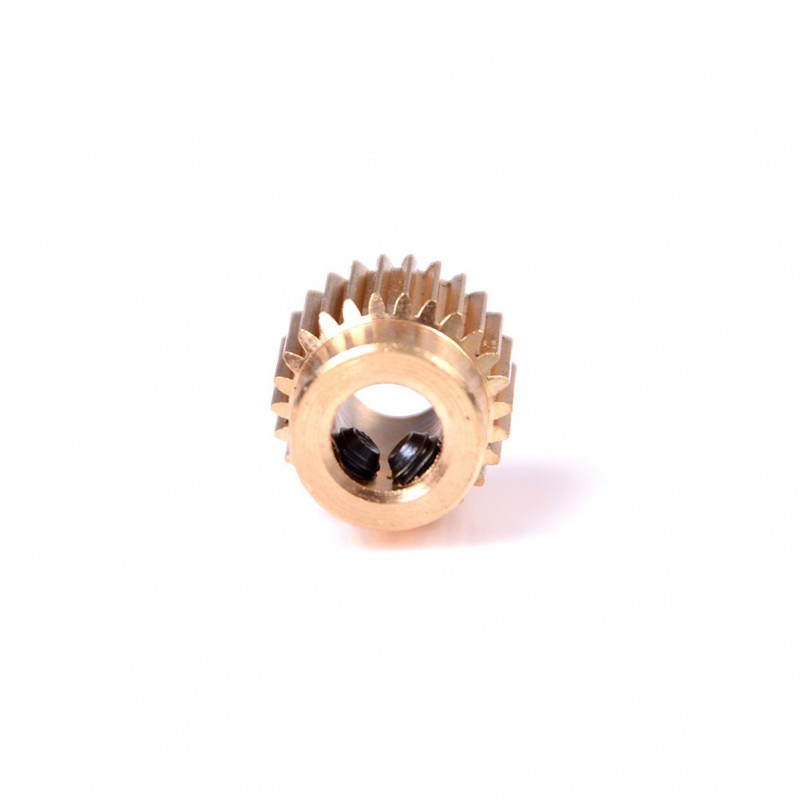

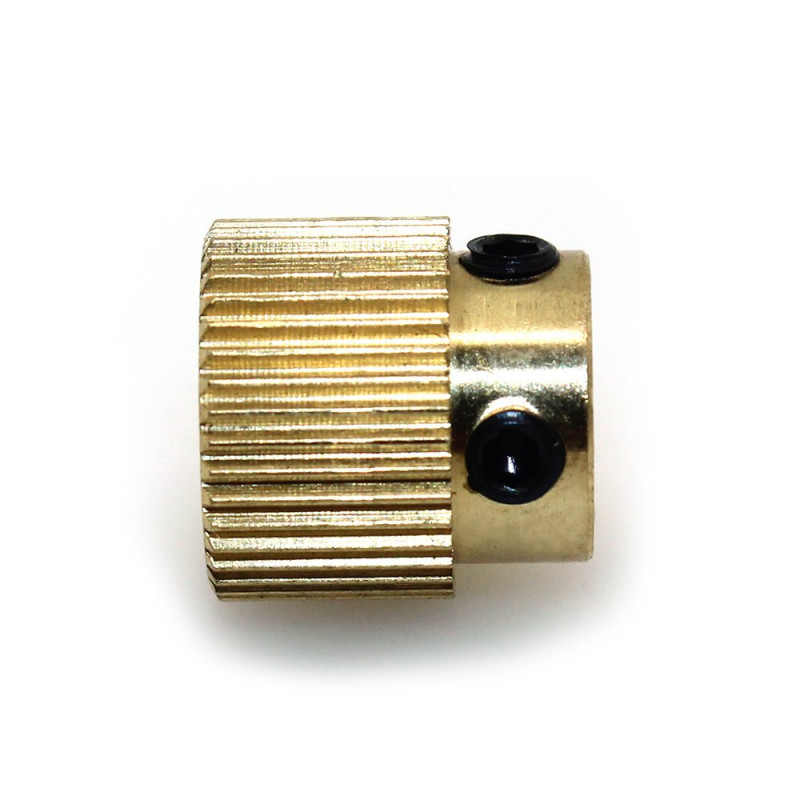

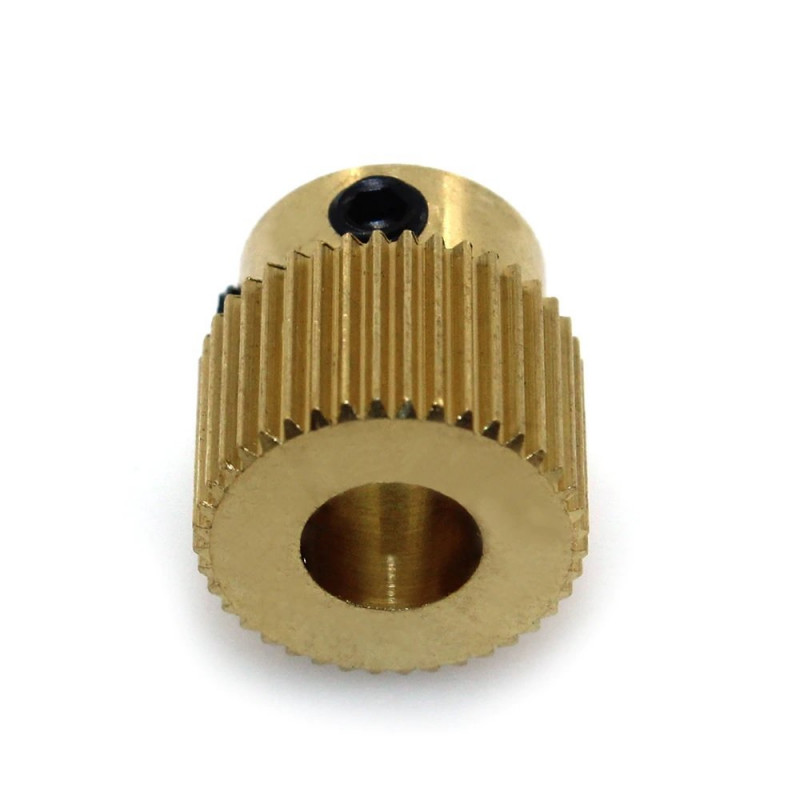

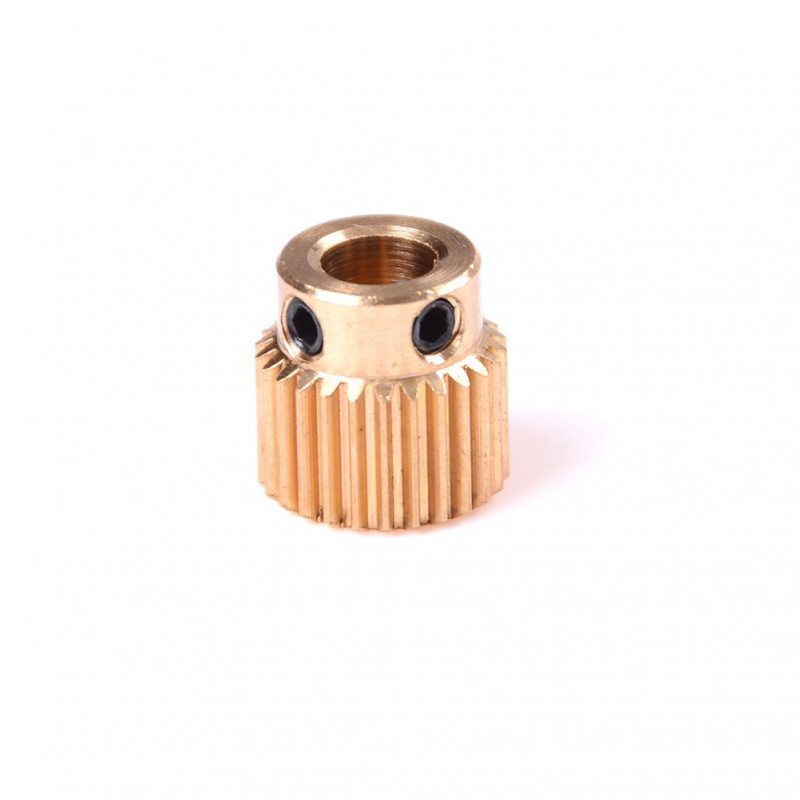

This is a 26 Tooth Extruder Drive Gear that fits into extruder assemblies and firmly grips the 3D Printing Filament to move it towards or away from the hot end assembly. It is capable of high torque without damaging the filament, and fits directly onto the shaft of NEMA 17 Stepper Motors, making it simple to install but effective at assisting with consistent extrusion.

These particular Extruder Drive Gears are made for the All type of 3D printer extruders and ensure that the filament is moved into the melt zone when extrusion is happening while pulling it back when the hot end is moving across the print bed. This translates to smooth and consistent extrusion, with improved print quality, and reduces the chances of clogging or similar problems. Although this is a basic little part, it is a vital part of the extruder system and counteracts the back-pressure of the melted filament within the hot end assembly.

Typical Applications For The Extruder Drive Gear is for extruder Drive Gear is designed to fit the TEVO Tarantula, but could be used on many other similar 3D Printers, or even in different machines altogether. It is made from brass, which is durable but soft enough to prevent filament damage, and has a tiny form factor to easily fit without requiring any extra modifications.


Features:

  1. Suitable for 1.75 mm. filament.
  2. Widely used in desktop FDM 3D printers.

Package Includes:

1 x26 Teeth Universal Stainless Steel Extrusion Gear for 3D Printer

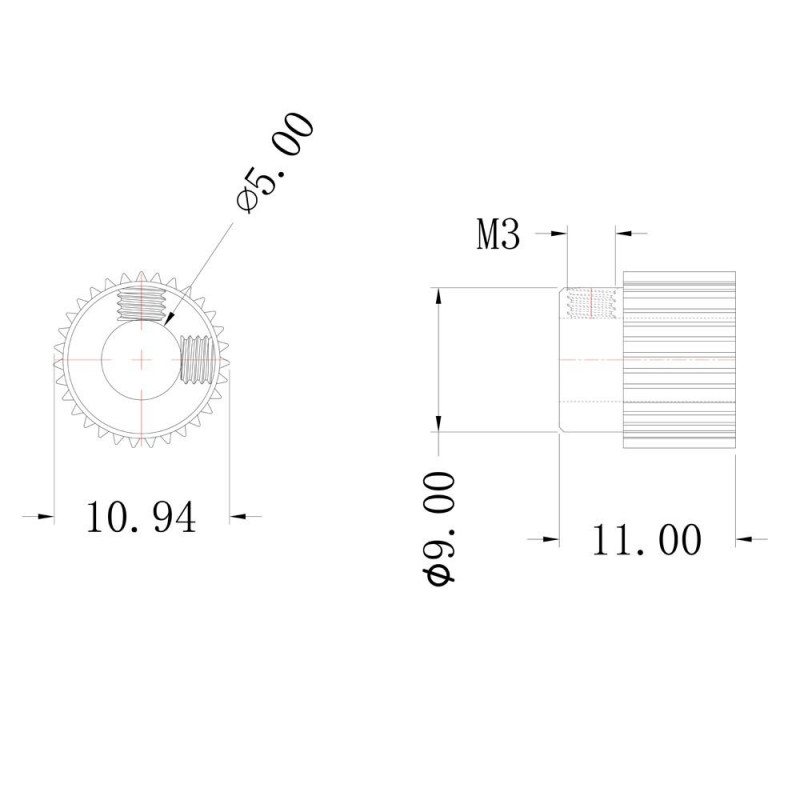

Specifications :-

Inner Diameter

5 mm

Gear Toothed Length

7mm

Outer Diameter

11mm

Size (LxW)

11mm x 11mm

Number of Tooth

26 Teeth

Material

Stainless Steel

Weight (gm)

26


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 56.64 (Inclusive of all Taxes)
