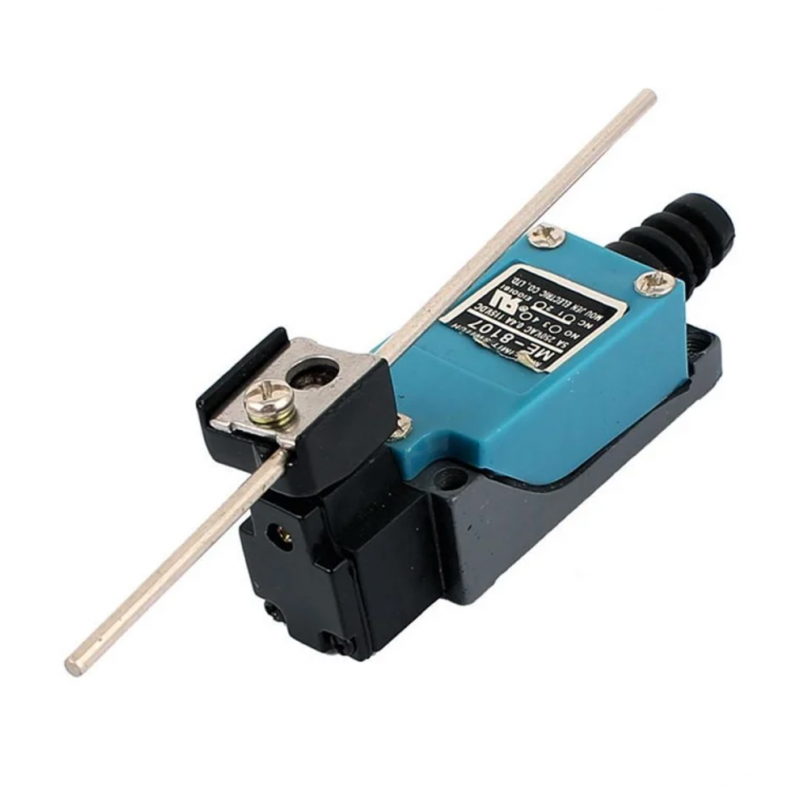

  • ME-8107 Rotary Adjustable Roller Mini Limit Switch

ME-8107 Rotary Adjustable Roller Mini Limit Switch also named the POSITION SWITCH, is a commonly used small current main electrical appliances, the contact action is realized through the collision of the moving parts of the production machinery or segmented control circuit, achieve a certain control target.

Perfect for electrical control switches in mechanical and other industries. This Limit Switch can be widely used in various machines to monitor the position of moving parts of machines and plants. Please pay attention to the Voltage Rating and check with the voltage of your place to make sure the Limit Switch successfully works.


  1. Actuator action: momentary.
  2. Actuator-type rotary adjustable lever arm with a roller.
  3. Contact configuration 1 NC + 1 NO.
  4. Actuator Type Adjustable Rod Arm


  1. Model: ME-8107
  2. Action Type: Momentary
  3. Contact Type: DPST
  4. Contact Configuration: 1 NC + 1 NO
  5. Mounting Hole Spacing: 56 x 21mm
  6. Rating: AC 250V/5A DC 115V/0.4A
  7. Rod Length: 140mm
  8. Cable Entry Diameter: 6mm
  9. Mounting Thread Diameter: 4.5mm
  10. Main Color: Blue, Black
  11. Material: Plastic, Metal, Rubber
  12. Main Body Size: 64 x 28 x 25mm
  13. Net Weight: 85g

Package Includes:

1 x ME-8107 Rotary Adjustable Roller Mini Limit Switch

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 230.1 (Inclusive of all Taxes)
