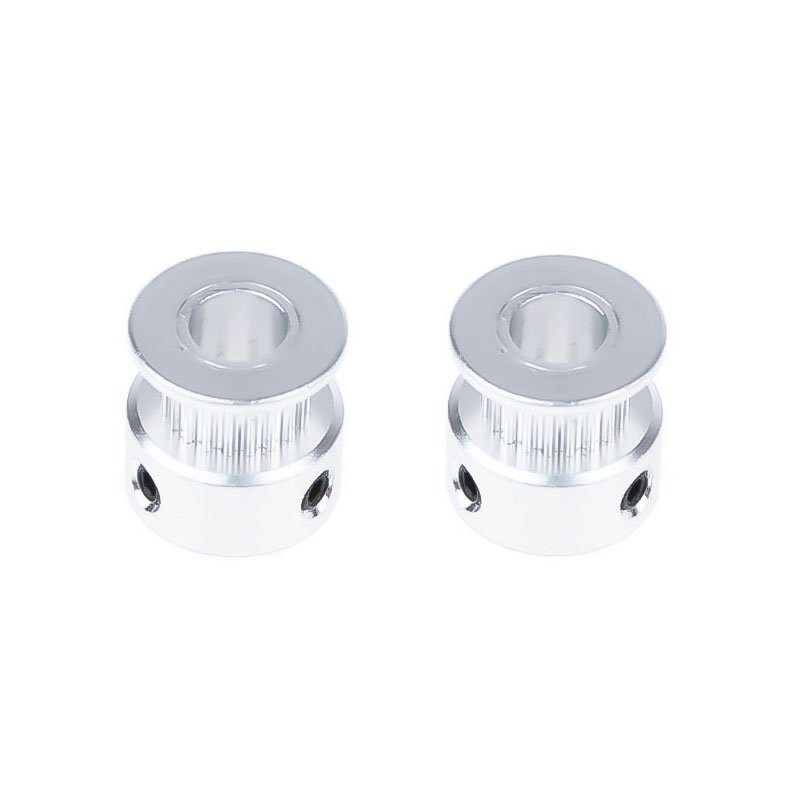

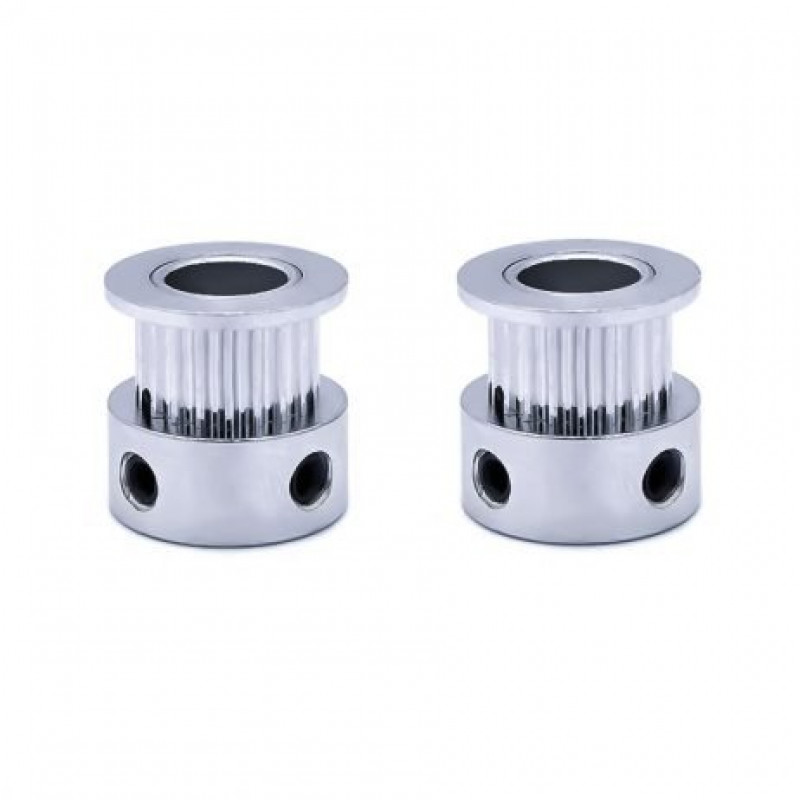

This is Aluminum GT2 Timing Pulley 20 Tooth 8mm Bore For 6mm Belt. For precise motion control, GT2 belts and pulleys offer excellent precision at a great price. This pulley is meant for use with GT2 6mm wide belts only MXL belts will slip due to the different tooth profile.
This pulley has 20 teeth and an 8mm inner bore. Two set screws can be used to attach it firmly to any 8mm diameter shaft. Full aluminum construction means these are very light and very durable.
Package Includes :
1 x Aluminum GT2 Timing Pulley 20 Tooth 8mm Bore For 6mm Belt
1 x (M4x4)Grub screws
Specifications :-
| Material | Aluminium |
| Inner Diameter (ID) (mm) | 8 |
| Outer Diameter (OD)(mm) | 16 |
| Width (mm) | 16 |
| Compatible With | M4x4 |
| No. of teeth | 20 |
| Weight (gm) | 8 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Aluminum GT2 Timing Pulley 20 Tooth 8mm Bore for 6mm Belt
- Product Code: EC-7144
- Availability: 103
-
Rs.166.38
