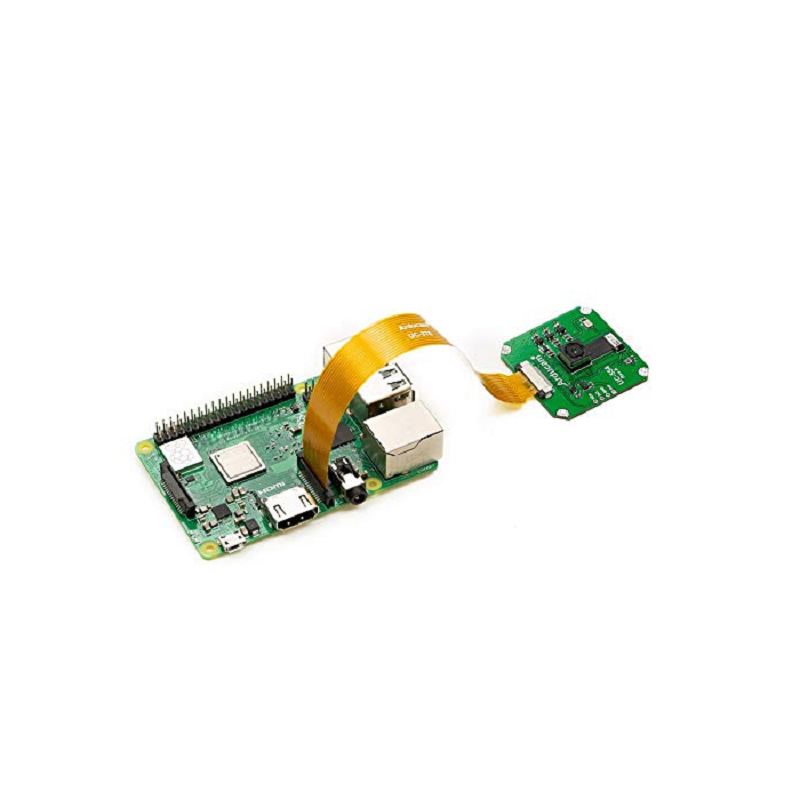

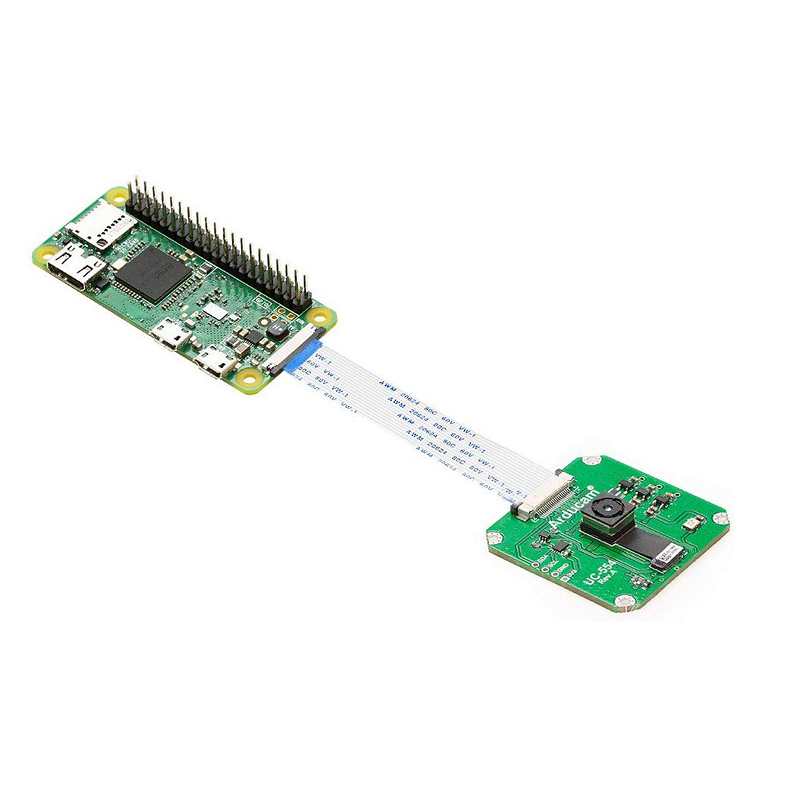

The Arducam 13MP MIPI camera module is mainly designed for Raspberry pi boards and it can be connected directly to RPis CSI-2 camera interface without additional hardware.
This camera is based on a 1/3 inch Sony IMX135 image sensor which adopts Exmor-R technology to achieve high-speed image capturing with high sensitivity and low noise performance. RGBW coding colour filter is employed and RGB primary colour mosaic is reproduced on-chip. High sensitivity, low dark current, and smear-free features are achieved. It equips an electronic shutter with variable integration time.
This MIPI camera module can be used on other ARM, FPGA, DSP, or Nvidia TX1/TX2 hardware platform as well.
Application:
- Cellular phones
- Toys
- PDAs
- Other battery-powered products
- ARM/FPGA/DSP based platforms
Features :
- 1/3 inch Back-illuminated Sony Exmor-R sensor IMX135
- Support 13MP/1080p/720p resolution, RAW8/RAW10 output
- CSI-2 serial data output (MIPI 2Lane/4Lane selectable)
- 2-wire I2C communication for sensor register settings
- High sensitivity, low dark current, no smear, excellent anti-blooming characteristics
- Image compensation processing functions (defect correction, noise reduction)
- RGBW coding (R, G, B, and White(achromatic)) colour filter and RGB primary colour mosaic reproduction on chip
- Programmable motorized focus lens, FOV 60 degrees
- Support all series Raspberry pi boards
Package Contents :
1 x Arducam 13MP IMX135MIPI Colour Camera Module for Raspberry Pi
1 x 150mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable
1 x 80mm 22pin 0.5mm pitch FPC cable
Specifications :-
| Image Sensor | IMX135 |
| Resolution | 13 MP |
| Lenses Viewing Angle (FOV) | 60 |
| Focus Type | Auto, Fixed |
| Shutter Type | Rolling Shutter |
| Length (mm) | 40 |
| Width (mm) | 40 |
| Height (mm) | 15 |
| Weight (gm) | 20 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.

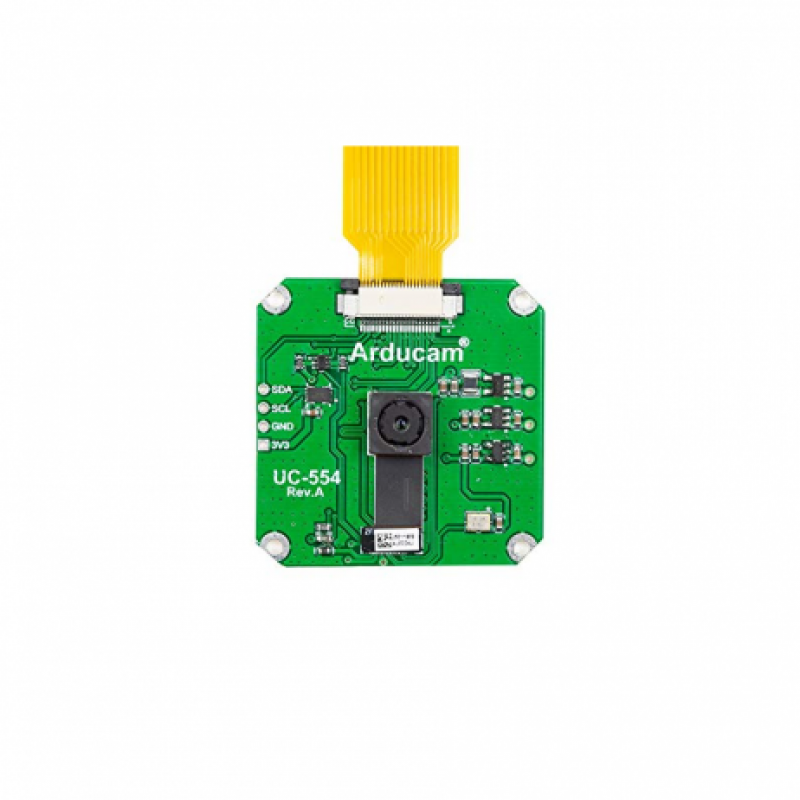

Arducam 13MP IMX135MIPI Colour Camera Module for Raspberry Pi
- Product Code: EC-9113
- Availability: Out Of Stock
-
Rs.5930.68
