Stereo vision systems give the robots depth perception skills, which make artificial machines and systems develop an understanding of their environment by estimating the relative distance of objects in their vision from many visual cues. Hence, stereo vision is used in many areas of robotics, such as self-driving cars, drones for rescue missions, robots for remote surgery.

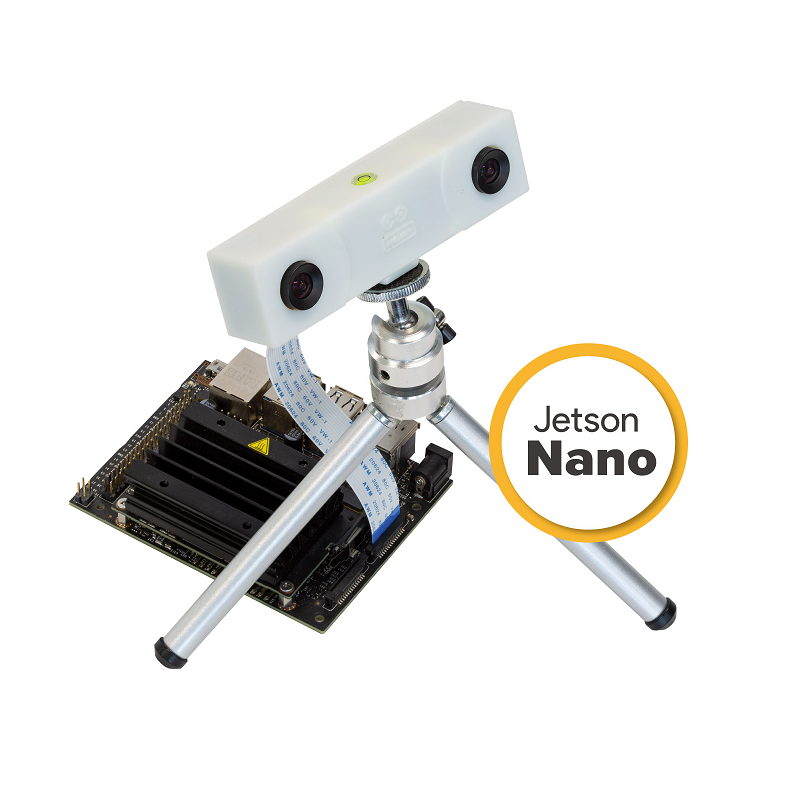

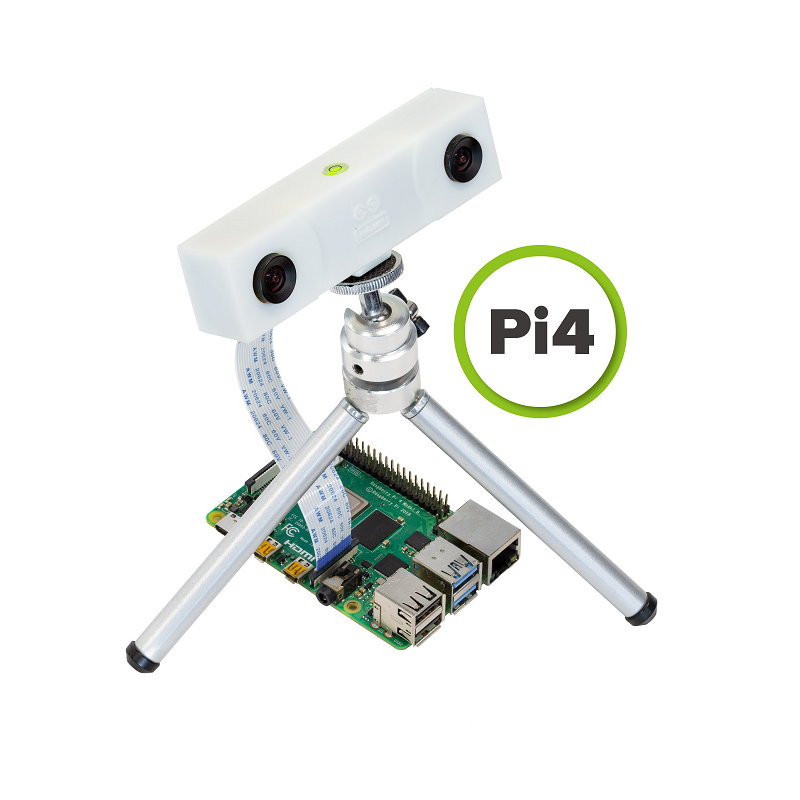

Arducam released this Stereo Camera MIPI Module Series for Raspberry Pi and Jetson Nano/Xavier NX. They directly connect to the MIPI CSI-2 connectors of the motherboards and run with a V4L2 camera driver on those platforms. They offer better flexibility to be integrated into your own hardware design or run with your own algorithm on embedded systems for applications like depth sensing, 3d mapping, SLAM, etc.

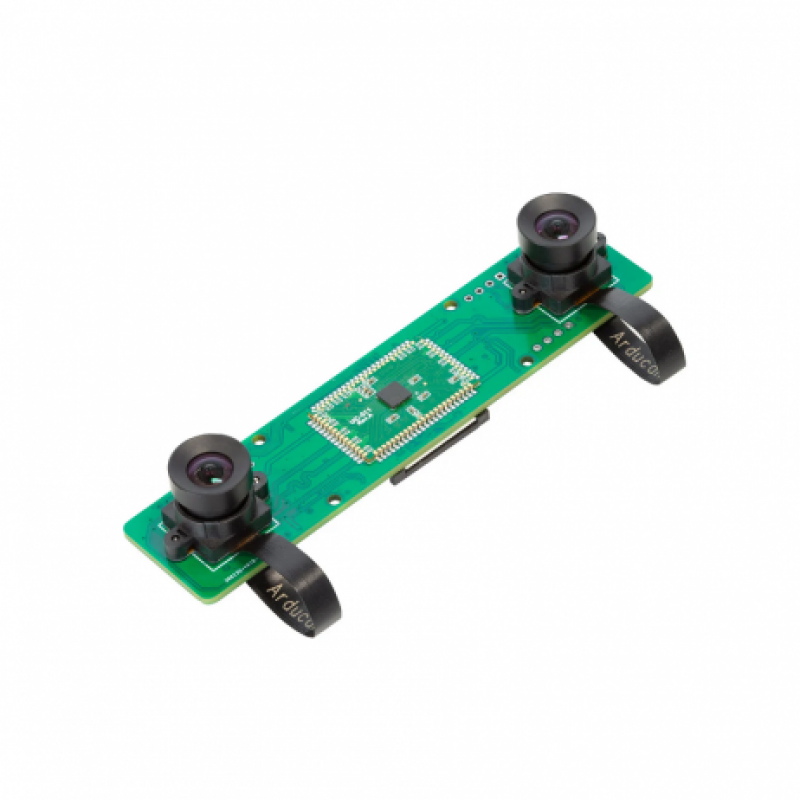

This Arducam 2MP Stereo Camera MIPI Module is a stereo camera module with two synchronized monochrome global shutter OV2311 image sensors (2x2MP). The monochrome sensors capability of excellent detail and sensitivity allows it to get higher accuracy and frame rates in extracting depth information.

  1. Depth sensing
  2. 3d mapping
  3. SLAM
  4. 360 camera
  5. VR / AR application


  1. Sensor: Dual Monochrome global shutter OV2311
  2. Pixel Size: 3 m x 3 m
  3. Active Array Size: 1600 x 1300
  4. Optical Size: 1/2.9 inch
  5. Focus Type: Fixed focus
  6. Focusing Range: 30mm ~ infinite
  7. Output Interface: 2-lane MIPI serial output
  8. Output Formats: 8-bit/10-bit RAW
  9. Maximum Image Transfer Rate: 2*[email protected]x 1300
  10. Lens: Default low distortion M12 lens (Part Number: M27280M07S)
  11. EFL: 2.8, F.NO: 2.8, HFOV: 83 Deg.
  12. IR Sensitivity: Sensitive to IR, No IR filter

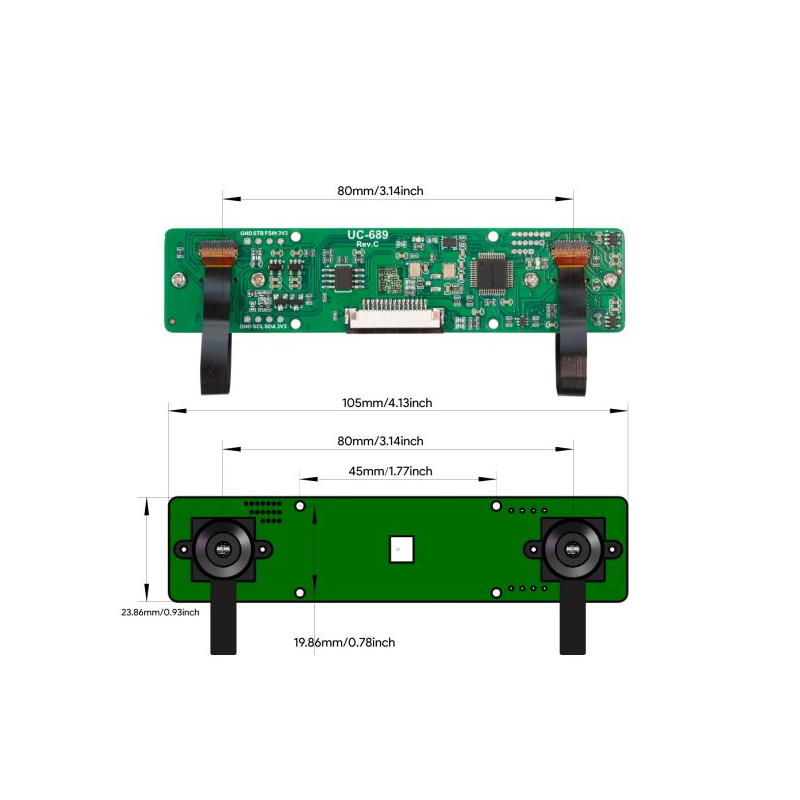

  13. Board Size: 105(L) x 24(W) x 20.1(H) mm

Package Includes:

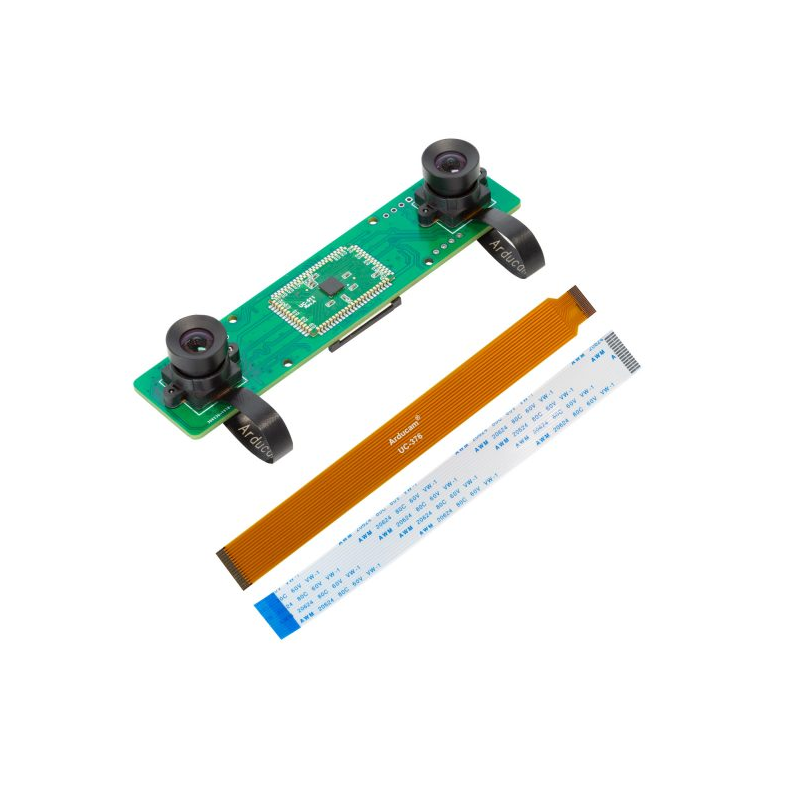

1 x Arducam 2MP Stereo Camera for Raspberry Pi Nvidia Jetson Nano-Xavier NX with Dual OV2311 Monochrome Global Shutter

1 x 150mm 15pin 1.0mm pitch FPC cable

1 x 150mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable

Specifications :-

Image Sensor

Dual Monochrome global shutter OV2311

Pixel Size (um)

3 x 3

Lenses Viewing Angle (FOV)


Pixel Resolution

1600 x 1300

Length (mm)


Width (mm)


Height (mm)


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 15964.22 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

Arducam 2MP Stereo Camera for Raspberry Pi Nvidia Jetson Nano-Xavier NX with Dual OV2311 Monochrome Global Shutter

  • Product Code: EC-9114
  • Availability: 3
  • Rs.16399.00
  • (Excluding 18% GST)
