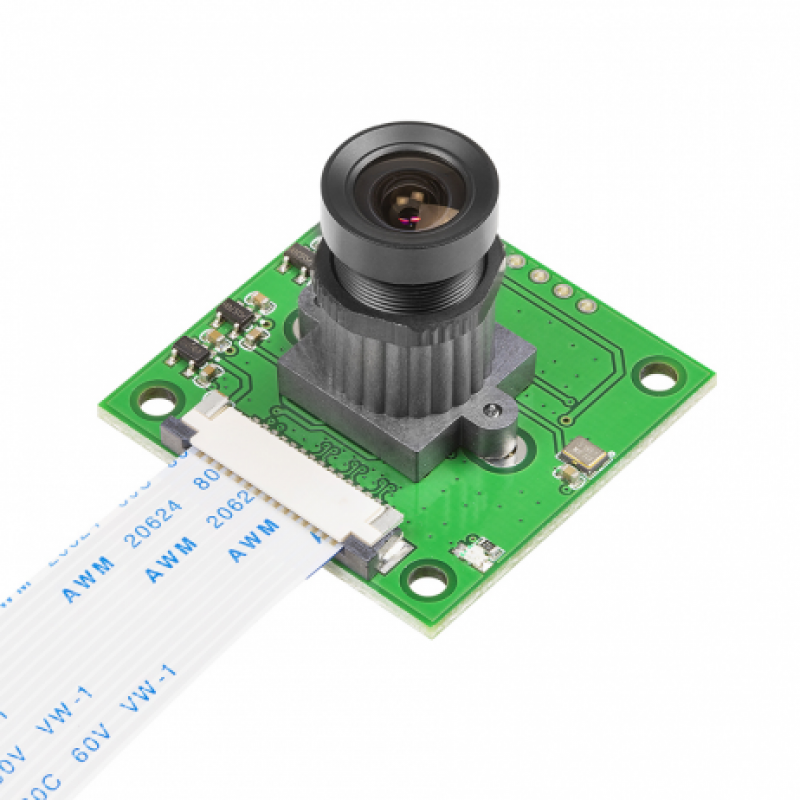

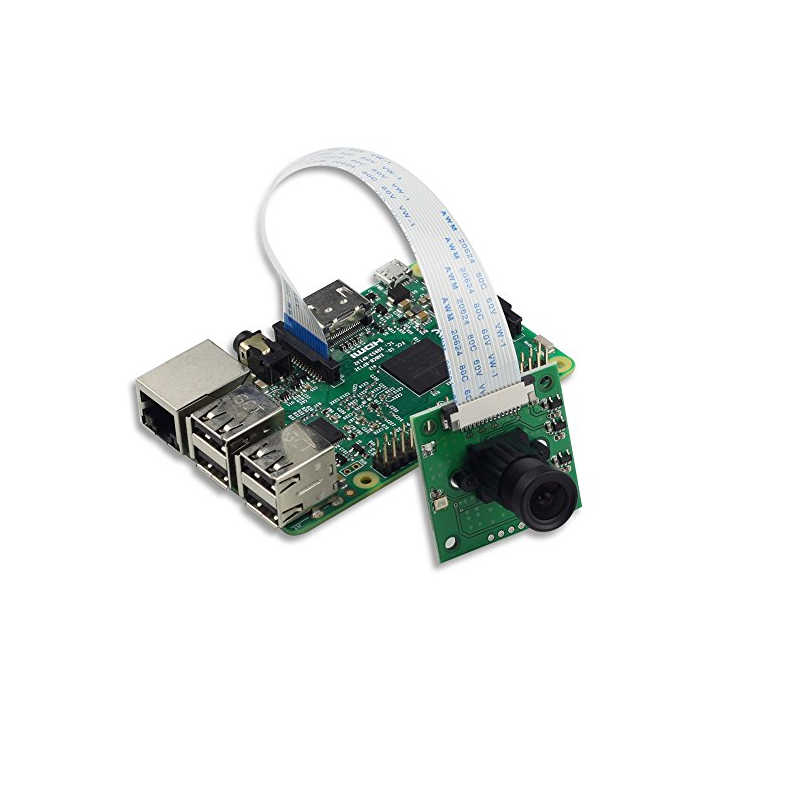

Arducam OV5647 Camera Board with LS-40180 Fisheye Lens M12x0.5 Mount is a custom designed add-on for Raspberry Pi. It attaches to Raspberry Pi by way of one of the two small sockets on the boards upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing to cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data. The camera is connected to the BCM2835 processor on the Pi via the CSI bus, a higher bandwidth link that carries pixel data from the camera back to the processor. This bus travels along the ribbon cable that attaches the camera board to the Pi.
The camera is supported in the latest version of Raspbian, Raspberry Pi's preferred operating system.


Note: Raspberry Pi is not included with the product you have to purchase it separately


Application:
  1. Cellular phones, PDAs, Toys
  2. Other battery-powered products
  3. Where the official module fails in terms of focusing and Field of View, etc.

Features:

  1. Lens holder: M12x0.5
  2. 5MPixel sensor
  3. Integral IR filter
  4. Max frame rate: 30fps
  5. Connection by a flat ribbon cable to 15-pin MIPI Camera Serial Interface (CSI) connector S5 on Raspberry Pi computer board
  6. The Camera Lens for Raspberry Pi Camera Board is HX-27227
  7. OmniVision 5647 sensor in a fixed-focus module with replaceable Lense

Package Includes:

1 x Arducam 5MP OV5647 Camera Board with LS-40180 Fisheye Lens M12x0.5 Mount for Raspberry Pi



Specifications :-

Operating Voltage (VDC)

3.3 ~ 5

Lense Viewing Angle (FOV)

56

Resolution

5 MP

Pixel Resolution

2592 x 1944

Focal Length (mm)

4

Length (mm)

36

Width (mm)

36

Weight (gm)

30



Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 3420.82 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

Arducam 5MP OV5647 Camera Board with LS-40180 Fisheye Lens M12x0.5 Mount for Raspberry Pi

  • Product Code: EC-9136
  • Availability: 6
  • Rs.2204.00
  • (Excluding 18% GST)
