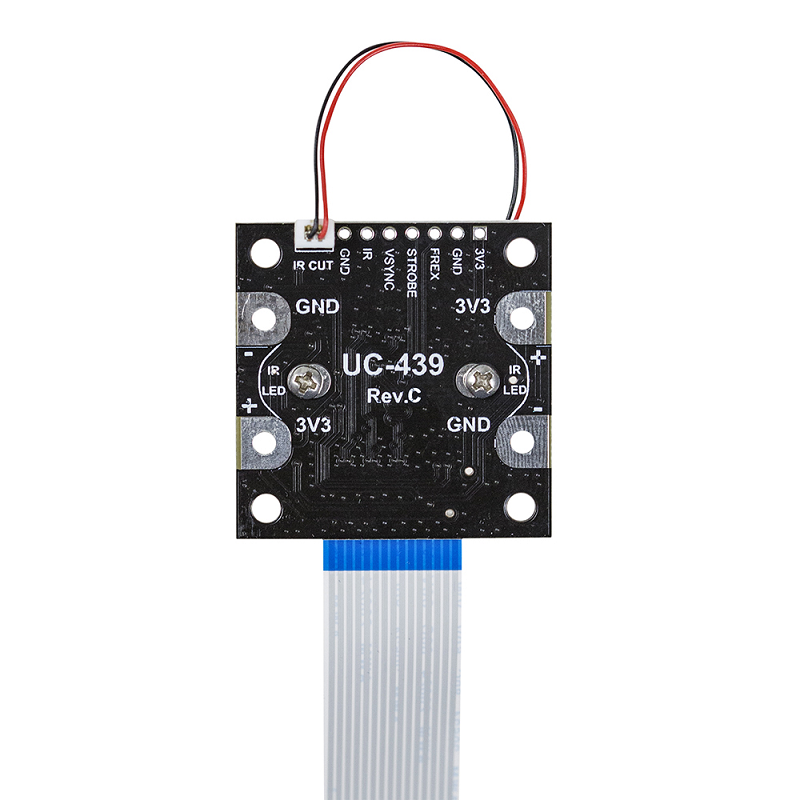

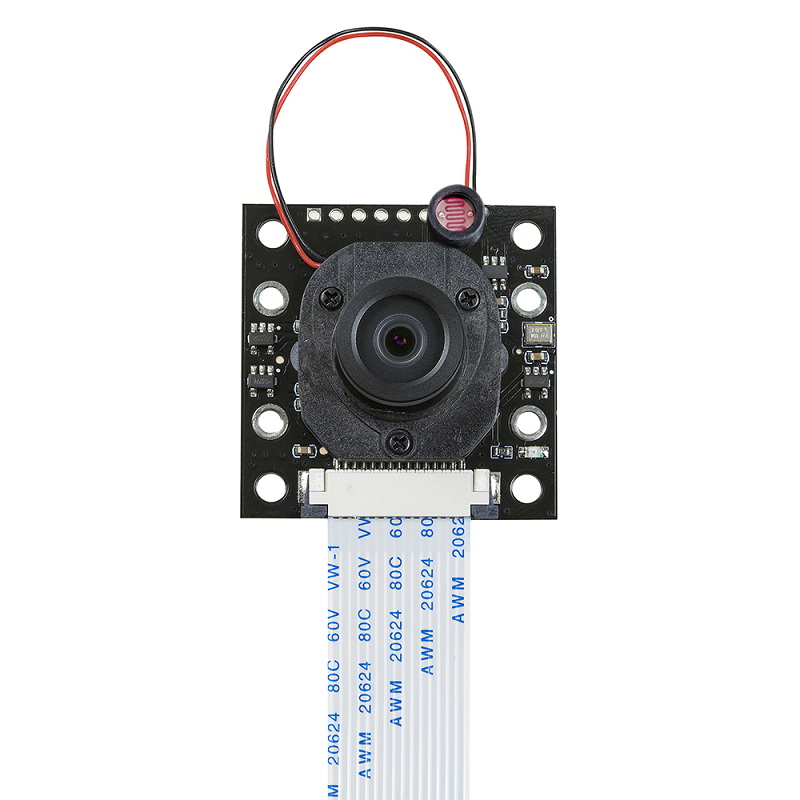

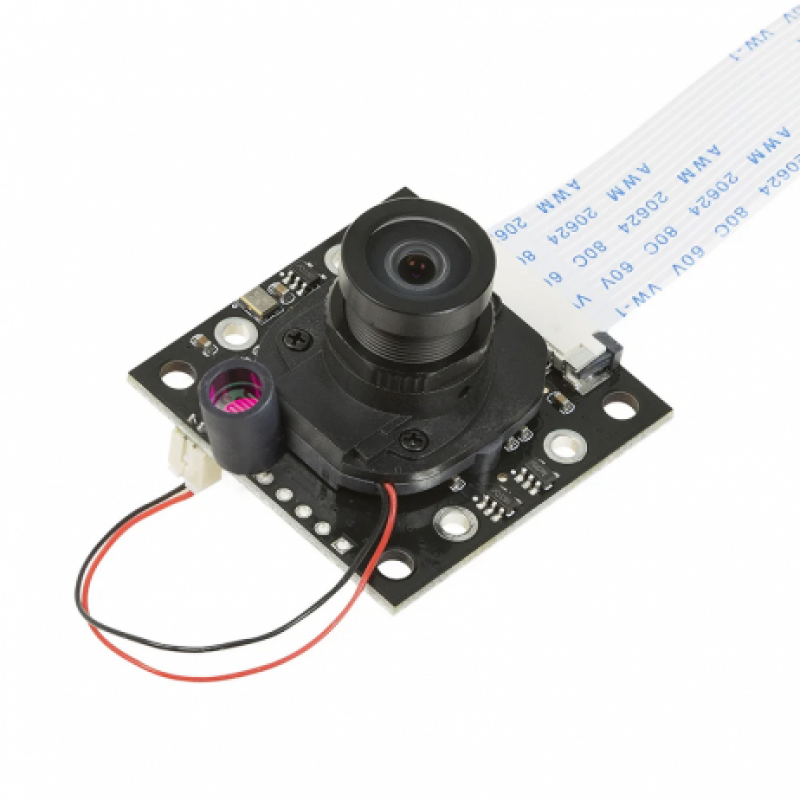

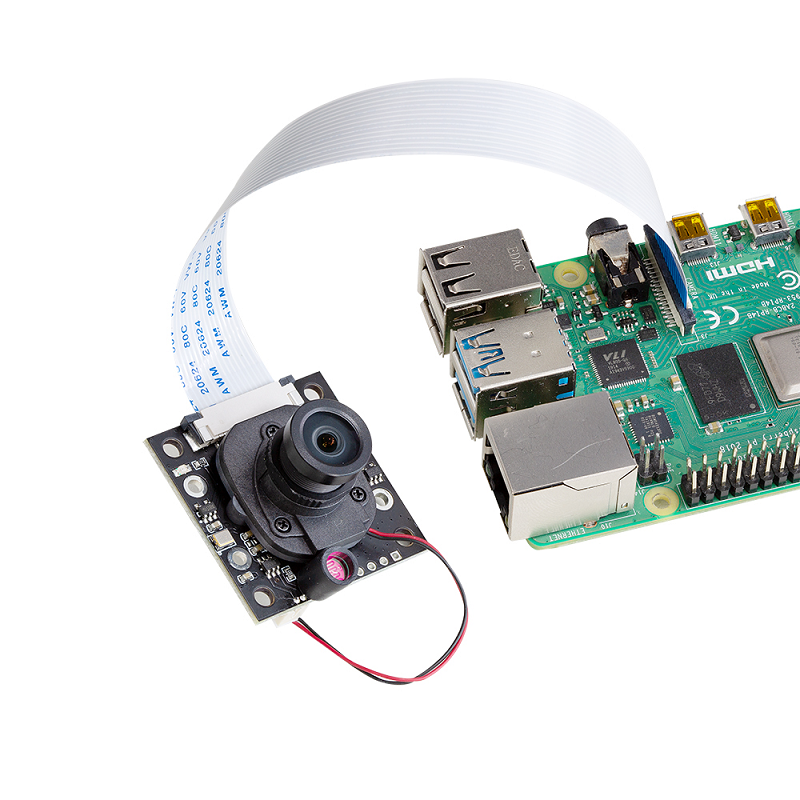

This Arducam 5MP OV5647 NoIR camera comes with a motorized IR cut filter and an M12 Mount. The camera module comes preinstalled with an LS-1820 Lens. This camera module is compatible with Raspberry Pi 4/3B+/3. The camera module connects with the raspberry pi via a 15 pin flat ribbon cable. When the camera surroundings change from day to night the built-in motorized IR cut filter changes the camera from day camera to night camera.
Applications:
- Home security
- Robot cameras
- Wildlife cameras
Features:
- Raspberry Pi HD Camera
- High-Definition video camera for Raspberry Pi Model A or B, B+, Pi2B, Pi3B.
- Omni vision 5647 sensors in a fixed-focus module with replaceable Lenses
- Lens holder: M12x0.5 or CS-Mount
- 5MPixel sensor
- Still picture resolution: 2592 x 1944
- Max video resolution: 1080p
- Max frame rate: 30fps
- Size: 36 x 36 mm
- Connection by a flat ribbon cable to 15-pin MIPI Camera Serial Interface (CSI) connector S5 on Raspberry Pi computer board
- IR Sensitive: onboard Motorized IR cut filter, support both visible and night vision
Package Includes:
1 x Arducam 5MP OV5647 NoIR Motorized IR-cut filter M12 Mount LS-1820 Lens Camera Module for Raspberry Pi
Specifications :-
| Operating Voltage (VDC) | 3.3 ~ 5 |
| Lenses Viewing Angle (FOV) | 56 |
| Resolution | 5 MP |
| Pixel Resolution | 2592 x 1944 |
| Length (mm) | 36 |
| Width (mm) | 36 |
| Height (mm) | 20 |
| Weight (gm) | 22 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Arducam 5MP OV5647 NoIR Motorized IRcut filter M12 Mount LS-1820 Lens Camera for Raspberry Pi
- Product Code: EC-9119
- Availability: 1
-
Rs.4161.86
