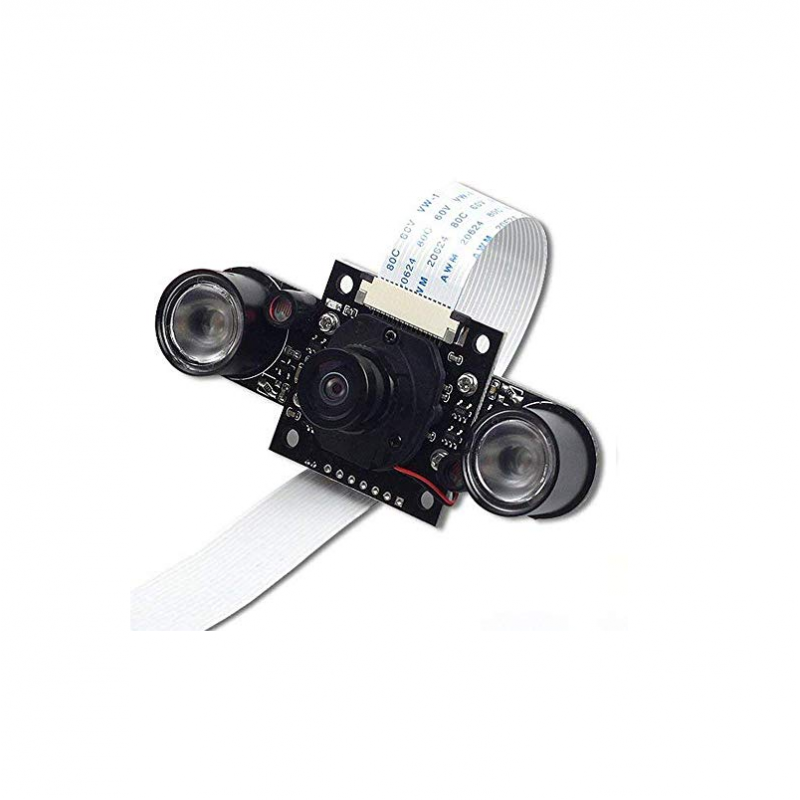

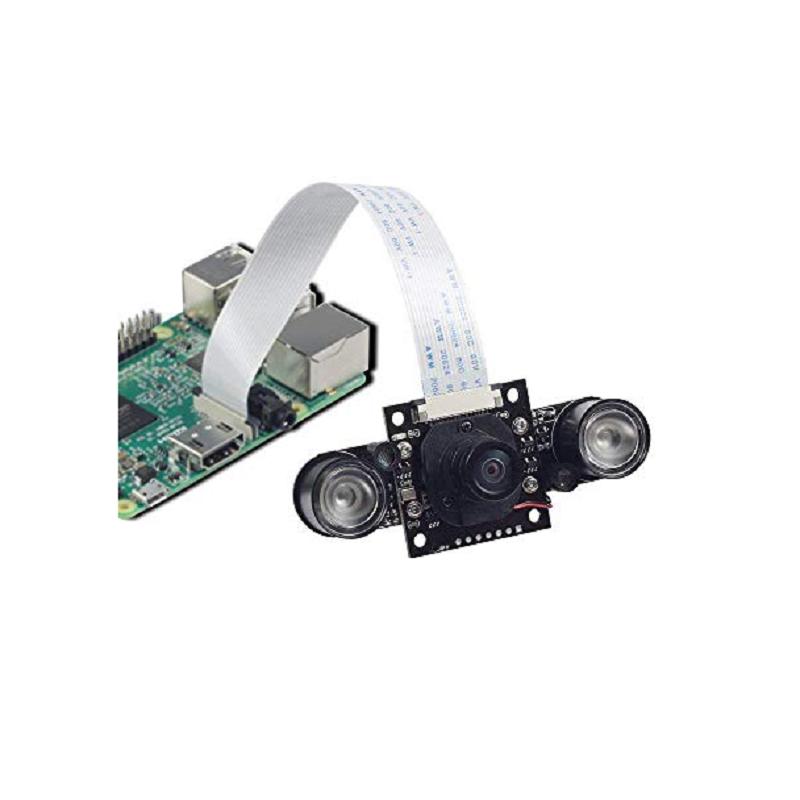

This 5MP NOIR pi video camera is designed for both daylight and night vision photography with a build-in motorized(switchable) IR cut filter and two infrared LED illuminator boards. The motorized IR cut filter can be switched ON/OFF automatically, and the infrared LEDs are automatically ON/OFF according to the light environment. The camera is fully supported by all the Raspberry Pi board versions including Pi 4, Pi 3, and Pi Zero.

Applications:

1. Wild Life Photography
2. Agriculture NDVI
3. DIY Projects

Features:

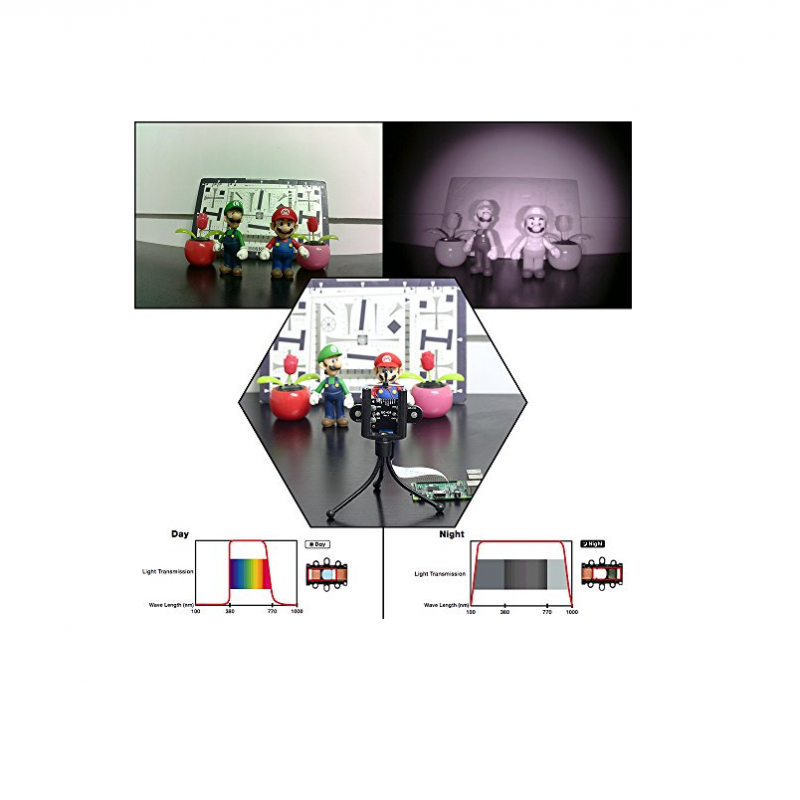

1. Switchable IR Cut Filter: On for daylight colour accuracy, off for IR night vision.
2. Software controllable
3. IR Corrected Lens: Low dispersion glass that greatly reduces Focus Shift and Chromatic Aberration, and focus light of different wavelengths on to an image plane at the same location unlike the other lenses

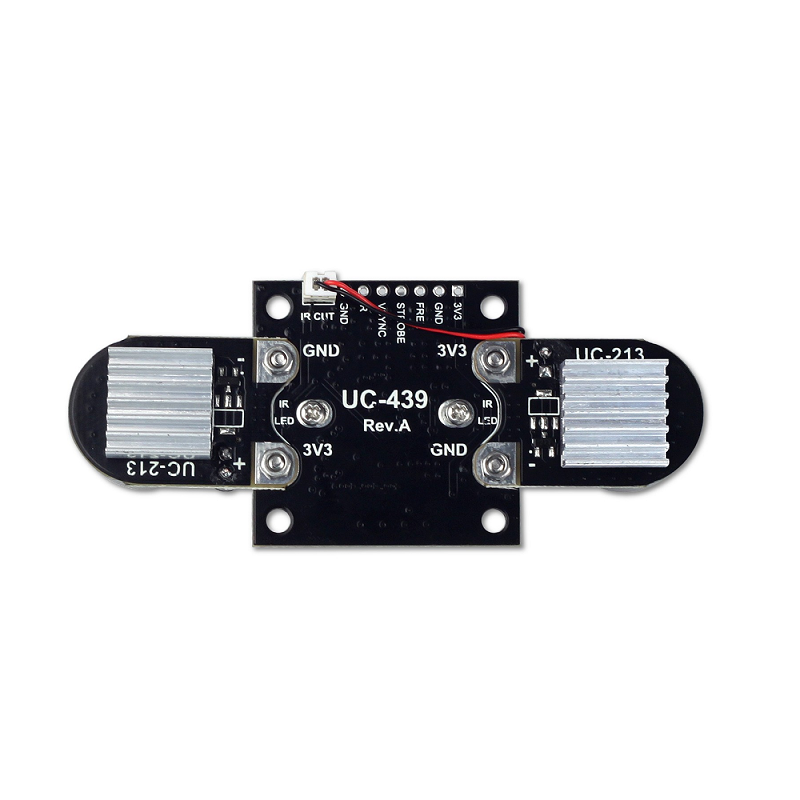

4. IR LED Illuminator: Triggered by the light sensor that decides whether the light condition is poor and needs to be improved

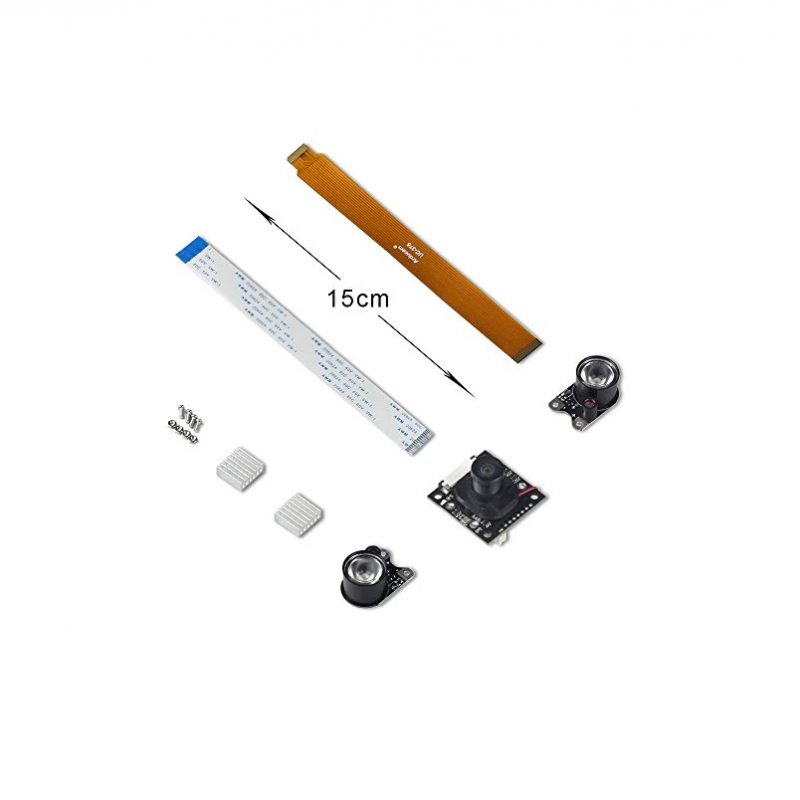

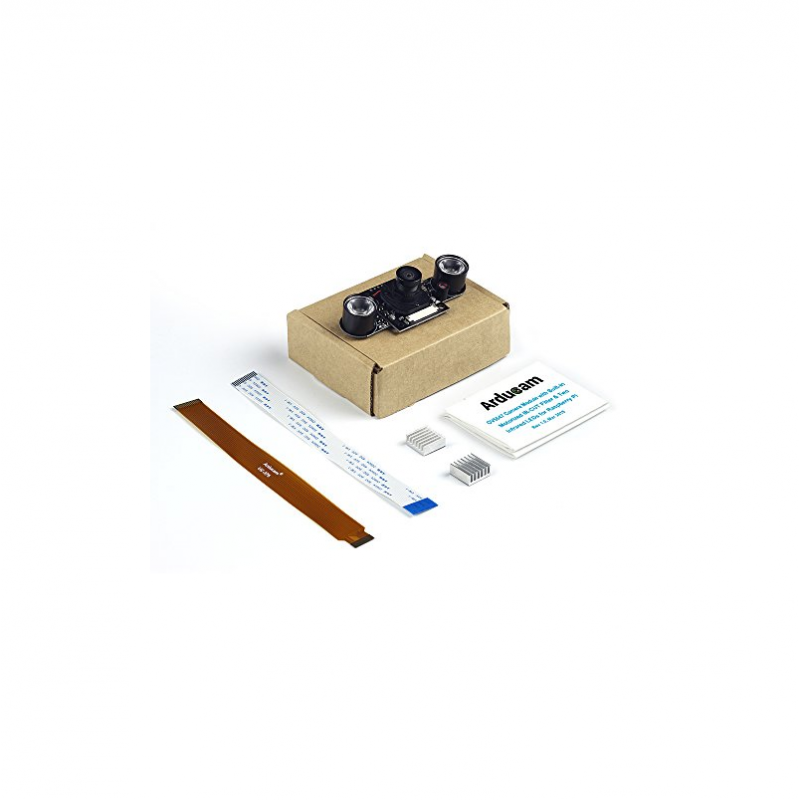

Package Includes:

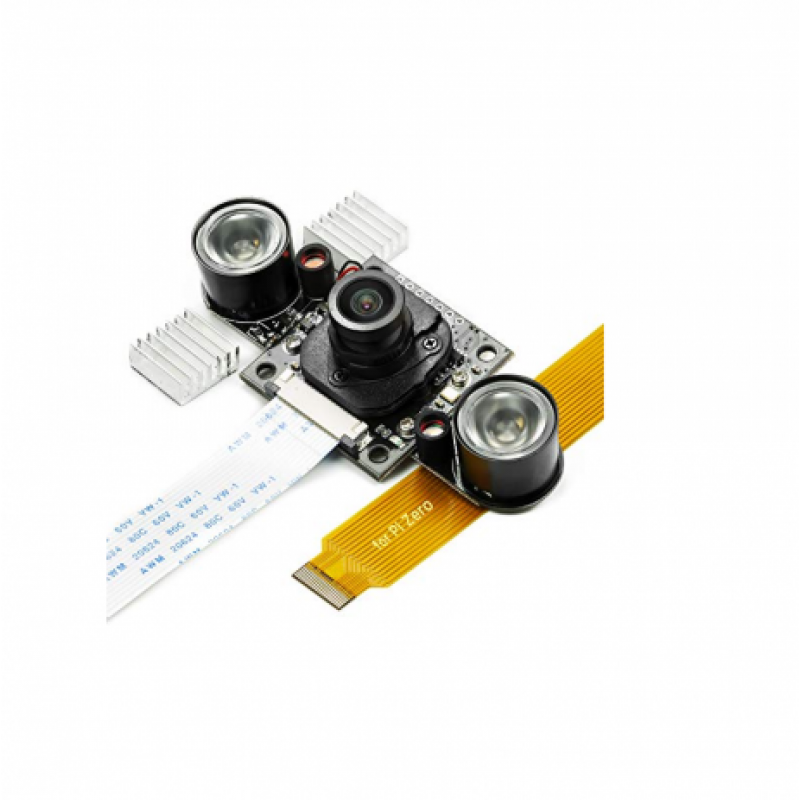

1 x Arducam 5MP OV5647 NoIR Motorized IR-cut Filter M12 Mount LS-30188 Lens Camera Module for Raspberry Pi

2 x IR LED Illuminator

2 x Heat Sinks

1 x 150 mm/5.9 FFC Cable for Raspberry Pi Model A and Model B

1 x 150 mm/5.9 FFC Cable for Raspberry Pi Zero Models

Specifications :-

Operating Voltage (VDC)	3.3 ~ 5
Pixel Resolution	2592 x 1944
Resolution	5 MP
Focal Length (mm)	2.25
Lenses Viewing Angle (FOV)	85
Length (mm)	34
Width (mm)	34
Height (mm)	30
Weight (gm)	30
Cable Length (cm)	15
