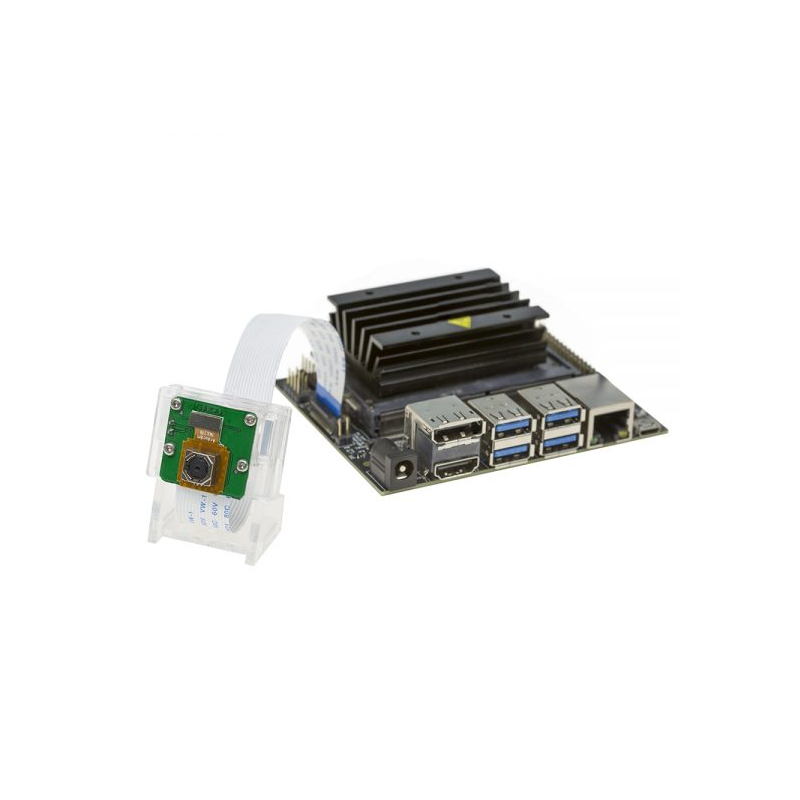

This Arducam 8MP IMX219AF camera module is designed mainly for the NVIDIA Jetson Nano platform and also can be used on other hardware like ARM, DSP, FPGA, etc.
The highlight of this camera is that the lens focus is programmable by software, and the Arducam team provides an open-source code to implement software auto-focus function for Jetson Nano.
Applications:
- Unmanned Aerial Vehicles (UAVs)
- Building Drones
- Autonomous Robotic Systems
- Mobile Medical Imaging
- Intelligent Video Analytics (IVA)
Features:
- Sony 8MP IMX219 Sensor
- Optical Format: 1/4 inch
- Frame Rate:[email protected],[email protected],[email protected]
- Data Format: RAW8/RAW10
- EFL: 2.8mmF.NO: 2.2
- Focus Type: Programmable/Auto Focus
- View Angle: 77.6 (Diagonal)
- Interface: MIPI CSI-2 2-lane
- IR Sensitivity: Visible light, Integral IR Filter
- Horizontal F V: 5
- Vertical FoV: 51
Package Includes:
1 x Arducam 8MP IMX219 Motorized Focus Camera Module for NVIDIA Jetson Nano (NoIR)
1 x 1.0mm pitch 15cm 15pin FPC cable
Specifications :-
| Image Sensor | Sony 8MP IMX219 |
| Optical Format | 1/4 inch |
| Lenses Viewing Angle (FOV) | 65 |
| Interface | MIPI CSI-2 2-lane |
| IR Sensitivity | Visible light, Integral IR Filter |
| Length (mm) | 25 |
| Width (mm) | 25 |
| Height (mm) | 10 |
| Weight (gm) | 3 |
| Cable Length (cm) | 15 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Arducam 8MP IMX219 Motorized Focus Camera Module for NVIDIA Jetson Nano NoIR
- Product Code: EC-9124
- Availability: 3
-
Rs.4774.28
