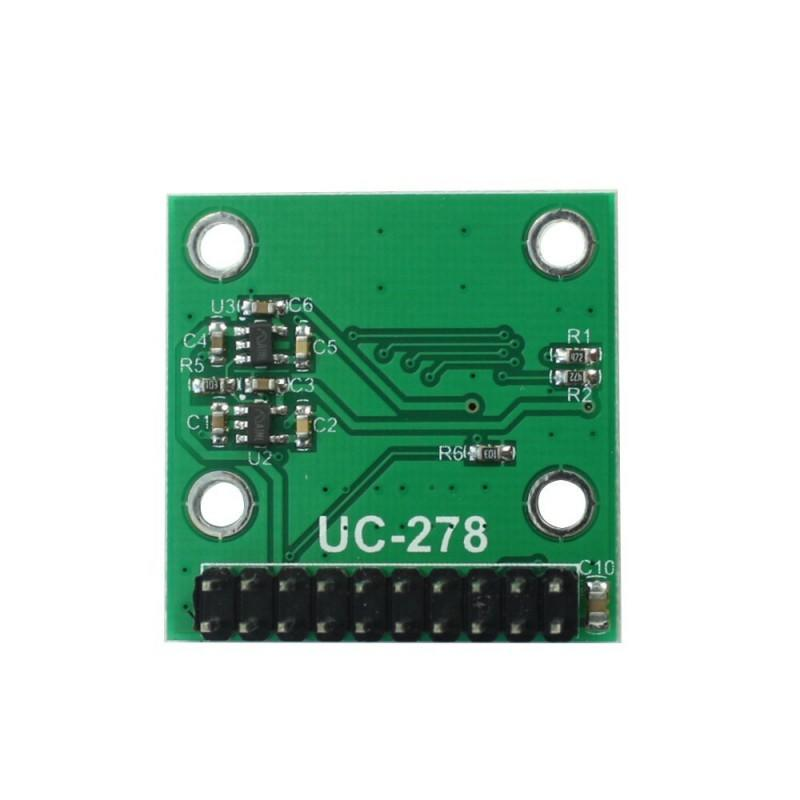

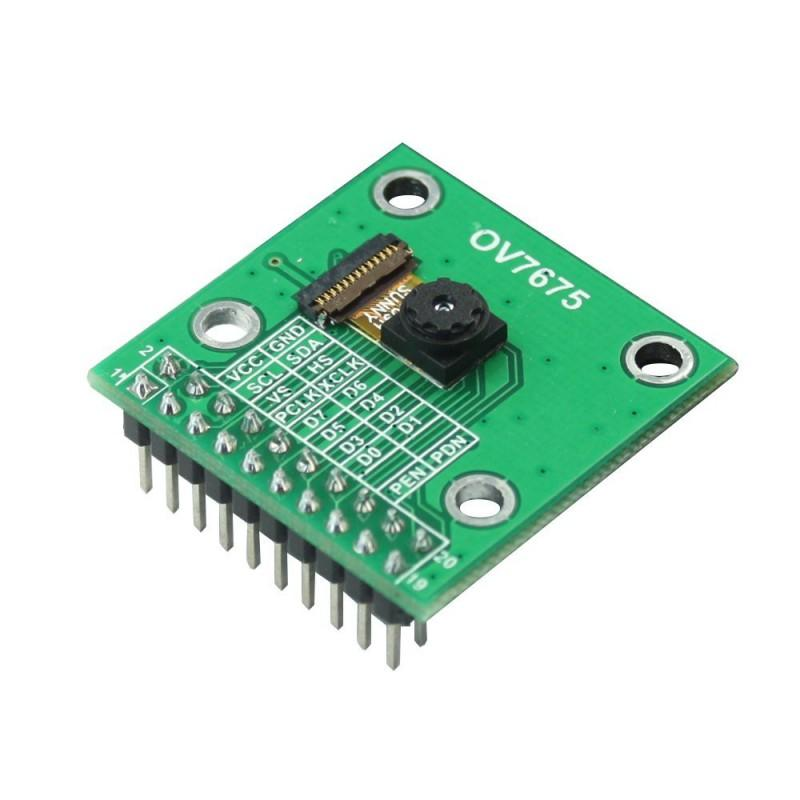

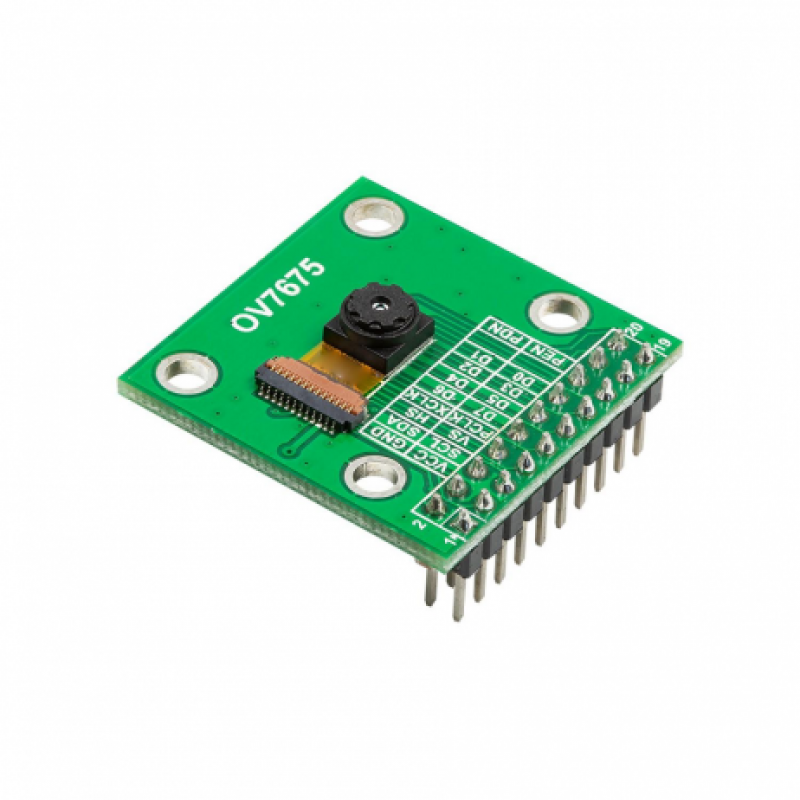

This is a Camera Breakout Board by Arducam based on the OV7675 0.3MP camera. The module comes with a pre-attached M12 6mm lens. The camera module works on 8-bit parallel mode. Which makes it easy to interface with a USB shield using the 8-bit parallel interface. The camera has a rolling type of shutter.
Features:
- Works On 8-bit Parallel Mode
- Based On OV7675 Camera Module
- Maximum Frame Rate of 30FPS
- Fixed Lens Mount
- 2.5um Pixel Size
Package Includes:
1 x Arducam Camera Breakout Board 0.3MP(OV7675) w/ M12 lens (6mm lens)
Specifications :-
| Image Sensor | OV7675 |
| Interface | 8-bit Parallel |
| Resolution | 0.3 MP |
| Pixel Size (um) | 2.5 |
| Optical Format | 1/9" |
| Shutter Type | Rolling |
| Lens Mount | Fixed |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 518.02 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Arducam Camera Breakout Board 0.3MP(OV7675) w/ M12 lens (6mm lens)
- Product Code: EC-9126
- Availability: 7
-
Rs.439.00
- (Excluding 18% GST)
