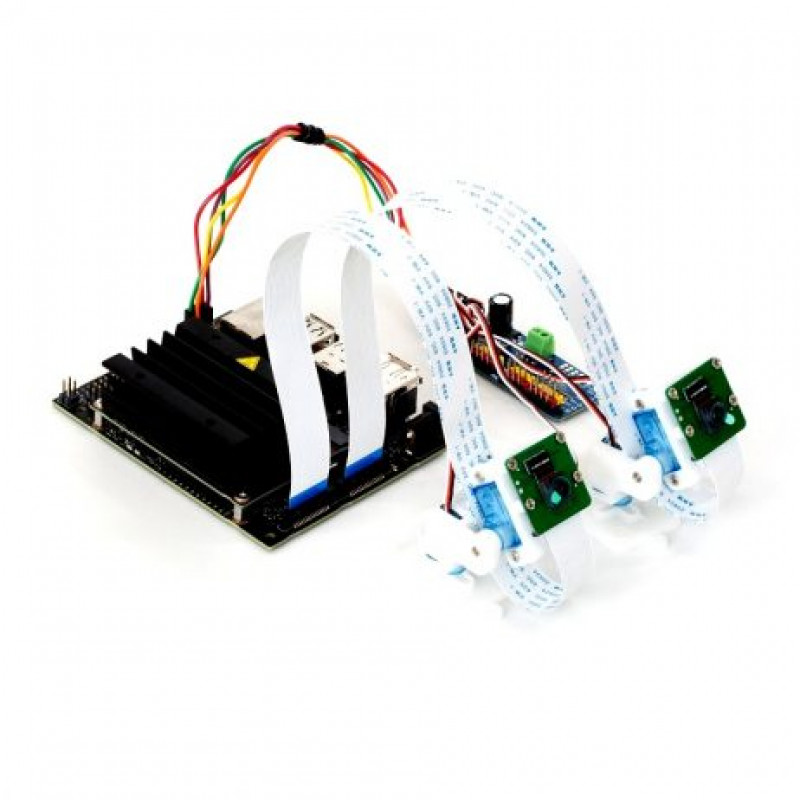

This Arducam Pan Tilt Camera Bundle for Nvidia Jetson Xavier NX/Nano is a complete pan and tilt kit for Nvidia Jetson Xavier NX/Nano boards. The mechanism is based on the GH-S37D digital servos for faster speeds and higher torque and better holding capabilities. They are controlled via a PWM servo controller board which can control up to 16 servos.
Applications:
- Home Security and Surveillance
- Robotics
- DIY Projects
Specifications And Features:
1. Camera
- Sensor: IMX219
- Resolution: 8MP 3280H x 2464V
- Frame Rate:
- IR Sensitivity: Integral IR filter, visible light only
- Field of View: 62.2(H)

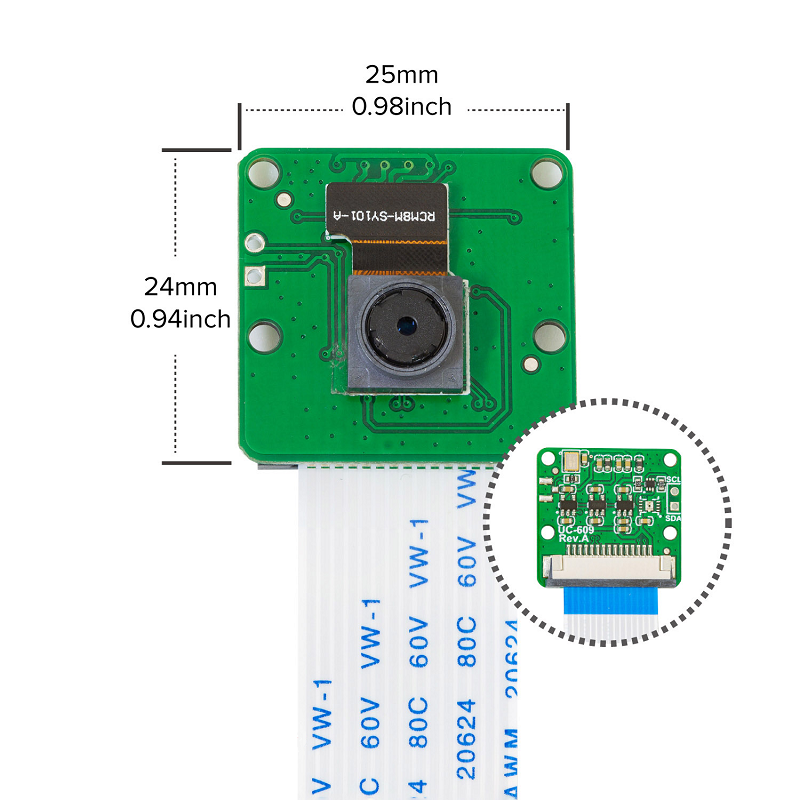

- Camera Board Dimension: 25mm x 24mm
2. Digital Servo
- Torque: 0.6 kg/cm at 3.6V, 0.8 kg/cm at 4.8V
- Operating Speed: 0.13sec/60 at 3.6V, 0.09sec/60 at 4.8V
- Operating Voltage: 3.6v4.8v
- Operating Current: 350mA
- Dead Band: 3 usec
- Dimension: 20mm x 8.75mm x 22mm
3. Control Board
- PWM Driver: PCA9685
- PWM resolution: 12-bit
- Ambient light sensor: TSL2581FN
- Ambient light resolution: 16-bit
- Communication interface: I2C
- Operating voltage: 3.3V/5V
- Dimension: 25mm x 61mm
Package Includes:
2 x 8MP IMX219 cameras for Jetson Nano/Xavier NX with 30cm camera cables
4 x Digital servos
2 sets epoxy bracket pieces with screws
1 x PWM control board
5 x Female to female jumper wires (The wire has no fixed color)
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 7350.22 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Arducam Pan Tilt Camera Bundle for Nvidia Jetson Xavier NX/Nano
- Product Code: EC-9137
- Availability: Out Of Stock
-
Rs.5702.00
- (Excluding 18% GST)
