PTZ is an abbreviation for pan, tilt, and zoom and reflects the movement options of the camera, and a pantiltzoom camera (PTZ camera) is a camera that is capable of remote directional and zoom control. A PTZ camera is not a still camera. Instead, it could move the camera and the lens, and that means a single camera can be used to monitor places that should be covered by multiple ones. You can save a lot of cost and time in purchasing and deploying the camera if a PTZ camera can handle the job. With its moveable lens, you will also be able to zoom the camera to see a specific area that you are interested in. To conclude, its do more with less.

Features:

1. Real PTZ with servos for directional control and varifocal lens for optical zoom now comes to the Raspberry Pi and Jetson Nano / Xavier NX
2. Switchable IR Cut through software for your day/night vision
3. Make full use of the CSI connector now that a single camera can be used to monitor places that should be covered by multiple ones
4. Autofocus control, pan/tilt/zoom keyboard control supported in software
5. 8MP IMX219 Camera board

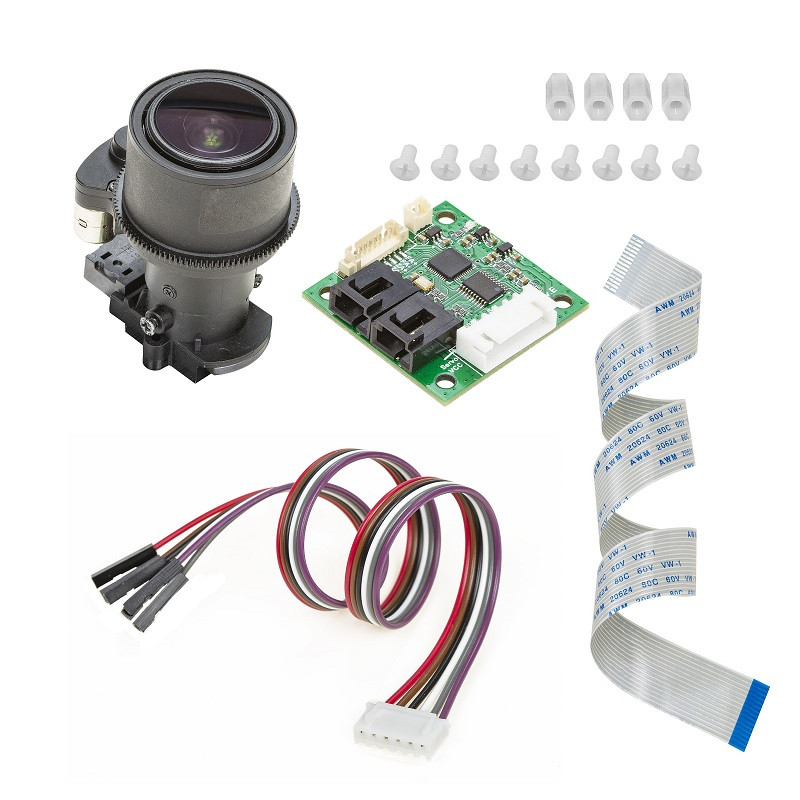

Package Includes:

1 xArducam PTZ Pan Tilt Zoom Camera Controller for Raspberry Pi 4-3B-3

Specifications :-

Camera Driver	Native
Focus Type	Auto
IR Sensitivity	IR Cut Switch
Interface	MIPI
Resolution	5 MP
Sensor Colour	Colour
Shutter Type	Rolling Shutter
Focal-Length	3.2-11.15%
TTL	52.140.2
Image Circle	6.9
Lens Structure	6G3P
FOV	1/2.7(16:9): H(113~30),V(60~16),D(137~34) 1/3(4:3): H(91~25),V(66~18),D(120~30) 1/4(4:3): H(67~18),V(49~13),D(90~22)
M.O.D	0.8m
Focus	Front group: focus Back group: Zoom
Pan and Tilt Range	0-180
PWM Control Signal Frequency	50HZ
Auto Focus Time	4s to 20s
Zoom Range (Wide => Tele)	2317 steps 0.00396mm/step
Focus Range(Near => Far)	3009 steps 0.0047mm/step
Length (mm)	36
Width (mm)	36
Height (mm)	45
