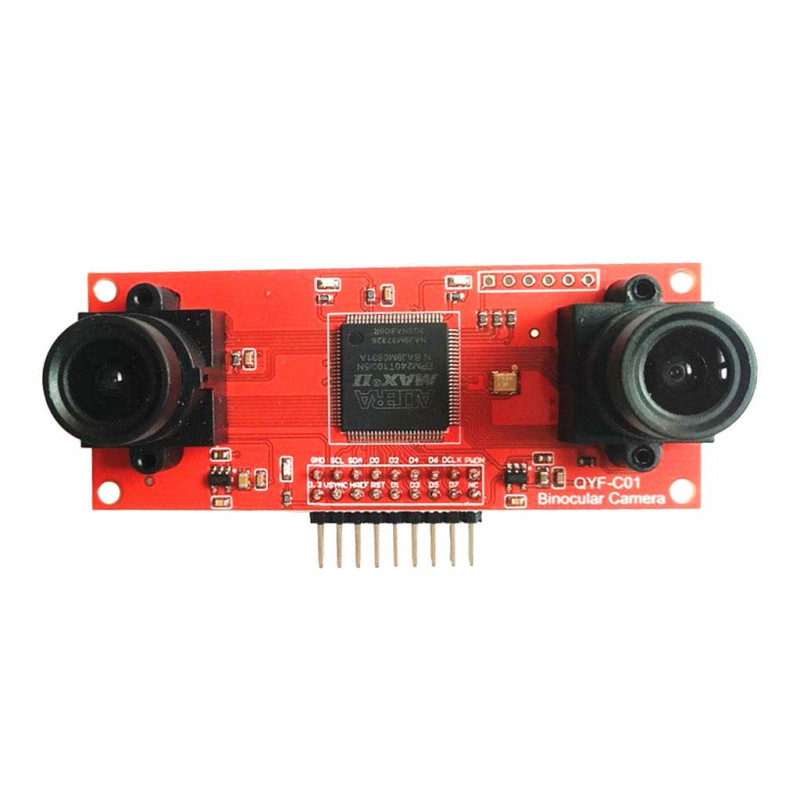

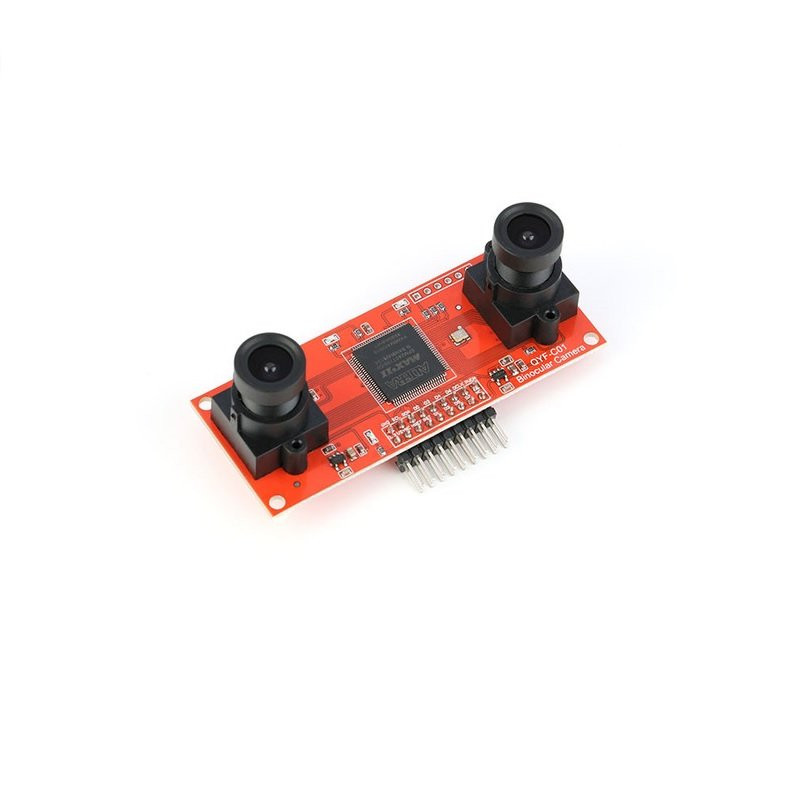

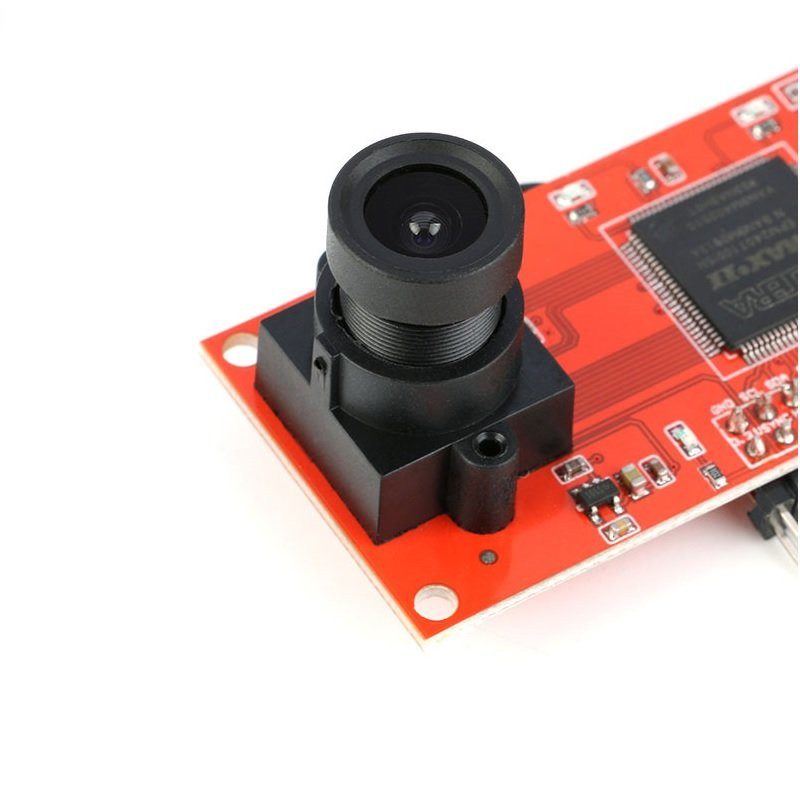

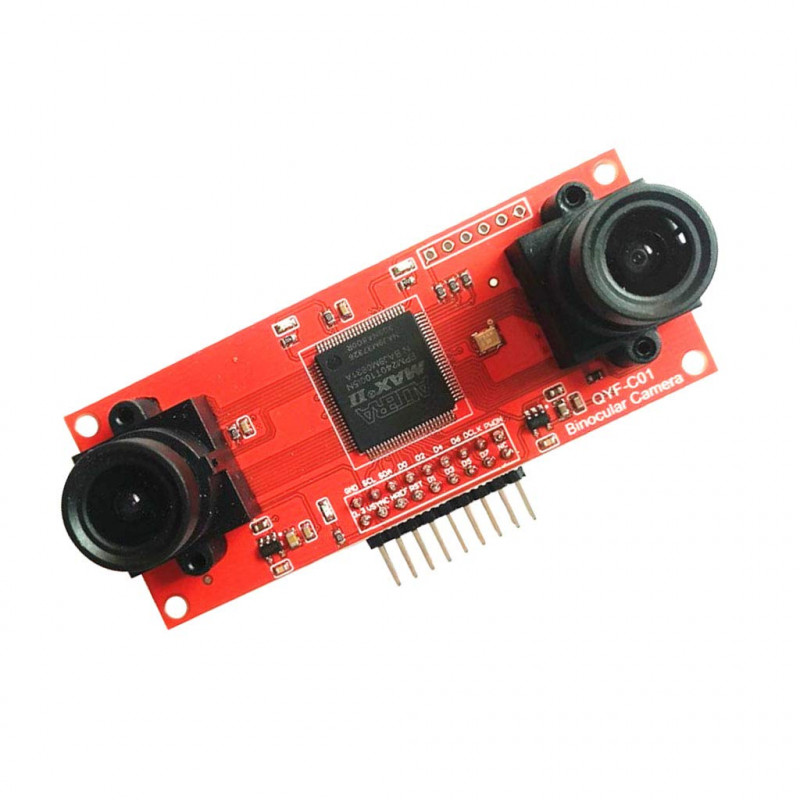

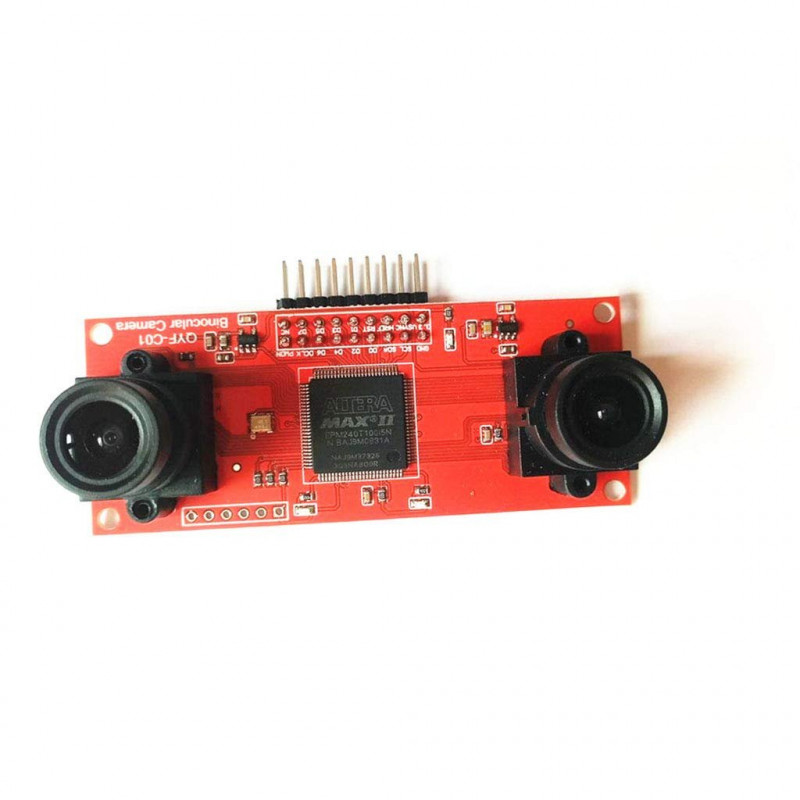

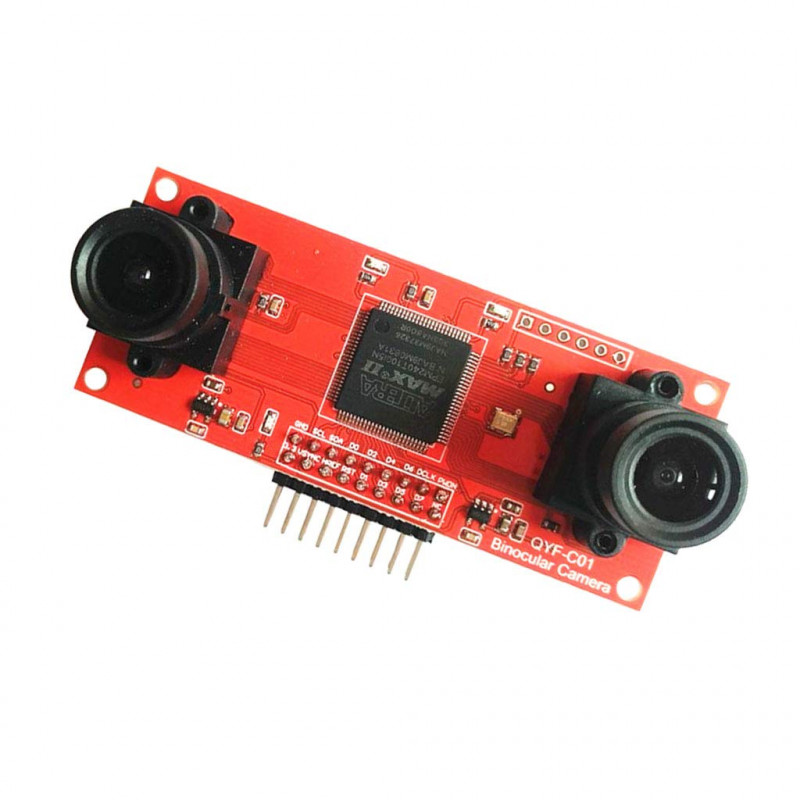

The OV2640 binocular camera module is made with two 1/4-inch OV2640 million HD CMOS sensors. It has high sensitivity, high flexibility, and support for JPEG output. It can work in the same way as binocular camera and can be applied to many occasions such as binocular ranging, 3D measurement and so on.
The camera can be driven by STM32, which is very convenient to use, and the camera configuration can be freely carried out, which greatly increases the flexibility of the application.
Note: Due to the light and screen setting difference, the items color may be slightly different from the pictures. Please allow slight dimension difference due to different manual measurement.
Features:
- High sensitivity, low voltage for embedded applications.
- Standard SCCB interface, compatible with I2C interface.
- Raw RGB, RGB (GRB4: 2: 2, RGB565/555/444).
- YUV (4:2:2) and YCbCr (4:2:2) output formats.
- Built-in embedded microprocessor.
- Support for image scaling, panning, and window settings.
- Support image compression to output JPEG image data.
- Integrated active crystal 12M, no external clock required.
- Integrated LDO, only need to supply 3.3V to work properly.
- Support UXGA, SXGA, VGA, QVGA, QQVGA, CIF, QCIF and various sizes up to 4030 size.
- Support automatic exposure control, automatic gain control, automatic white balance.
- Automatically eliminates light streaks and automatic black level calibration.
- Output bit width: 8 bits.
- IO port level: 2.8v LVTTL, compatible with 3.3V.
- Output format: RawRGB, RGB (RGB565/RGB555), GRB422, YUV (422/420), YCbCr (422), JPEG data.
- Output pixels: UXGA (1600 * 1200) and below to any size of 40 * 30.
- Image quality control includes settings such as color saturation, hue, gamma, and sharpness ANTI_BLOOM.
Package Includes:
1 xOV2640 Binocular Camera Module CMOS STM32 Driver 3.3v 1600x1200 for 3D Measurement with SCCB Interface.
Specifications :-
| Pixel | 1600 x 1200 (200W) |
| Sensor size | 1/4 inch |
| Operating voltage (V) | 3.3 |
| Sensitivity | 0.6V/Lux-sec |
| Signal to noise ratio (SNR) | 40dB |
| Dynamic range | 50dB |
| Lens aperture | F2.0 |
| Lens angle of view | 78 |
| Current consumption (mA) | 40 |
| Lens focal length | 3.6mm |
| Lens filter | 850nm, infrared filter |
| Data interface | 8-bit data |
| Control interface | SCCB (Class IIC protocol) |
| Length (mm) | 80 |
| Width (mm) | 40 |
| Height (mm) | 30 |
| Weight (gm) | 25 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 4071 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
OV2640 Binocular Camera Module CMOS STM32 Driver 3.3v 1600x1200 for 3D Measurement with SCCB Interface
- Product Code: EC-9169
- Availability: Out Of Stock
-
Rs.3919.00
- (Excluding 18% GST)
