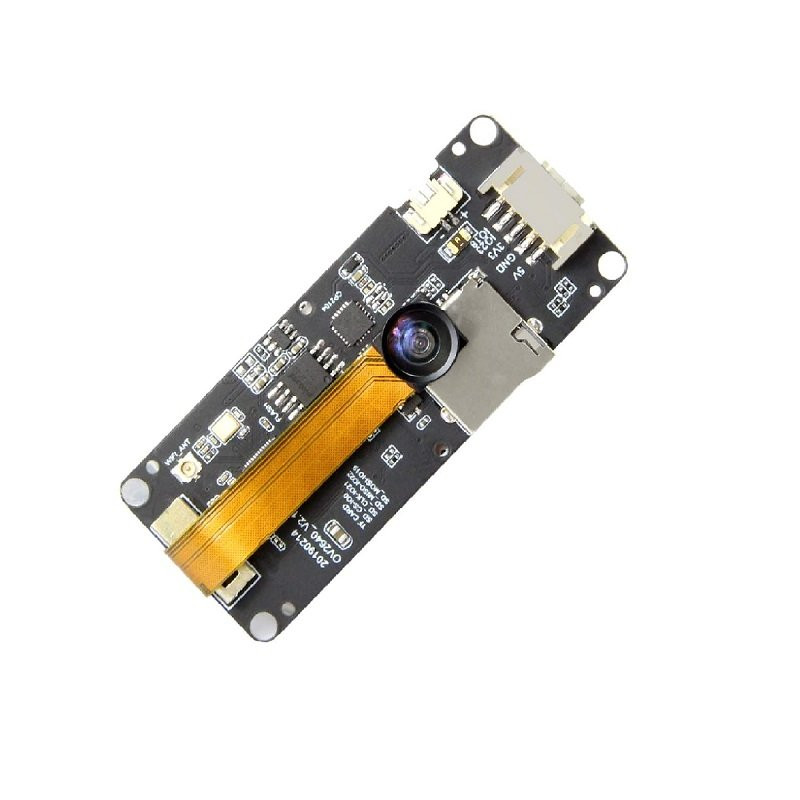

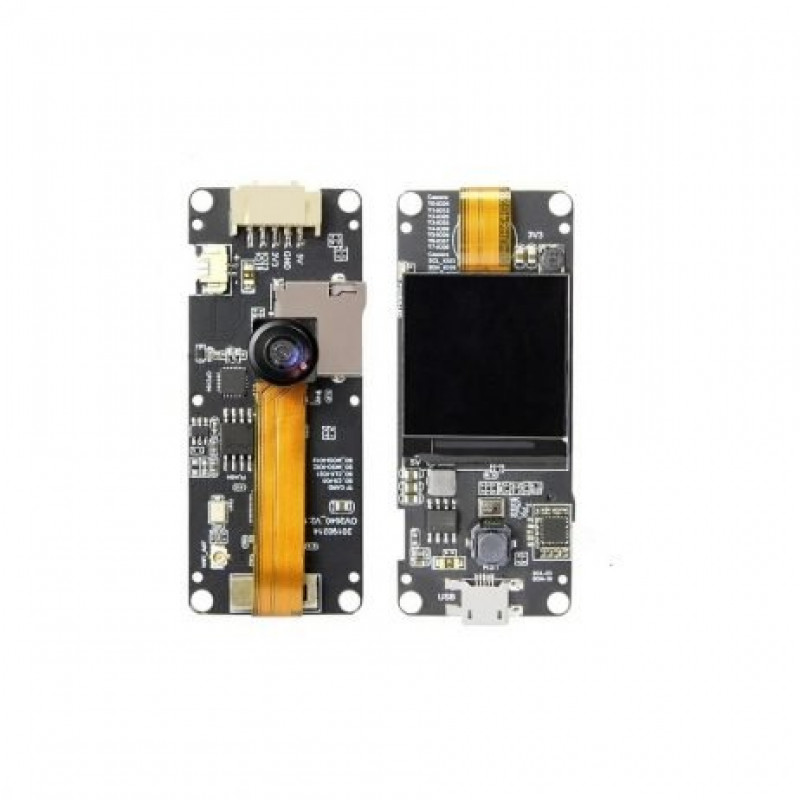

This is a TTGO OV2640 1.3 Inch T-Camera Plus Fish-eye Lens Rear Camera Module without MPU6050. The lens is used to transfer the image and data transmission. The module has a strong driving ability, strong anti-interference, low calorific value, and is more stable and reliable for Arduino projects. This module can be applied to Arduino Robot, Household Power Systems, raspberry pie, and DIY Servo Shield Module, etc.


Features:

  1. The camera can be extended to become a rear camera.
  2. this module can transfer images and data together.


Package Includes:

1 x TTGO OV2640 1.3 Inch T-Camera Plus Fish-eye Lens Rear Camera Module without MPU6050.



Specifications :-

Chipset

ESPRESSIF-ESP32-DOWDQ6 240MHz Xtensa single-/dual-core 32-bit LX6 microprocessor

Power Supply

USB 5V/1A

working voltage(V)

2.3-3.6V

working current(mA)

160mA

charging current(A)

1A

FLASH Memory

QSPI flash/SRAM, up to 4 x 16 MB

Display Type(Inch)

IPS Panel ST7789/1.3 Inch

USB to TTL

CP2104

Camera

OV2640 2Megapixel

frequency range(GHz)

2.4GHz~2.5GHz

Transmit Power(dBm)

22dBm

communication distance(m)

300m

Working Temperature Range (C)

40 to 85

Length (mm)

70

Width (mm)

30



Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 3538.82 (Inclusive of all Taxes)
