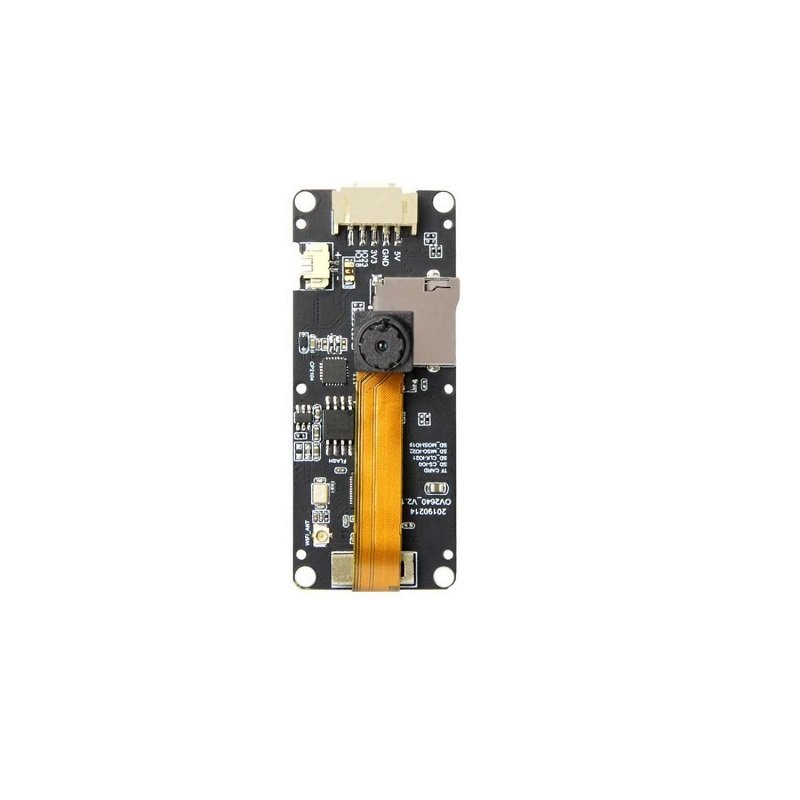

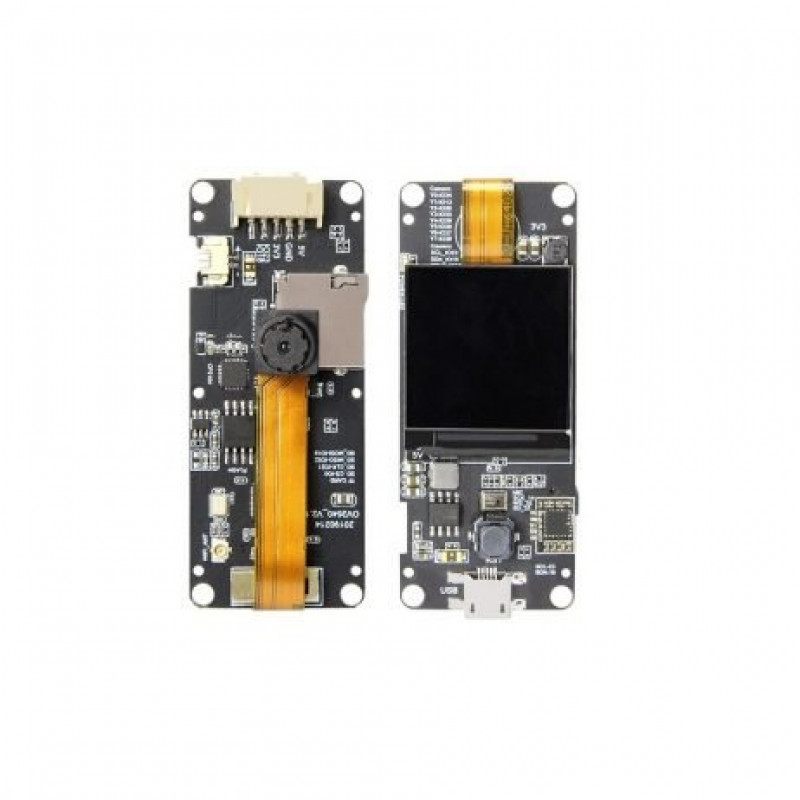

This is a TTGO T- Plus 1.3 Inch OV2640 Display Normal Rear Camera Module with MPU6050. The lens is used to transfer the image and data transmission. The module has a strong driving ability, strong anti-interference, low calorific value, and is more stable and reliable for Arduino projects. This module can be applied to Arduino Robot, Household Power Systems, raspberry pie, and DIY Servo Shield Module, etc.
Features:
- The camera can be extended to become a rear camera.
- This module can transfer images and data together.
Package Includes:
1 x TTGO T-Camera Plus Camera Module OV2640 1.3 Inch Display Rear Camera Normal Rear Camera with MPU6050
Specifications :-
| Chipset | ESPRESSIF-ESP32-DOWDQ6 240MHz Xtensa single-/dual-core 32-bit LX6 microprocessor |
| Power Supply | USB 5V/1A |
| working voltage | 2.3-3.6V |
| working current | 160 mA |
| charging current | 1A |
| FLASH | QSPI flash/SRAM, up to 4 x 16 MB |
| SRAM | 520 kB SRAM + 8MBytes External SPRAM |
| Display | IPS Panel ST7789/1.3 Inch |
| USB to TTL | CP2104 |
| Camera | OV2640 2Megapixel |
| On-board clock | 40MHz crystal oscillator |
| Required Battery | 3.7V Battery |
| Frequency Range | 2.4~2.5GHz |
| Transmit Power | 22dBm |
| Communication Distance | 300 m |
| Working Temperature Range (C) | 40 to 85 |
| Length (mm) | 80 |
| Width (mm) | 50 |
| Height (mm) | 30 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 3444.42 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
TTGO T- Plus 1.3 Inch OV2640 Display Normal Rear Camera Module with MPU6050
- Product Code: EC-9154
- Availability: Out Of Stock
-
Rs.2899.00
- (Excluding 18% GST)
