The D415 is part of the Intel RealSense D400 series of cameras, a lineup that takes Intels latest depth sensing hardware and software and packages them into easy to integrate products.

Intels complete suite of solutions includes vision processors, turnkey modules, cameras, and SDKs, and computer vision libraries. Perfect for developers, makers, and innovators looking to bring the depth sensing vision to devices, Intel RealSense D400 series cameras offer simple out of the box integration and enable a whole new generation of intelligent vision equipped devices.

What is an IMU?

The inertial measurement unit (IMU) is used for the detection of movements and rotations in 6 degrees of freedom (6DoF). An IMU combines a variety of sensors with gyroscopes to detect both rotation and movement in 3 axes, as well as pitch, yaw, and roll. It is used in applications such as gaming and pointing devices as well as image stabilization.

Why IMU?

Adding an IMU allows your application to refine its depth awareness in any situation where the camera moves. This opens the door for rudimentary SLAM and tracking applications allowing better point-cloud alignment. It also allows improved environmental awareness for robotics and drones. The use of an IMU makes registration and calibration easier for handheld scanning system use cases and is also important in fields such as virtual/augmented reality and drones. When using the D415, our Intel RealSense SDK 2.0 provides IMU data that is time-stamped to align with our high-quality depth data.

Combined Solution for Development & Productization

The Intel RealSens D415 places an IMU into our cutting edge stereo depth camera. With an Intel module and vision processor in a small form factor, the D435i is a powerful complete package that can be paired with customizable software for a depth camera that is capable of understanding its own movement.

Ideal for cameras in motion

The combination of a wide field of view and a global shutter sensor on the intel D415 makes it the preferred solution for applications such as robotic navigation and object recognition. The wider field of view allows a single camera to cover more areas resulting in fewer blind spots. The global shutter sensors provide great lowlight sensitivity allowing robots to navigate spaces with the lights off.

Complete Suite for Simple Integration

The Intel RealSens D415 series of cameras is a lineup that takes Intels latest depth sensing hardware and software and packages them into easy to integrate products. Perfect for developers, makers, and innovators looking to bring depth sensing to devices, Intel RealSens D415 series cameras offer simple out of the box integration and enable a whole new generation of intelligent vision equipped solutions.



Features:

  1. The Intel RealSense SDK 2. 0 which provides a depth and IMU data stream.
  2. Imu data that is time Stamped to align with depth data as needed. Desktop tripod.
  3. It provides a wider field of view and better high-speed image capture.

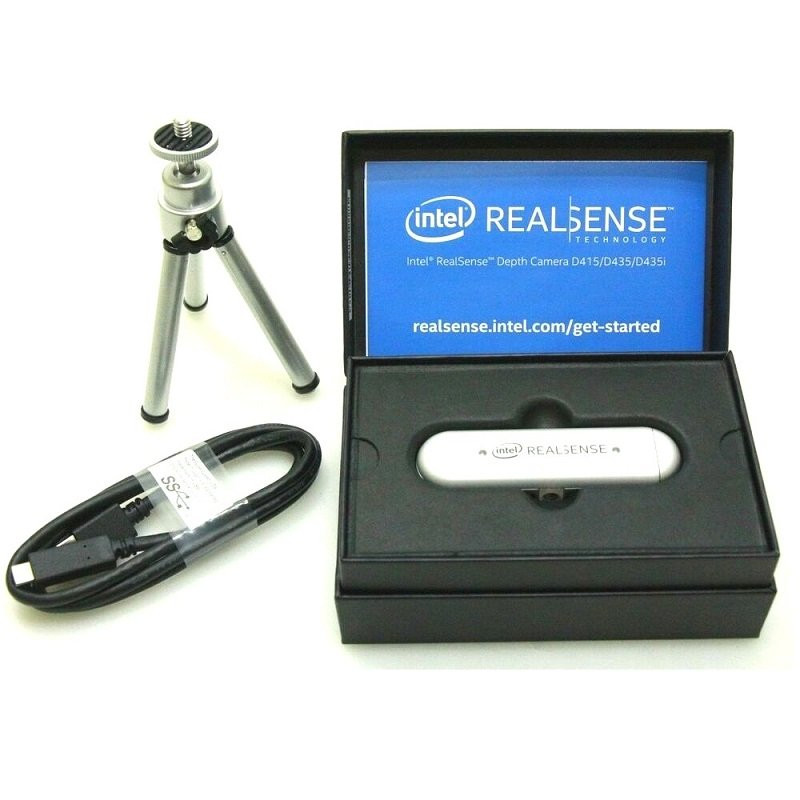

Package Includes:

1 x Intel RealSense Depth Camera D415

1 x Intel RealSense SDK 2.0 which provides a depth and IMU data stream.

1 x IMU Data is time-stamped to align with depth data as needed.

1 x Desktop Tripod.

1 x USB-C-Type Cable.



Specifications :-

Manufacturer

Intel

Maximum Range

10m+

FOV Diagonal

72

FOV Horizontal

65

FOV Vertical

40

Minimum Depth Distance [m]

0.16

Baseline [mm]

50

Shutter Type

Global shutter

Type

Housed Camera

Vertical Resolution

800

Horizontal Resolution

1280

Interface

USB 3.0

Max. RGB Resolution

1920 x 1080

RGB Sensor

Yes

Max. Depth Resolution

1280 720

Depth Technology

Active IR Stereo

Length (mm)

95

Width (mm)

25

Height (mm)

25


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 22418.82 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

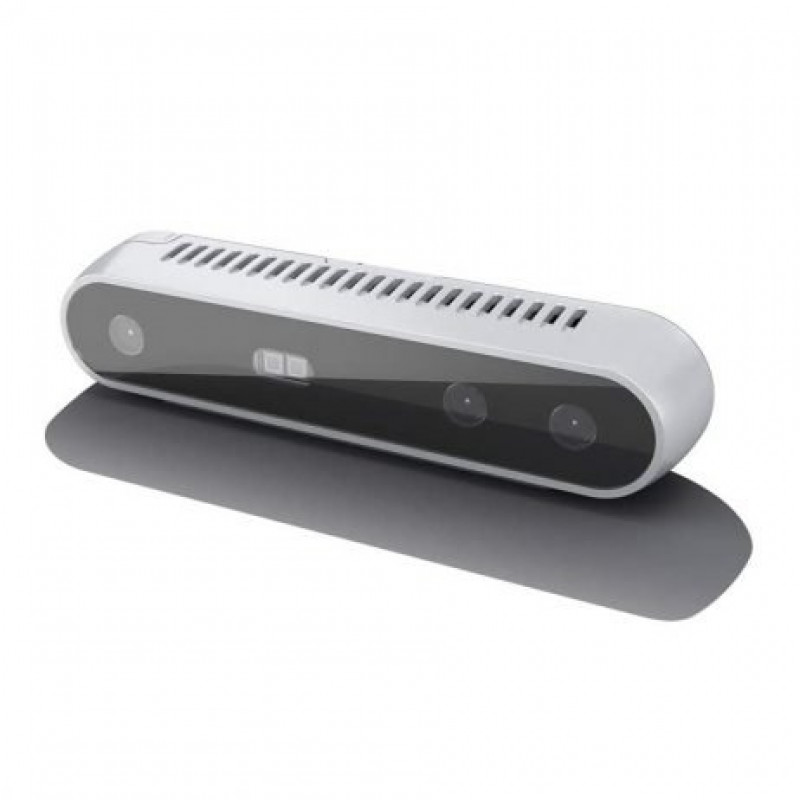

Intel D415 RealSense Depth Camera

  • Product Code: EC-9013
  • Availability: 2
  • Rs.27199.00
  • (Excluding 18% GST)
