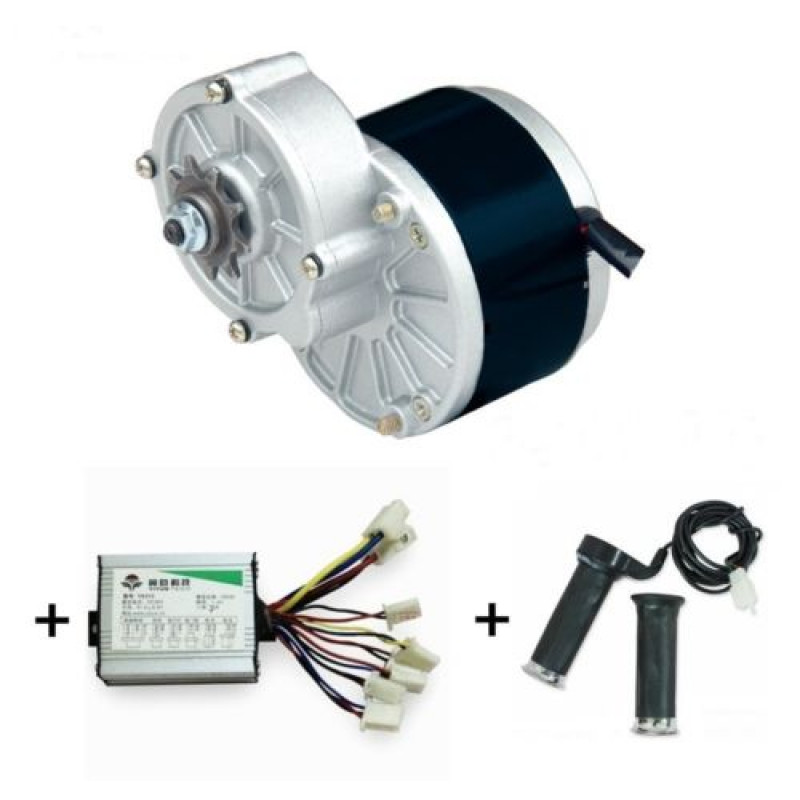

MY1016 350WZ3 (GB)+ Motor Controller + Twist Throttle + Brake, DIY Electric Bicycle Kit is the complete set of eBikeMotor, Motor controller, Twist throttle gear and Brake Lever. This combo made with compatibility with each other so you do not need to put efforts tochoose them individually for your project. and it will save your money as well.
This popular reduction motor is simply the most commonly used motor for Scooters, Bikes and quads available on the market! It is normally found in the better quality quads and scooters on the market and is classed as a mid-range combination. They are quite powerful for their small size and extremely reliable. We've sold these for so many different applications that they were never designed for, but the robustness of the build makes them just go and go and go etc!

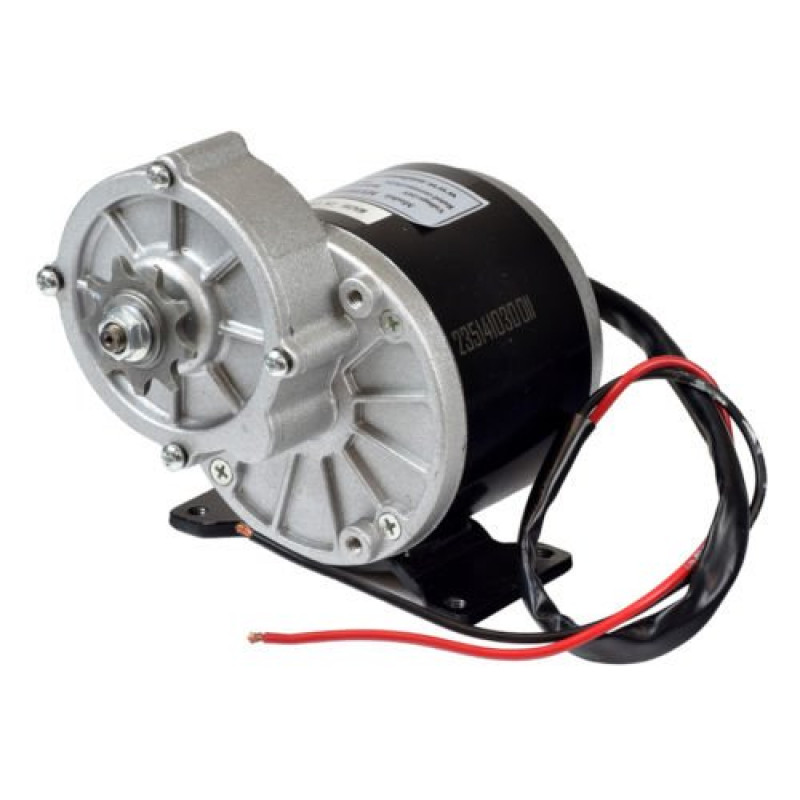

We understand the inventive mind and the thrill of creating something all your own. That is why we are proud to present the 24-volt 350-watt MY1016Z3 gear reduction motor complete with a 9 tooth 1/8 bicycle chain sprocket.
This motor is great for those wanting to make their own custom electric vehicle, whether its a scooter, electric bicycle or something the world isn't even ready for. This electric motor with gear reduction produces more low-end torque than your standard motor.
Note:This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motors power wires.

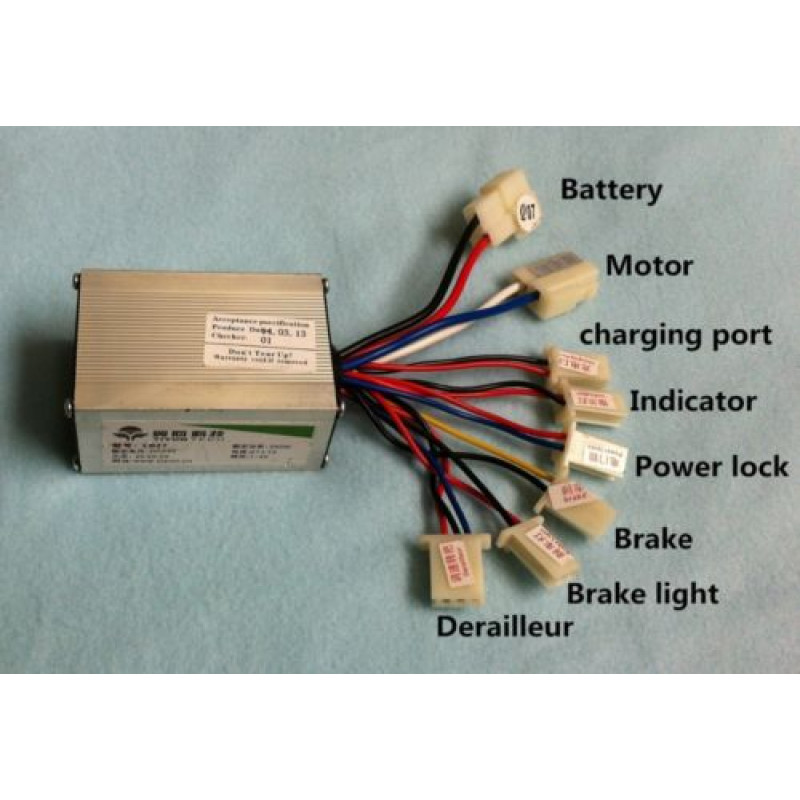

The Package includes Motor Controller for MY1016 350W which is compatible with MY1016 350WZ2 (GB) includes attachments for the motor, accelerator, brake, battery, battery charging, brake light, power lock.

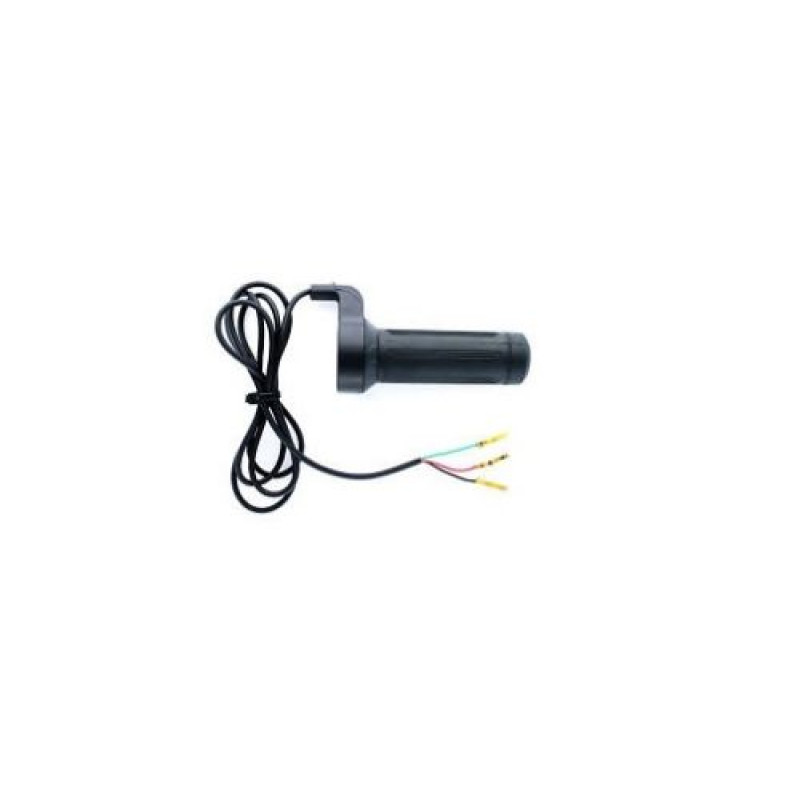

This combo also includes Twist throttle accelerator and left-handed Brake lever required for complete assembly of our DIY Electric bicycle kit.
Specifications and Features:

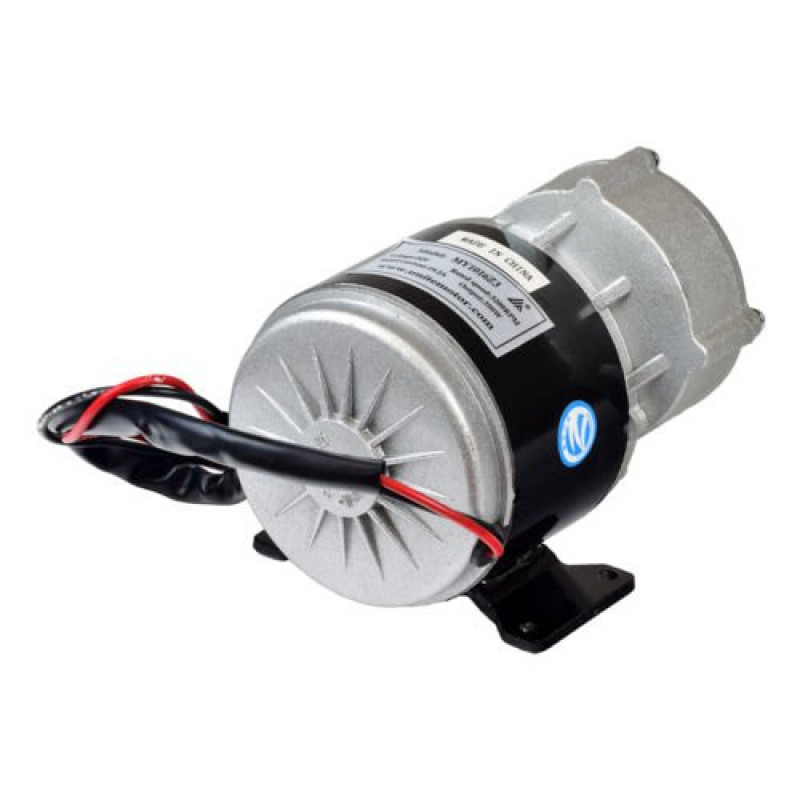

MY1016Z3 350W Motor:
- Voltage:24 volts DC
- Output:350 watt
- Left or right rotation by reversing wires
- MY1016Z3 motor with gear reduction
- 300 RPM (after Reduction)

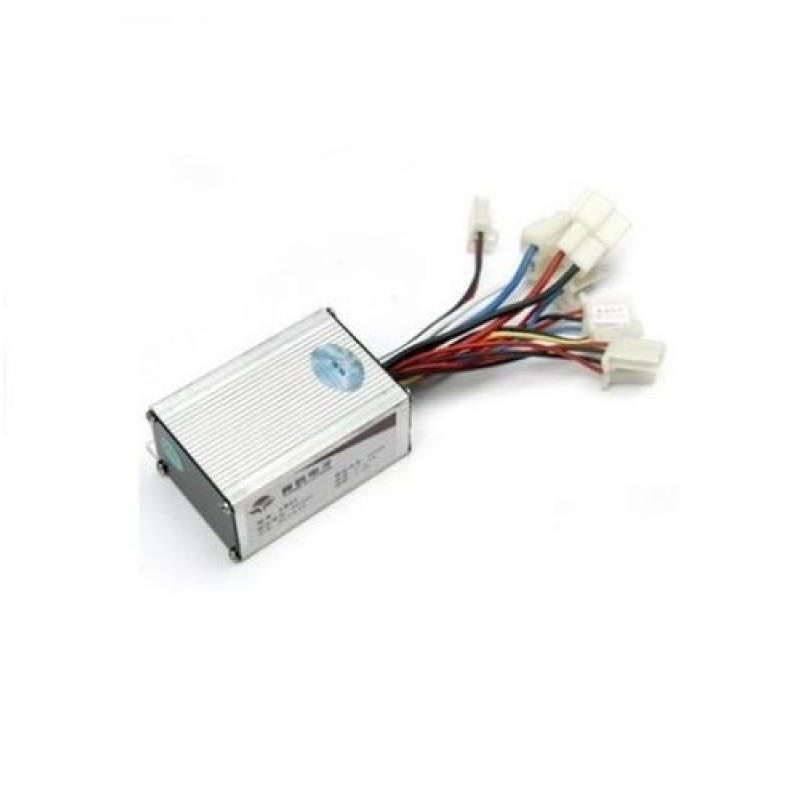

Motor Controller Specifications:
- Dimensions: 83 x 70 x 38 mm(LxWxH)
- Cables length: 10 CM(Approx.)
- Weight: 196 gm
- Rated voltage: 24 v DC
- Current limit: 33A
- Rated power: 350 w
- Matching motor: dc brushed motor
- Under Voltage Protection: 20V
- Strong Aluminium body
Package Includes:
1 x MY1016Z3 350W 24V brush motor
1 x Ebike Motor Controller
1 x Throttle and dummy
1 x Brake Gears

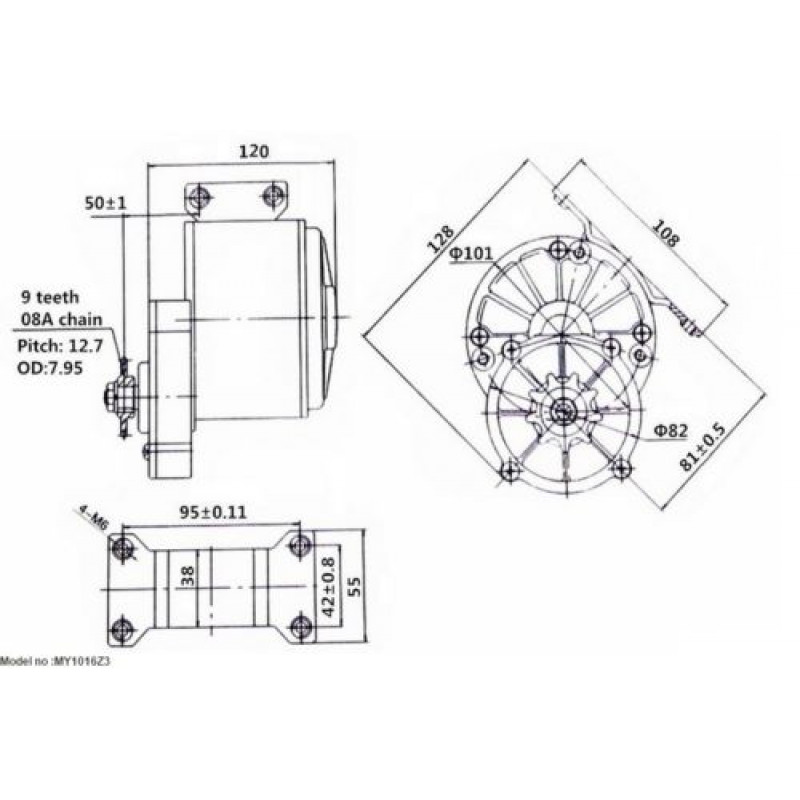

Specifications :-
| Model | MY1016Z3 |
| Operating Power | 350 watt |
| Operating Voltage (VDC) | 24 |
| Rated Current(A) | 19.2 |
| Rated Speed (RPM) | Base: 3200 |
| Rated Speed After Reduction (RPM) | 300 |
| Rated Torque (Kg-Cm) | 110 |
| Stall Torque(Kg-Cm) | 550 |
| Gearbox | Yes |
| Sprocket | 9 tooth 1/8" Bicycle Chain |
| Weight (Kg) | 2.98 |
| Efficiency | >72~75% |
| Cable Length (Meter) | 0.5 |
| Shipment Weight | 3.2 kg |
| Shipment Dimensions | 22x20x12 cm |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 6724.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
MY1016Z3 350W (GB)+ Motor Controller + Twist Throttle + Brake, DIY Electric Bicycle Kit
- Product Code: EC-8350
- Availability: 25
-
Rs.5880.00
- (Excluding 18% GST)
