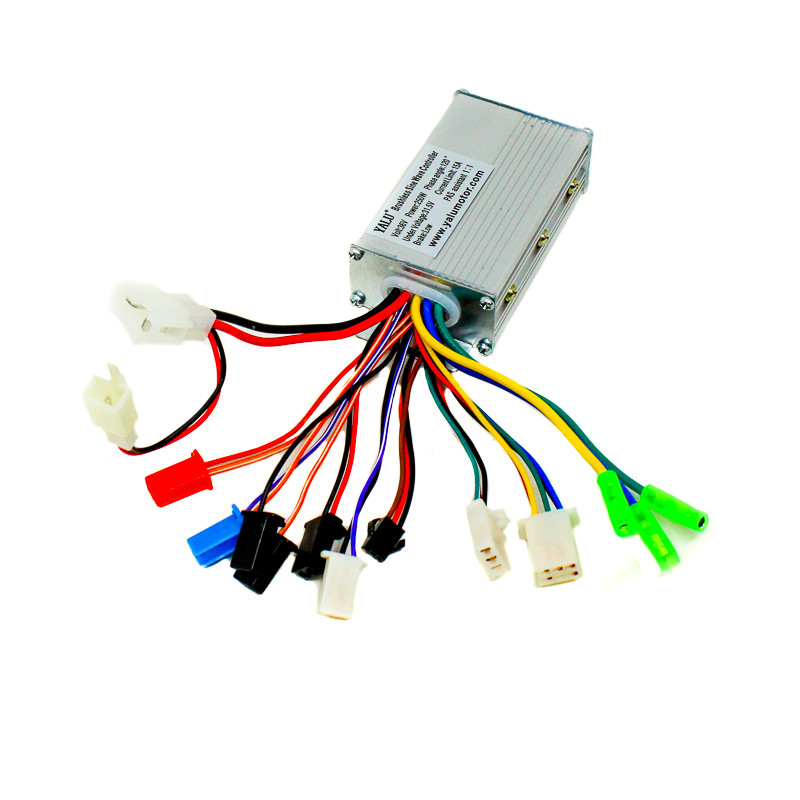

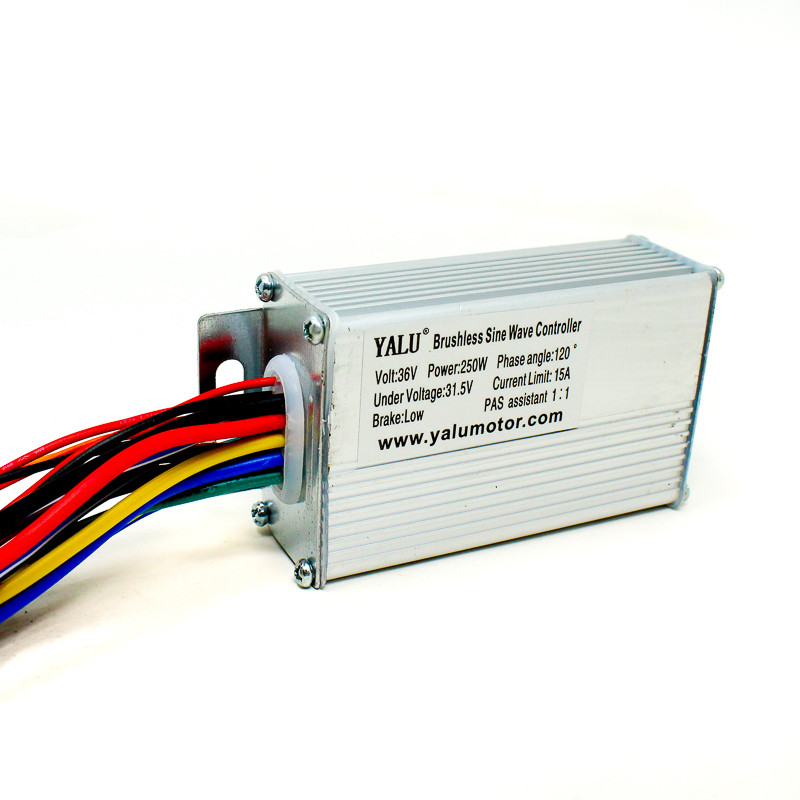

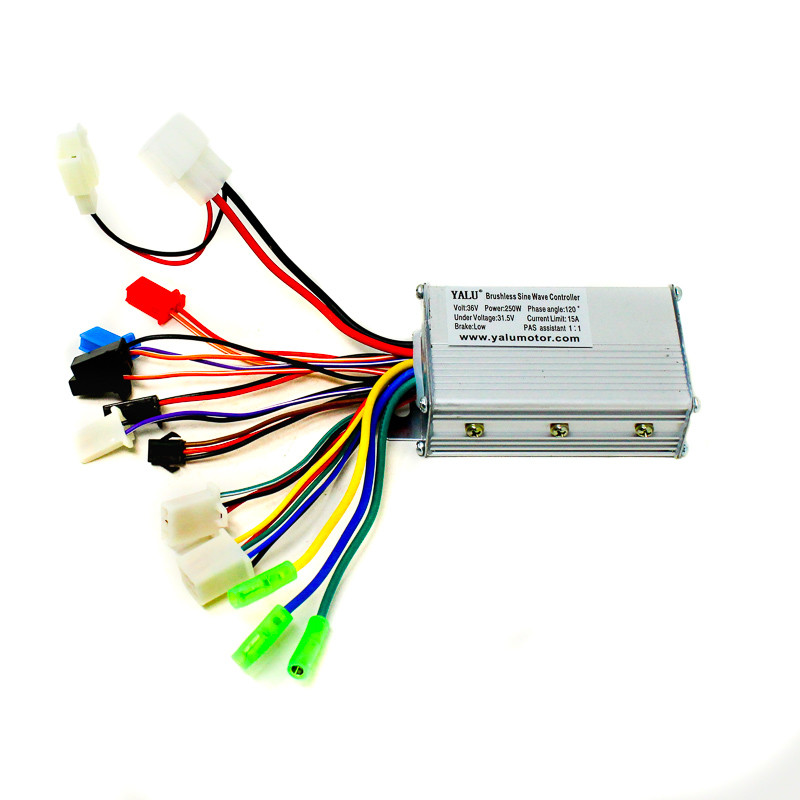

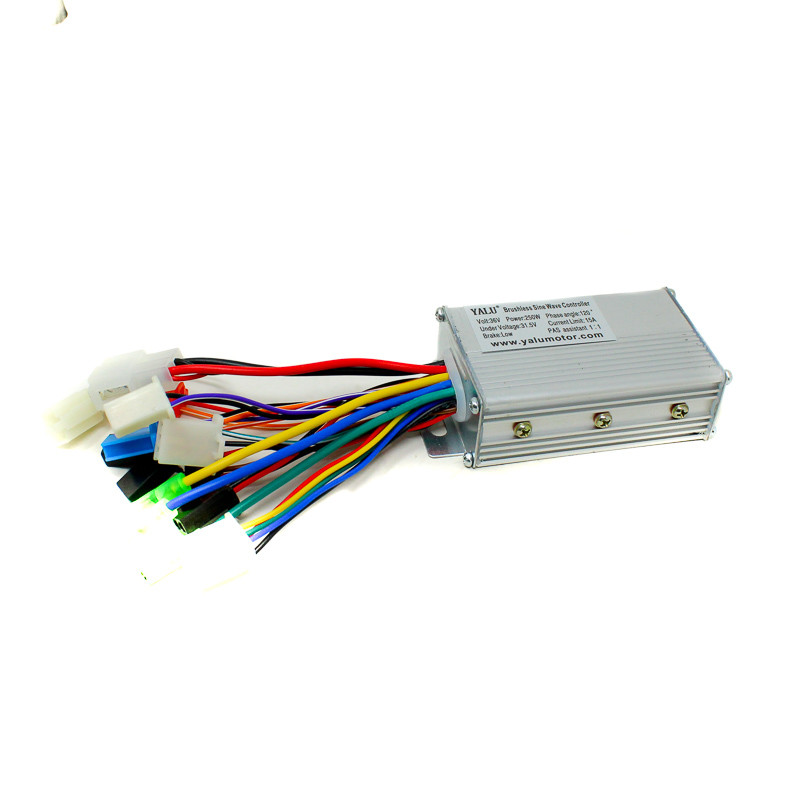

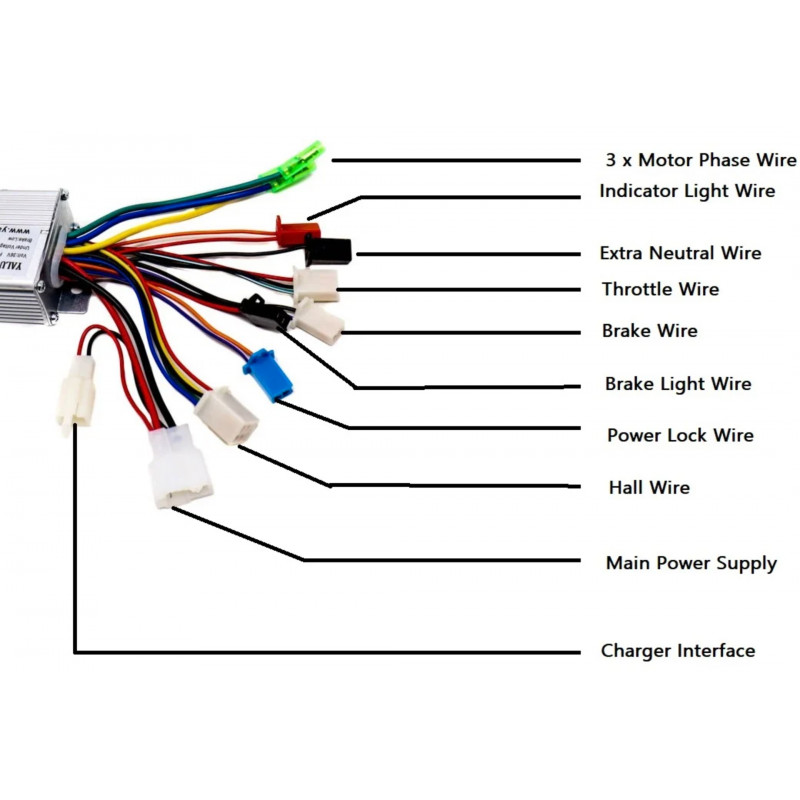

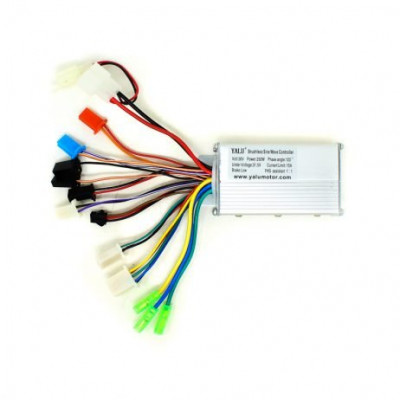

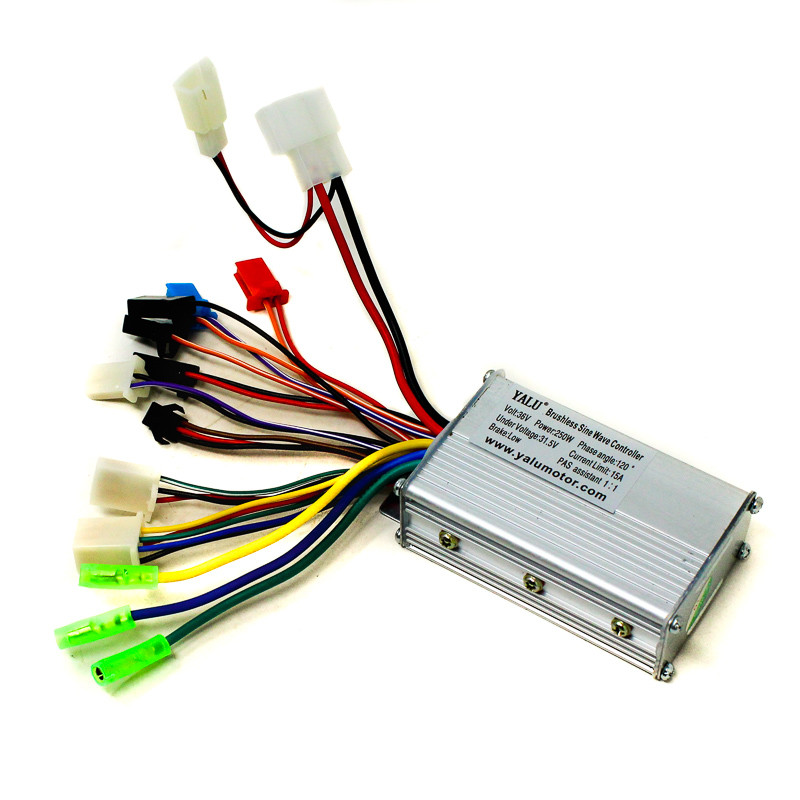

This is a motor controller suitable for 250W Hub Brushless Motor. This Motor Controller has an operating voltage range of 31 to 36V up to 15A operating current for a 250W brushless motor. It includes attachments for the motor, accelerator, brake, battery, battery charging, brake light, power lock.
Features:
- Automatic identification of the Phase angle of 60 degrees and 120 degrees.
- Select the corresponding voltage controller according to the voltage battery level of your electric vehicle.
- It is a brushless controller for an electric bicycle electric scooter.
- Anti-coast overcurrent protection.
- Built-in smart chip more stable start in Hall-free state.
- Special function motor matching better effect.
Package Includes :
1 x Ebike Brushless Sine Wave Motor Controller 36V for Hub Motor 250W
Specifications :-
| Compatible Motor | Hub Motor |
| Body Material | Aluminium |
| Cable Length (cm) | 15 |
| Current Limit (A) | 15 |
| Rated Voltage (V) | 31 to 36 |
| Rated Power (W) | 250 |
| Phase Angle | 120 |
| Length (mm) | 100 |
| Width (mm) | 50 |
| Height (mm) | 30 |
| Weight (gm) | 213 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 2087.42 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Ebike Brushless Sine Wave Motor Controller 36V for Hub Motor 250W
- Product Code: EC-8373
- Availability: 16
-
Rs.1879.00
- (Excluding 18% GST)
