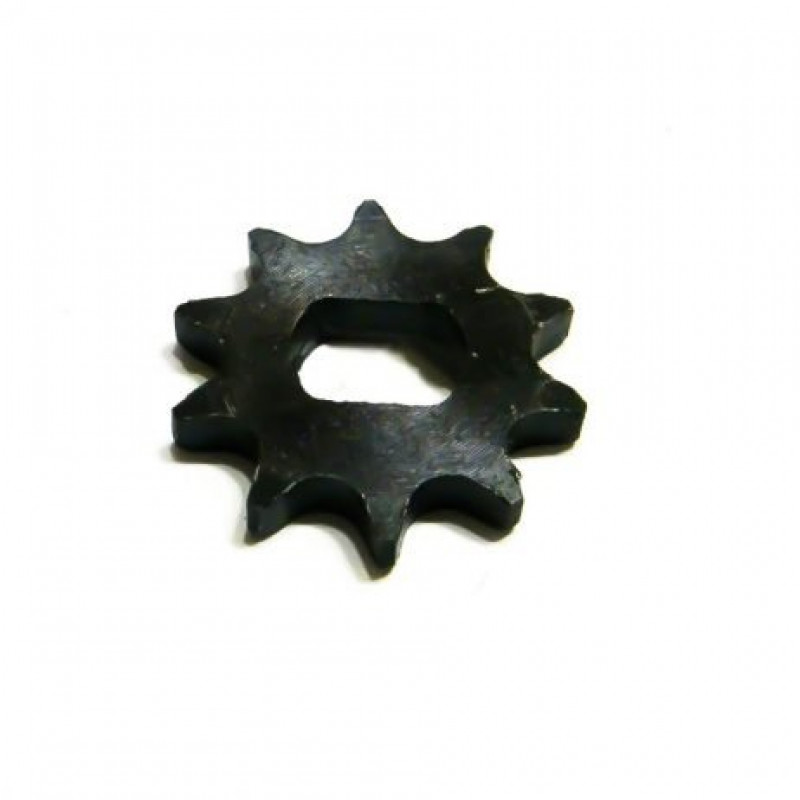

  • Ebike Default Pinion 10T for MY1020Z

E-bikes generally combine both pedal-assist sensors as well as a throttle. Some electric bikes have an electric motor that operates on a power-on-demand basis only. In this case, the electric motor is engaged and operated manually using a throttle, which is usually on the handgrip just like the ones on a motorbike or scooter.

A major disadvantage of modern E-Bike systems is that they subject to complex transmission components to increased forces. Gearshift comfort and durability of the drive both suffer as a result. The ideal sequence is the propulsive effort of the rider first to be transmitted through the central Pinion gearbox and then boosted as required by an electric motor. This means the gearbox components are not exposed to additional forces and have a consistent level of precision. This also retains the low wear on sprockets, chains and toothed belts that is a typical feature of Pinion.

Note: The Pinion gear is 10 tooth sprocket, it is used for Motor MY1020Z. Please make sure the size of your motor before you place the order.


Features:

  1. 100% Brand new and high-quality product
  2. Efficient and Long-lasting
  3. Improves efficiency of Sprockets, chains, and toothed belt


Package Includes:

1 x Default Pinion 10T for E-Bike Motor MY1020Z



Specifications :-

Teeth

10T

Circular pitch(mm)

14

Suitable for default motor

MY1020Z

Inner diameter(mm)

17(inner diameter), 12(inner width)

Outer diameter(mm)

46.4

Face Width(mm)

3.2

Pinion Circular Pitch Diameter(mm)

39.5

Weight(g)

36


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 423.62 (Inclusive of all Taxes)
