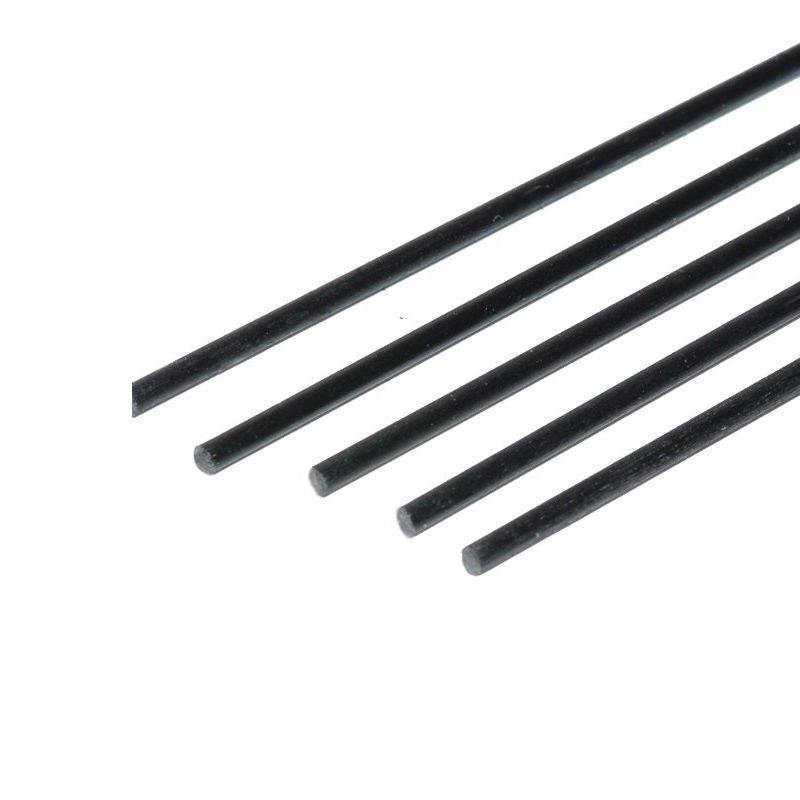

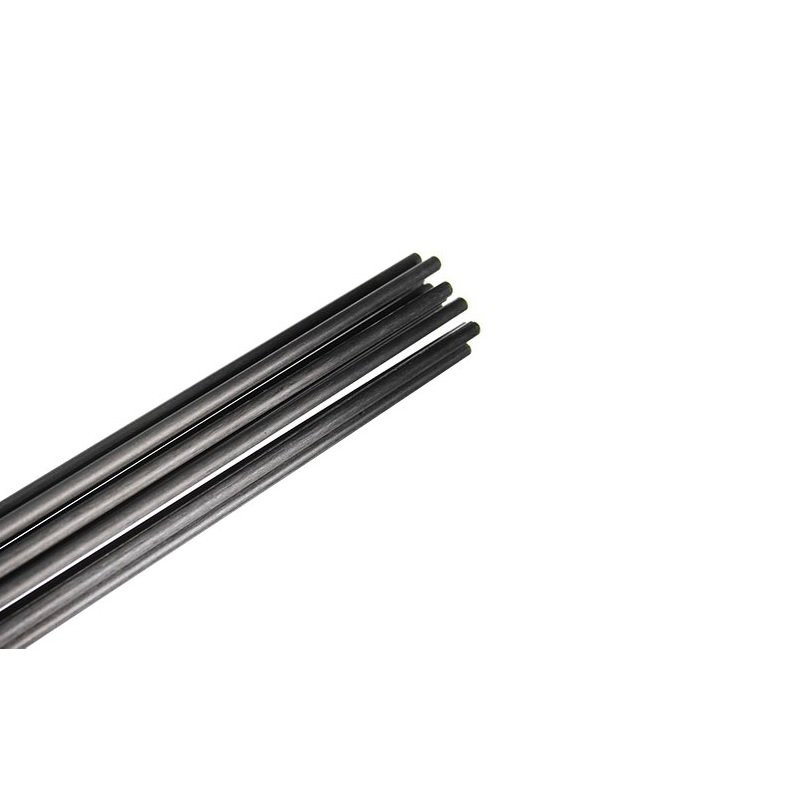

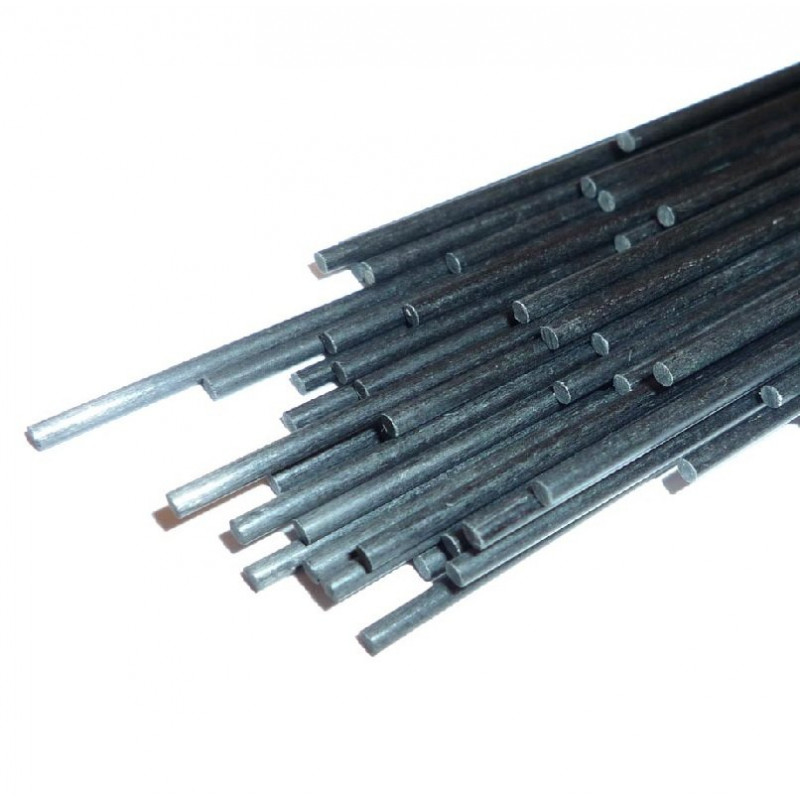

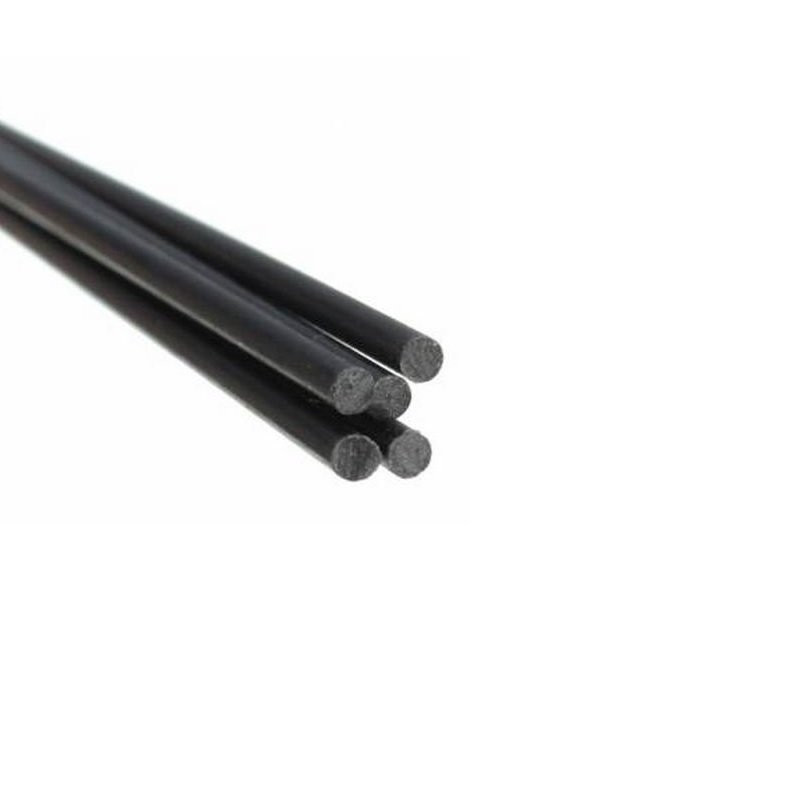

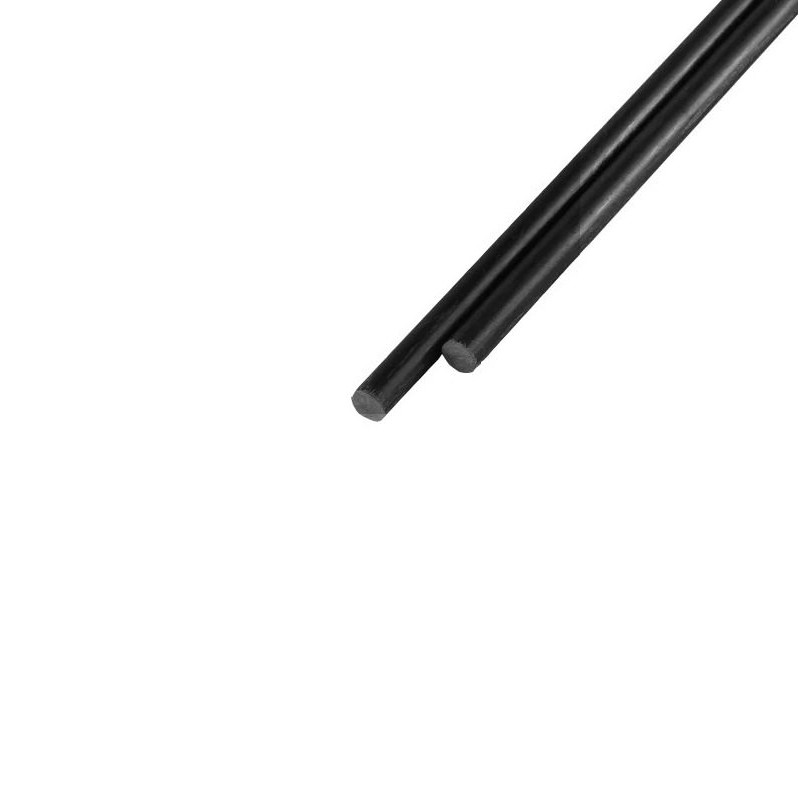

Pultruded carbon fiber rod(Solid) 4mm x 1000mm offer extremely high strength and stiffness because they contain 95% unidirectional carbon fiber running longitudinally. Carbon Fiber Solid Rods are made from continuous carbon fibres in a resin matrix of either vinyl-ester or epoxy.
Carbon fiber rod is used in a wide range of applications including aerospace and motor racing but perhaps its most common use in recreational sports equipment like kites and radio-controlled models.
Pultrusion :
Pultrusion is a method of manufacturing continuous lengths of a fibre-reinforced section by pulling continuous strands of carbon fiber through resin and a former before curing the resin all in one process.
Features:
- Made of Carbon Fiber material
- Very Strong and Light
- high strength and stiffness
- Very high Rigidity
- very low coefficient of expansion
Package Includes:
1 x Pultruded Carbon Fiber Rod (Solid) 4mm x 1000mm
Specifications :-
| Fiber Volume | Approx. 65% |
| Fibre density | 1.4 1.8 g/cm3 |
| Production Glass Transition Temperature | 150C~190C |
| Thermal Expansion Coefficient | small |
| Weight (gm) | 17 |
| Resin glass transition (Tg) | 170 C |
| Youngs Modulus | 230 GPA |
| Outer Diameter (OD)(mm) | 4 |
| Length (mm) | 1000 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 329.22 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Pultruded Carbon Fiber Rod (Solid) 4mm x 1000mm
- Product Code: EC-8322
- Availability: 51
-
Rs.362.00
- (Excluding 18% GST)
