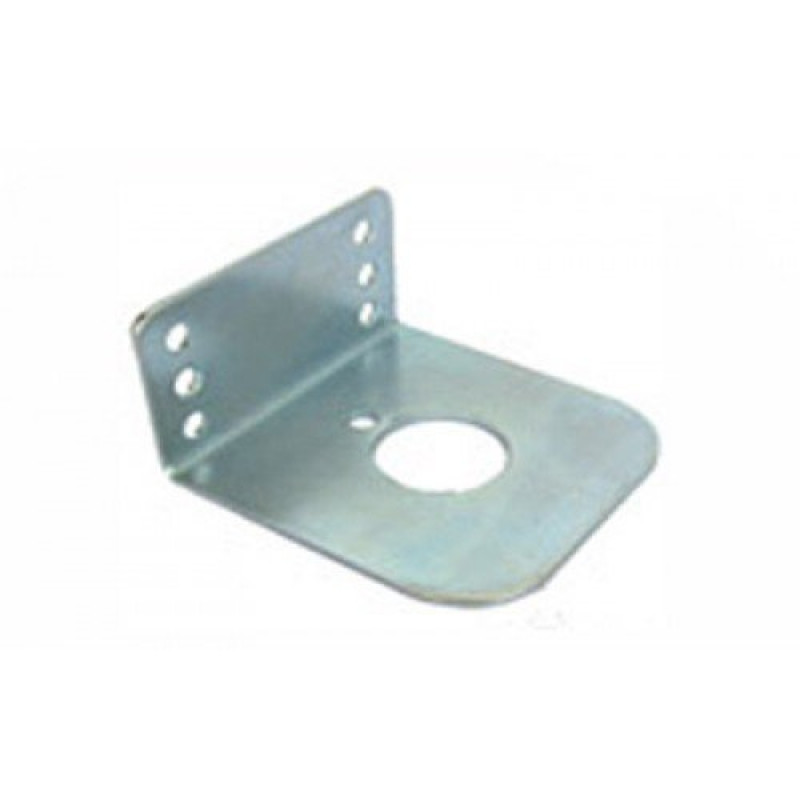

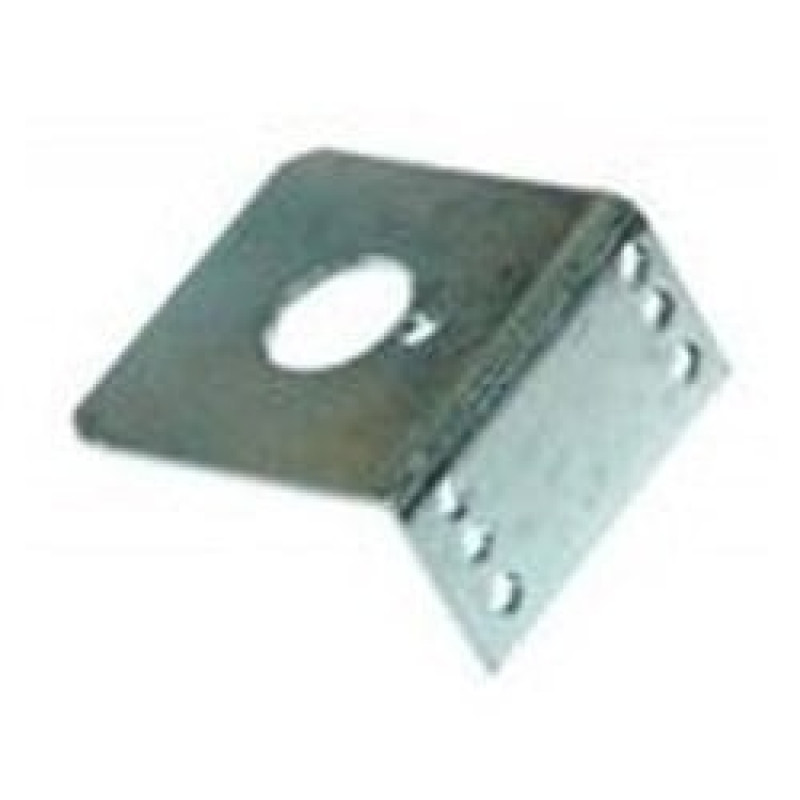

This motor mounting bracket is designed for Center Shaft Gear Motor to make the motor mounting easier and faster.
The clamps serve as the fundamental parts when it comes to chassis. With this Center Shaft Gear Motor L Clamp (Bracket) motor mounting will become very convenient.
This L Clamp bracket for Johnson Gear Motor is made up of 2mm thick Mild Steel which gives them excellent strength and stability. It has 13.5mm diameter holes for attaching the motor to the bracket and also 3mm diameter holes for mounting the bracket to the chassis or application.
Note: We haven't included any Center Shaft DC Geared Motor in this pack, buy them separately at Robu.in online shop
Applications :
- DC motor position / velocity control
- Position and velocity servomechanisms
- Factory automation robots
- Numerically controlled machinery
- Computer printers and plotters
Motor mounting side
- Height: 40 mm
- Width: 40 mm
Bracket mounting side
- Length: 40 mm
- Width: 24mm
Features :
- Good Quality mounting brackets.
- Made up of good quality MS.
- Specially designed for Center Shaft Gear Motor.
- Possess good stability and durability.
Package Includes :
1 x Center Shaft Gear Motor L Clamp (Bracket)
Specifications :-
| Motor Type | Center Shaft DC Geared Motor |
| Material | Mild Steel |
| Length (mm) | 23 |
| Width (mm) | 40 |
| Height (mm) | 40 |
| Motor Mounting Hole Dia. (mm) | 13.5 |
| Weight (gm) | 25 (each) |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 29.5 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Center Shaft Gear Motor L Clamp (Bracket)
- Product Code: EC-8468
- Availability: 2837
-
Rs.18.00
- (Excluding 18% GST)
