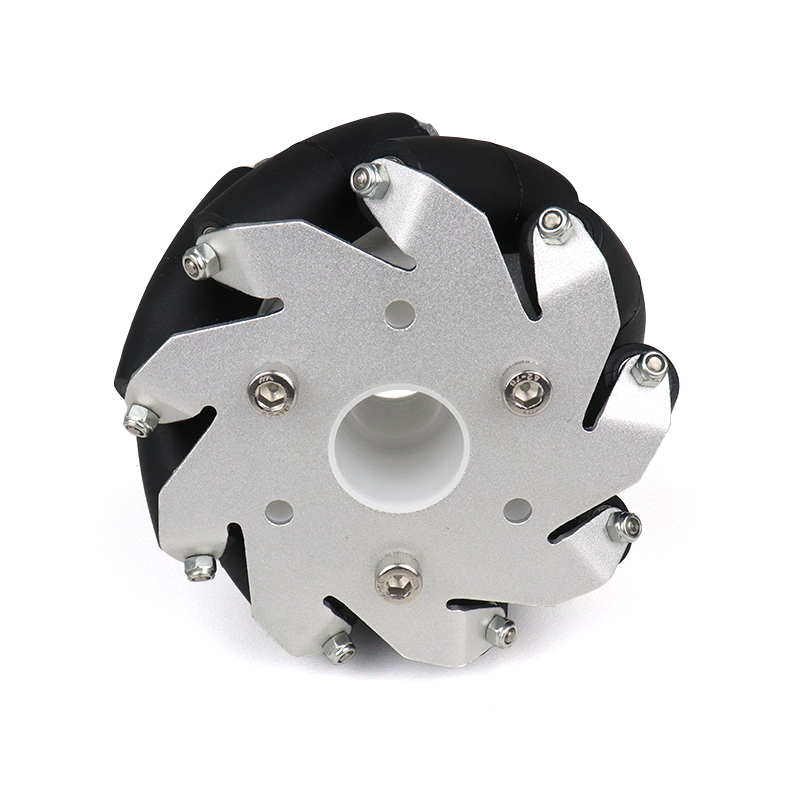

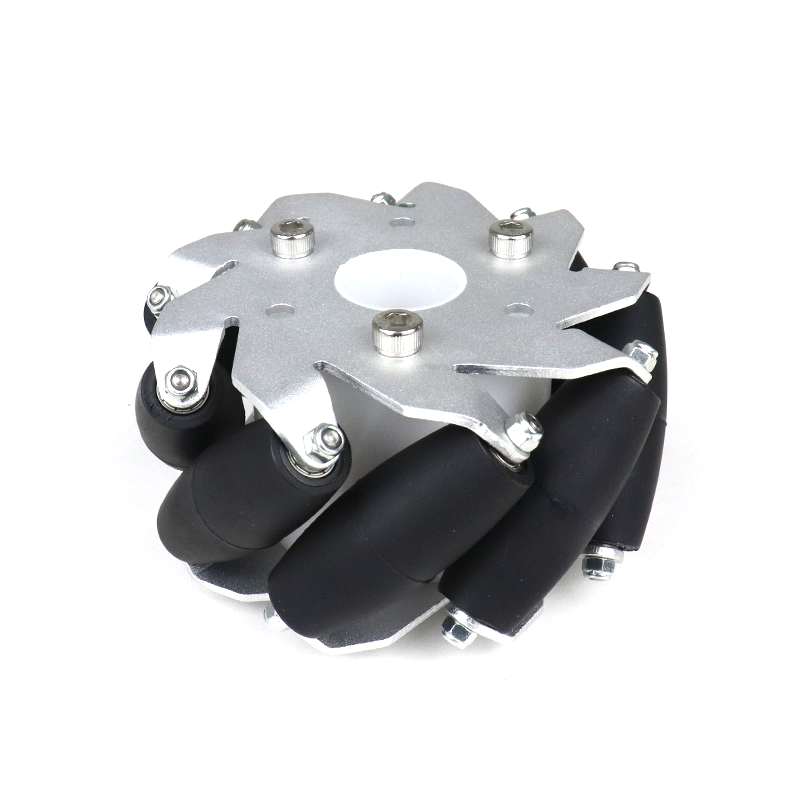

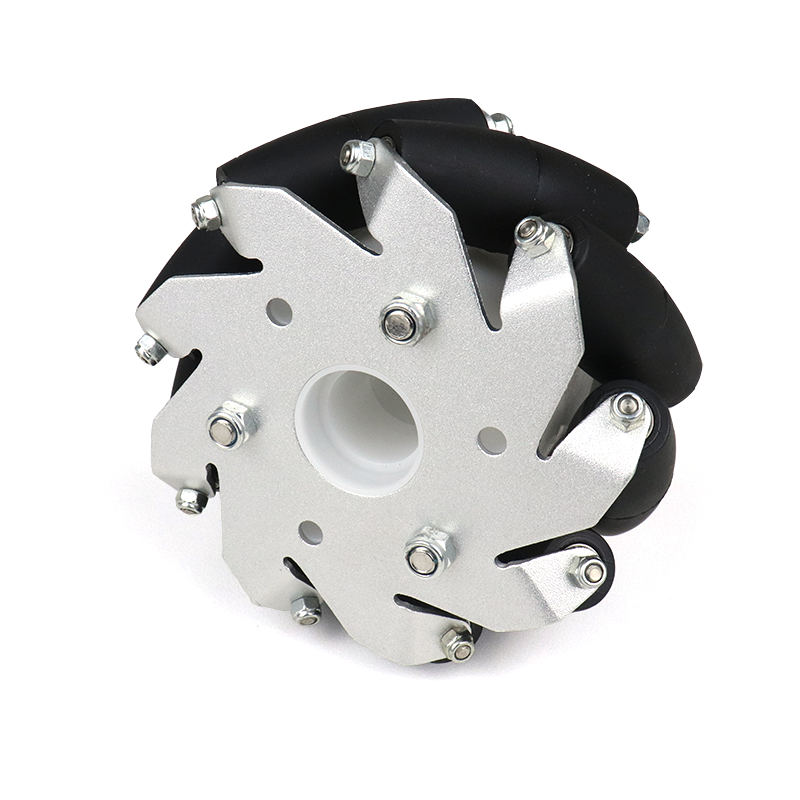

The 100mm Aluminum Mecanum wheels (Bearing type rollers) allow a robot to achieve omnidirectional movement while supporting large weights. The 4(100mm) Mecanum wheel utilize 9 rollers positioned between 2 plates. These mecanum wheels are usually designed for movement in any direction. The rollers translate the force in the rotational direction of the wheel to a force normal to the wheel direction.
Specifications and Features:
- Size: 4 (100mm) Diameter,
- Thickness of wheel: 45mm
- Weight: 340grams.
- Roller Material: Nitrile rubber
- Side plates: Aluminum(High-Grade alloy aluminum)
- Plate Thickness 2.5mm
- Bearing Type used: Single groove ball bearing, Double sealed.
- Holes for Mounting: PCD 47.5mm
- Diameter of Holes: 5mm (m5 bolt compatible)
- 100mm Aluminum mecanum wheels set (Left)
- Diameter of each wheel: 100mm
- Length of roller: 19mm
- Maximum load capacity: 15KG
- Number of rollers: 9
- Plates each wheel: 2
- Body material: aluminum alloy
- Roller material: rubber
- Spacer material: nylon
Package Includes:
1 x 100mm Aluminum Mecanum wheels (Bearing type rollers) LEFT

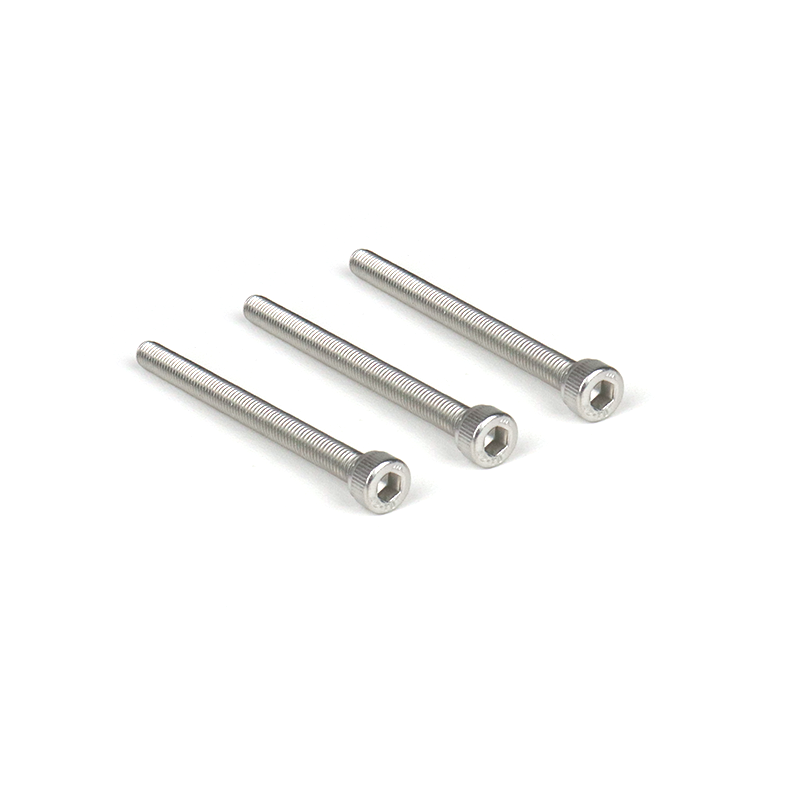

3 x m565 Allen Bolts for coupling
Specifications :-
| Roller Type | Bearing |
| Body Material | Aluminum |
| Holes for Mounting | PCD 47.5 mm. |
| Internal Diameter(ID)(mm) | 18 |
| Length of Roller (mm) | 47.5 |
| Load Capacity(Kg/Wheel) | 10 ~ 12 |
| Net weight (gm) | 400 |
| Number of Plates | 2 |
| Number of Rollers per Wheel | 9 |
| Outer Diameter (OD)(mm) | 100 |
| Roller Material | Nylon+ TPR |
| Spacer material | Nylon |
| Wheel Width (mm) | 54 mm |
| Plate Thickness (mm) | 2.5 |
| Diameter of Holes | 5 mm (M5 bolt compatible). |
| Nut Type | Hex |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 2996.02 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
100mm Aluminum Mecanum wheels (Bearing type rollers) LEFT
- Product Code: EC-8166
- Availability: 6
-
Rs.2645.00
- (Excluding 18% GST)
