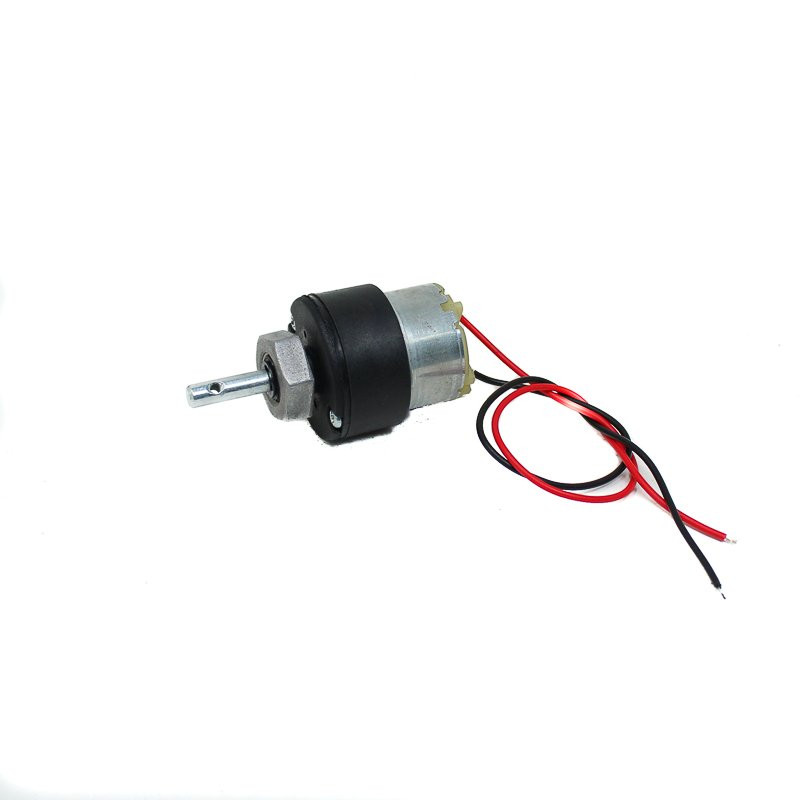

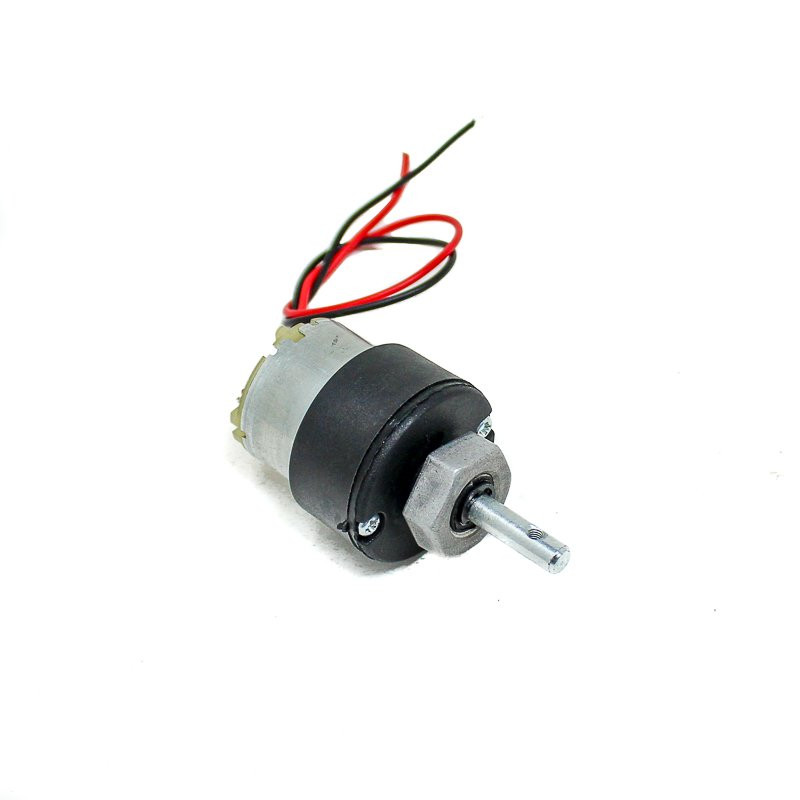

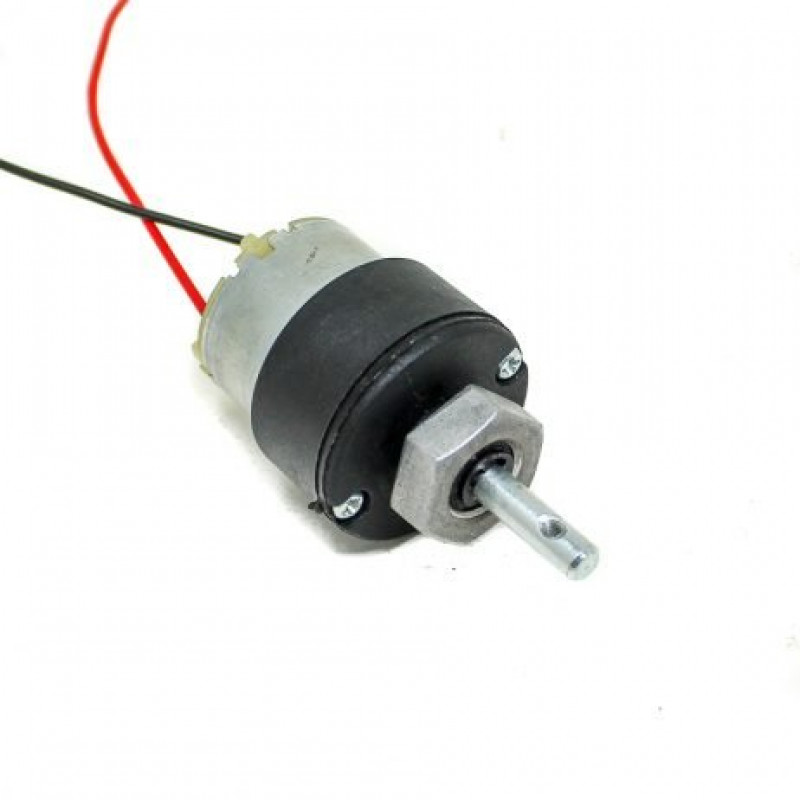

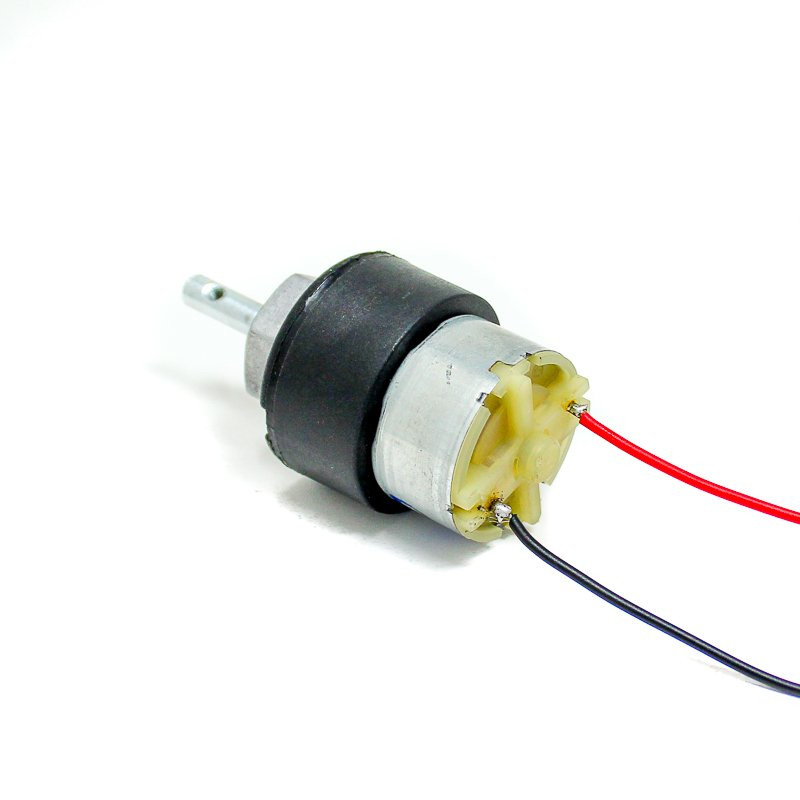

These motors are simple DC Motors featuring gears for the shaft for obtaining the optimal performance characteristics. They are known as Center Shaft DC Geared Motors because their shaft extends through the centre of their gearbox assembly.
These standard size DC Motors are very easy to use. Also, you don't have to spend a lot of money to control motors with an Arduino or compatible board. The L298N H-bridge module with an onboard voltage regulator motor driver can be used with this motor that has a voltage of between 5 and 35V DC.
This DC Motor 30RPM 12Volts can be used in all-terrain robots and a variety of robotic applications. These motors have a 3 mm threaded drill hole in the middle of the shaft thus making it simple to connect it to the wheels or any other mechanical assembly.

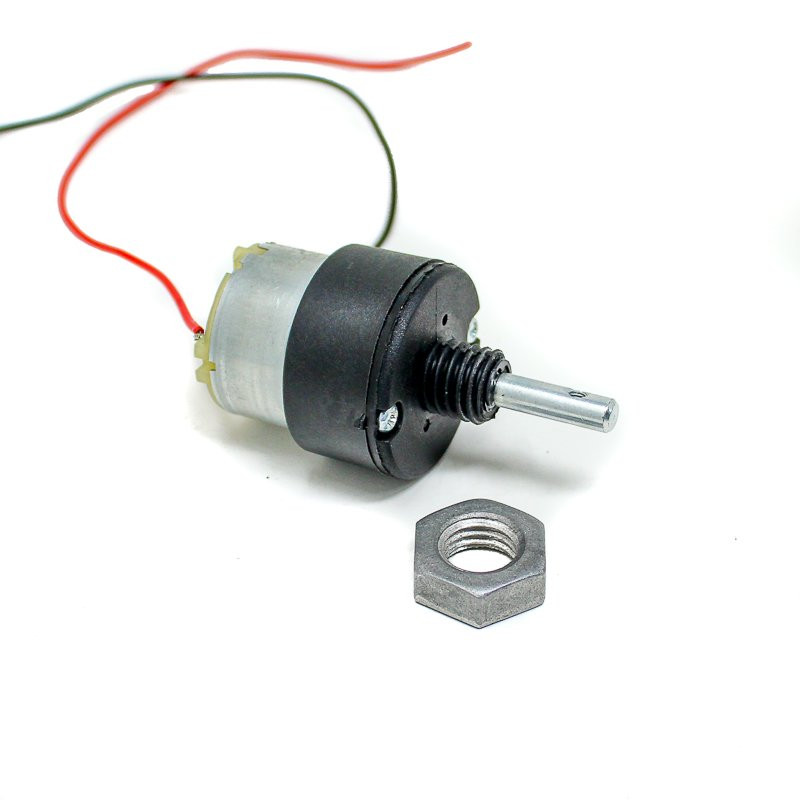

Nut and threads on the shaft to easily connect and internally threaded shaft for easily connecting it to the wheels.
Features :
- It comes with Good Quality Gears.
- The metal gears have better wear and tear properties.

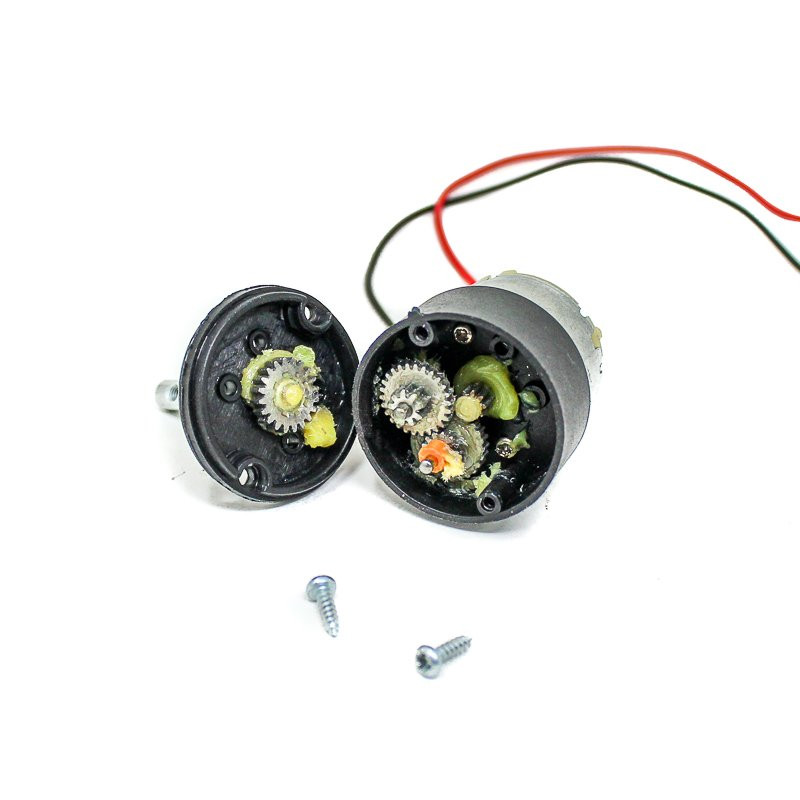

- The gearbox is sealed and lubricated with lithium grease and requires no maintenance.
- Although the motor gives 30 RPM at 12V, the motor runs smoothly from 4V to 12V and gives a wide range of RPM, and torque.
- The shaft has a hole for better coupling.
Package Includes :
1 x 30RPM 12V Low Noise DC Motor With Metal Gears Grade A
Specifications :-
| Gear Material | Metal |
| Rated Speed (RPM) | 30 |
| Operating Voltage (VDC) | 12 |
| Rated Torque(kg-cm) | 5.7 |
| Stall Torque(Kg-Cm) | 20.5 |
| Load Current Max (mA) | 300 |
| No-Load Current (mA) | 60 |
| Gearbox Diameter (mm) | 38 |
| Motor Diameter(mm) | 32 |
| Motor Length (mm) | 75 |
| Shaft Diameter (mm) | 6 |
| Shaft Length (mm) | 21 |
| Weight (gm) | 75 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.
30RPM 12V Low Noise DC Motor With Metal Gears - Grade A
- Product Code: EC-8718
- Availability: 42
-
Rs.211.22
-
-
Wholesale Pricing
Select Quantity Discount Price per piece 1 - 9 0% 211.22 10 - 24 3% Rs.205.32 25 - 49 6% Rs.199.42 50 - 99 8% Rs.193.52 100+ 11% Rs.187.62
