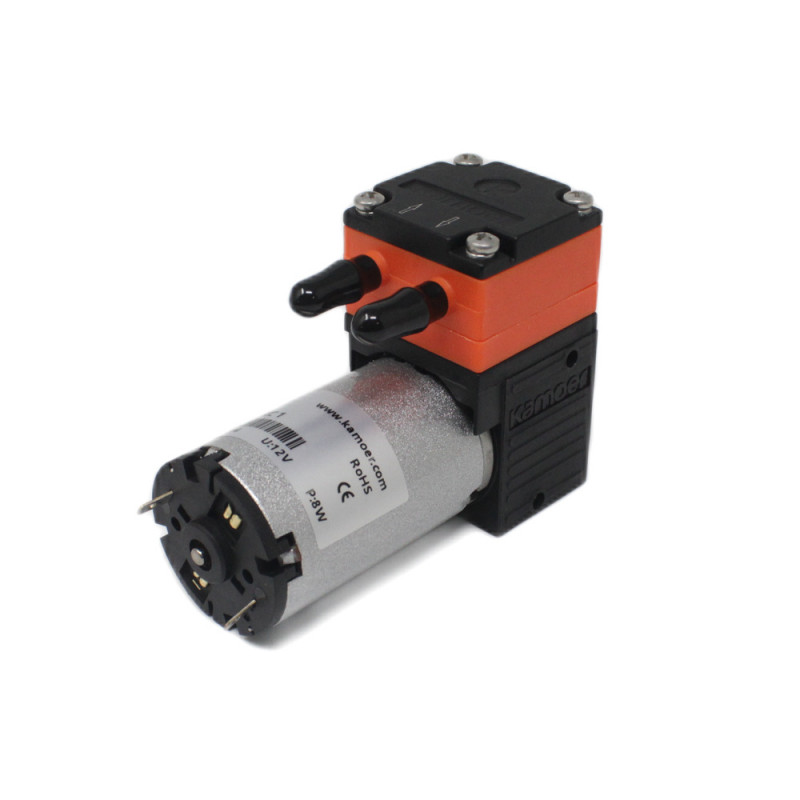

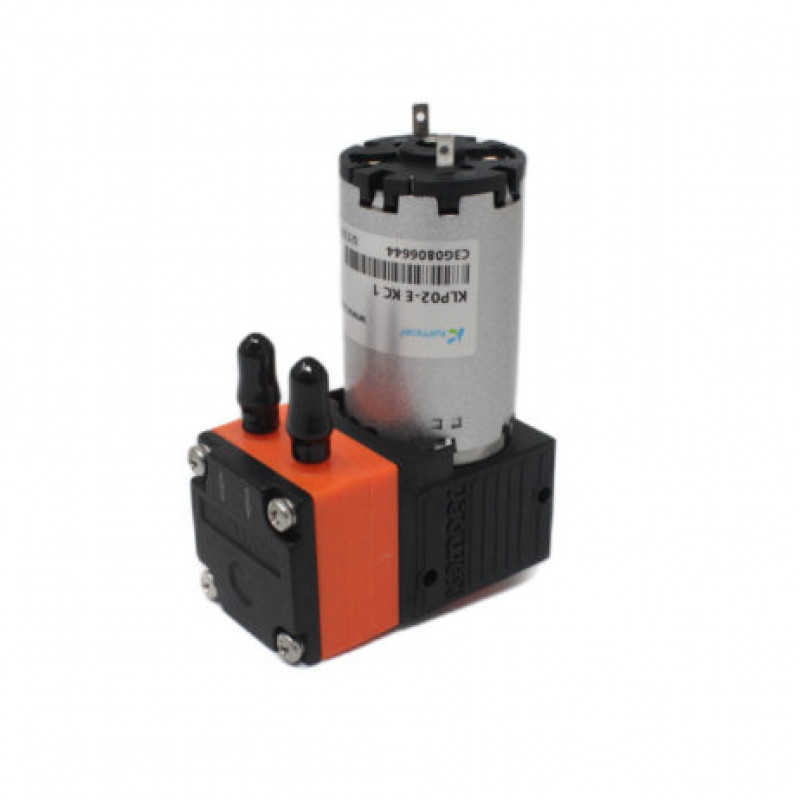

This is a Kamoer KLP02-E KC 12V Single Head Brushed Motor Diaphragm Pump.
KLP series micro diaphragm pumps from kamoer are based on a simple principle of the oscillating displacement pump, which is remarkably simple in design. The rotational power from the motors is converted into vertical movement by an eccentric gearbox. This motion is then transferred to a diaphragm by means of a connecting rod which is in conjunction with an inlet and outlet valve creates a pumping action.
The KLP02 type liquid pumps can be mounted in any position and can deliver up to 350ml/min operated on 12V.
Applications:
- Medical supporting equipment
- Liquid transport and sample analysis.
- Liquid packaging and distribution
- Wastewater sampling and transport
Note: Actual product can vary from above image
Features:
- Model: KLP02-E KC
- Self-Priming
- Low Power Consumption
- Long Life
- Compact Size
- Can Run in Dry Condition
- Low Noise Level.
Package Includes:
1 x Kamoer 12V 0.36A 350ml/min tube liquid diaphragm pump
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Kamoer KLP02-E KC 12V Single Head Brushed Motor Diaphragm Pump
- Product Code: EC-23739
- Availability: Out Of Stock
-
Rs.2630.00
- (Excluding 18% GST)
