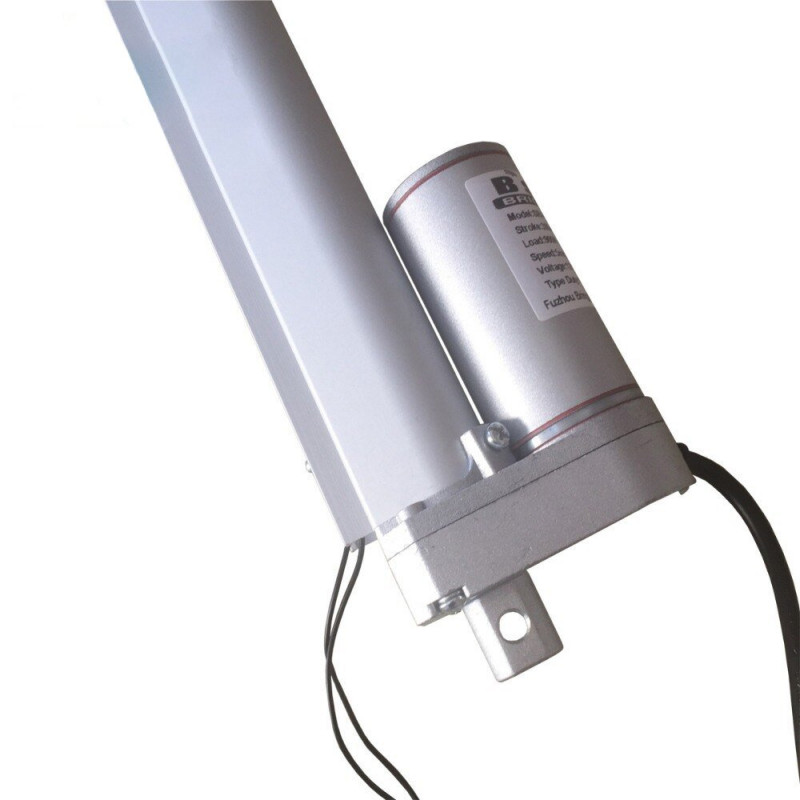

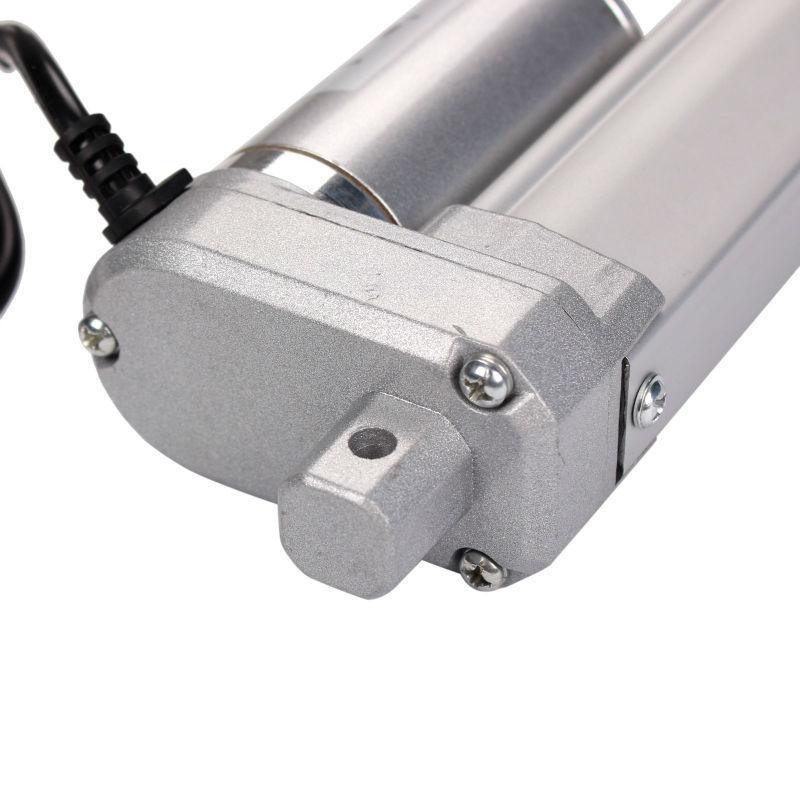

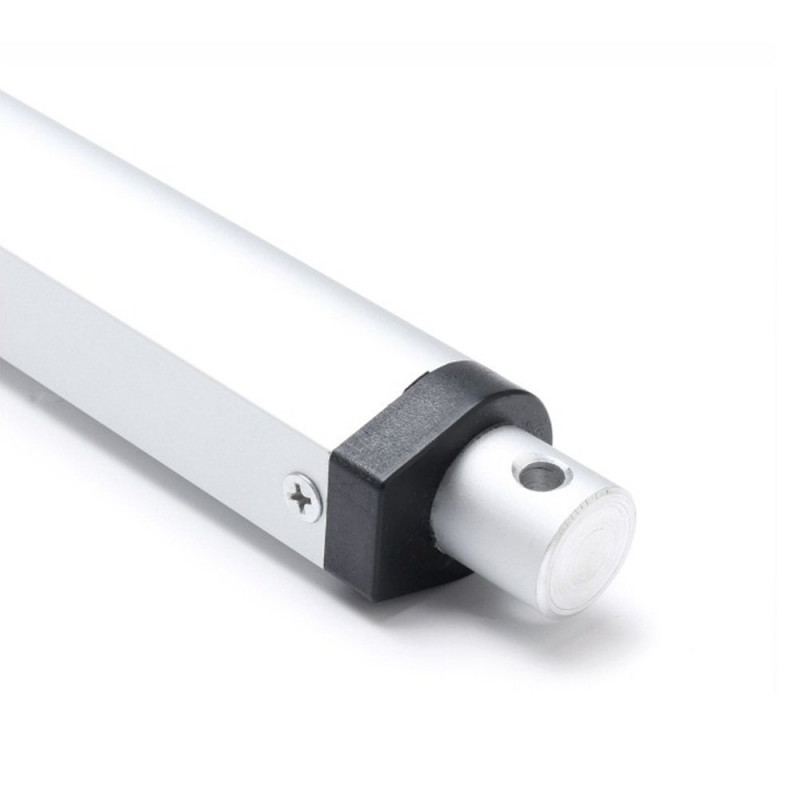

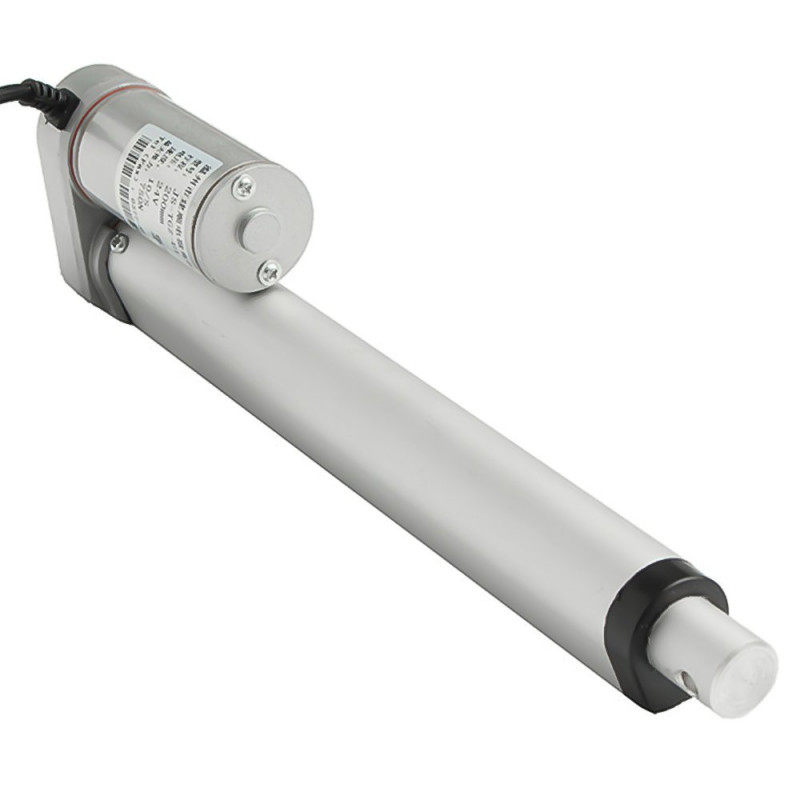

This Miniature Linear Actuator Stroke Length 200MM,7mm/S,1500N,24V is an electric push rod and an ideal solution for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo and many other applications. This electric push rod is a kind of electric driving device which transforms the rotary motion of the motor into the linear reciprocating motion of the pushrod. It can be used in a various simple or complex process. This electric push rod is a kind of electric driving device as executive machinery to realize remote control, centralized control or automatic control. The electric push rod is composed of the drive motor, reduction gear, screw, nut, guide sleeve, push rod, sliding seat, shell, micro-motion control switch, etc.


Note:

1. The actual product may vary in terms of colour and markings.

2. The following conditions can cause serious damage to the product.

1. Direct connect with AC power
2. Use in the above standard voltage environment
3. Push/Pull exceed the maximum value of the product show
4. The stroke did not finish, still with power, forced to cease.

3. The following conditions may shorten the product life.
1. High frequency operation
2. High temperature


Features:

  1. Aluminium frame and extension tube
  2. Compact Design
  3. Built-in Limit Switch
  4. Low Noise
  5. Moisture-proof Surface
  6. Long life: The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.
  7. Permanent magnet DC motor drive: Voltage 24VDC
  8. Self Locking Force: 1500N

Applications:
  1. Autos, solar tracking system, agricultural machinery, the wedding system, industrial electric lifting system
  2. The medical electric bed, surgical bed, traction bed
  3. Electric equipment: Electric sofa, Electric lifting lever, Electric booth, electric sunroof, etc;
  4. Chair for medical use: Electric wheelchair, massage chair, dental chair.
  5. Product Applications: TV lift tables, massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras and more.

Package Includes:

1 x Linear Actuator Stroke Length 200MM,7mm/S,1500N,24V



Specifications :-

Operating Voltage (VDC)

24

Maximum current draw

2A

Stroke Length

200mm (apprx. 8inches)

Operating temperature

-20C to +63C

Maximum static load

337.2 lbs. ( 1500 Newtons )

Protection Level

IP55

Mounting hole diameter (both ends).

1/4 (6.4mm)

Self Locking Force

1500N

Motor Diameter

36 mm

Speed at no load

0.28in/sec (7 mm /sec)

Speed at full load

0.22in/sec (5.5 mm/sec)

Noise level

45 dB

Length (mm)

32

Width (mm)

32

Height (mm)

78



Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 4478.1 (Inclusive of all Taxes)
